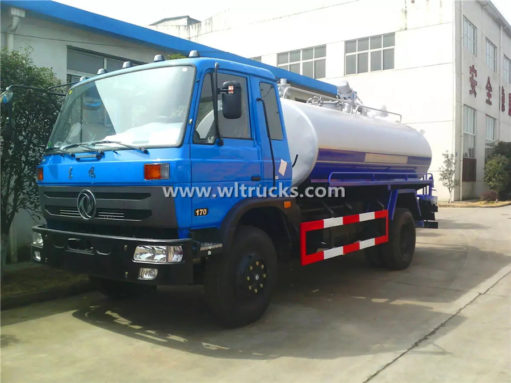

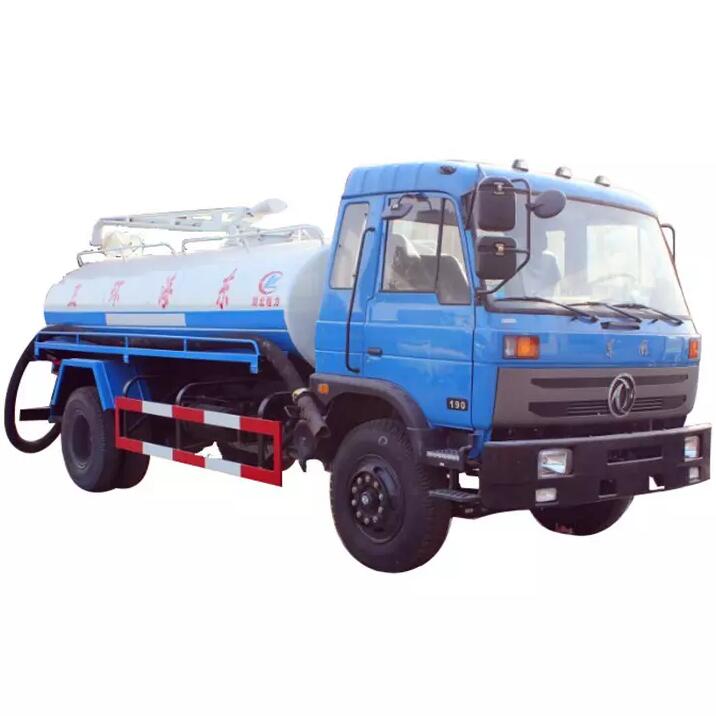

Dongfeng 10m3 to 15m3 vacuum Septic tank truck Specification:
Top configuration: tank volume 12000-15000 liters, WISCO Q345 automatic welding, wall thickness 5mm, head 6mm, standard SK-15 water ring vacuum pump, optional 8 tons two oil pump, large suction power, long suction range, self-priming and self-discharging.
Standard anti-overflow valve, fecal window, 1 spout at the rear of the tank, hand-washing device beside the tank, 360°rotating boom on the top of the tank, and a 8 meter fecal suction tube.
Optional configuration: optional float level controller, optional full electronic alarm, optional full automatic stop.
| Vehicle parameters | |||
| Vehicle name | vacuum Septic tank truck | ||
| Overall dimensions | 8010×2462×3300mm | Curb weight | 7670kg |
| Rated load weight | 8135 kg | Total weight | 15990kg |
| Chassis parameters | ||||
| Chassis model | EQ1168KJ | Chassis brand | DONGFENG | |
| Maximum speed | 90km/h | Wheel base | 4500mm | |
| Front axle/ rear axle | 5T/10T | |||
| Chassis Manufacturer | Dongfeng Motor Company | |||
| Cab | Configuration | allowable 3 passengers , cabin can be turned forward. With air conditioner | ||
| Color | Blue,other color is optional | |||
| Engine | Model | B190 33 / 140KW | ||
| Emission | Euro 3 | |||
| Rated power | 190hp | |||
| Displacement | 5900ml | |||
| Manufacturer | Dongfeng Engine Co., Ltd. | |||
| Tire | Size | 10.00-20/6 | ||
| Number | 6+1 nos | |||
| Drive form | 4X2 | |||
| Transmissions | 8 gearbox gear | |||
| Steering device | Power assisted steering | |||
| Steering wheel | Left hand drive | |||
Fecal suction truck Working parameter
| Extraction efficiency | Single full pumping≤5min | Sewage efficiency | After a single row is ≤4min |
| Horizontal suction | 40-60 meters | Vertical suction | ≤8m |
| Control method | Electric control + manual control | Operating position | Cab + front of tank |
Septic tank truck Working parameter New craft：
Optional configuration

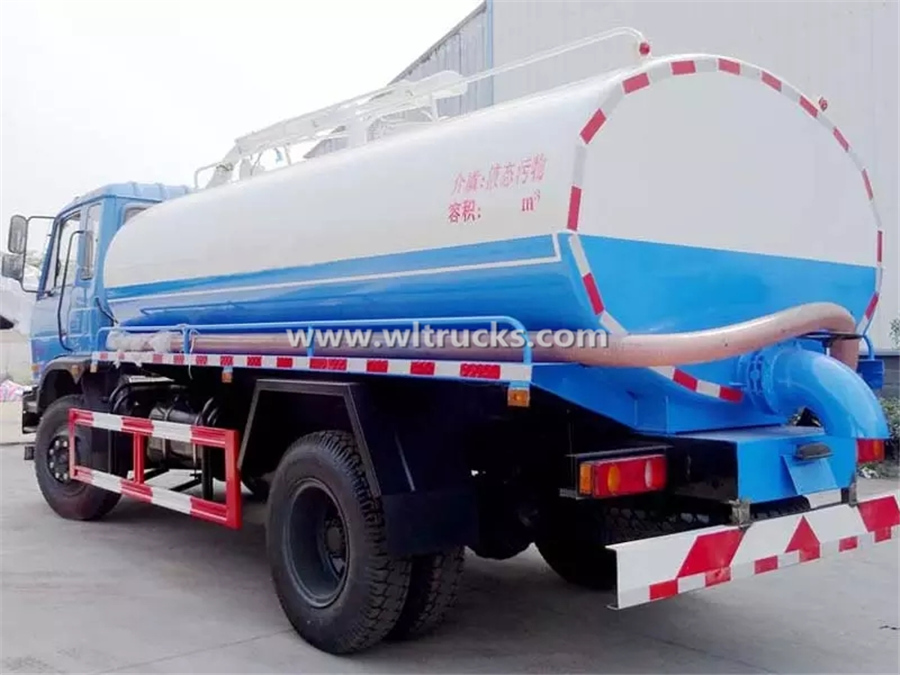

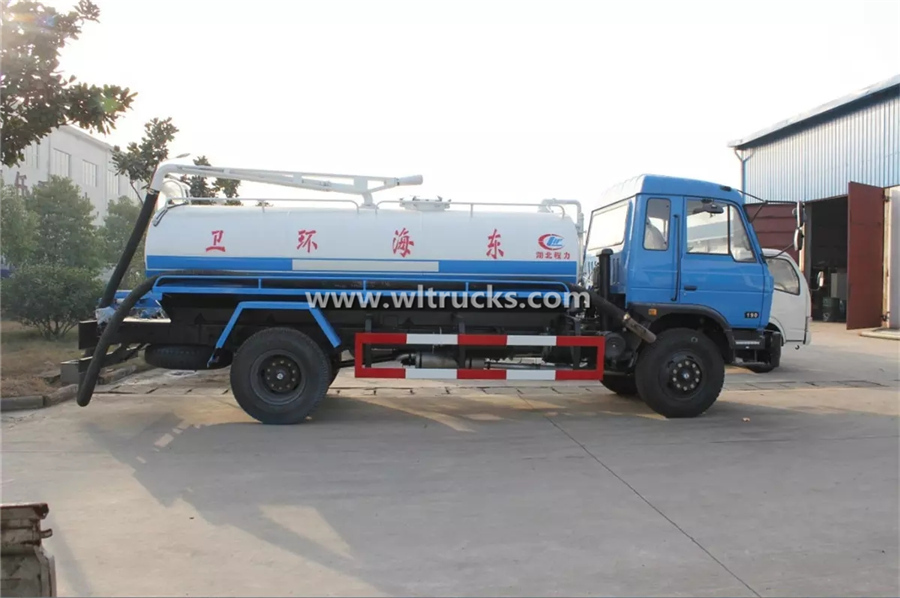

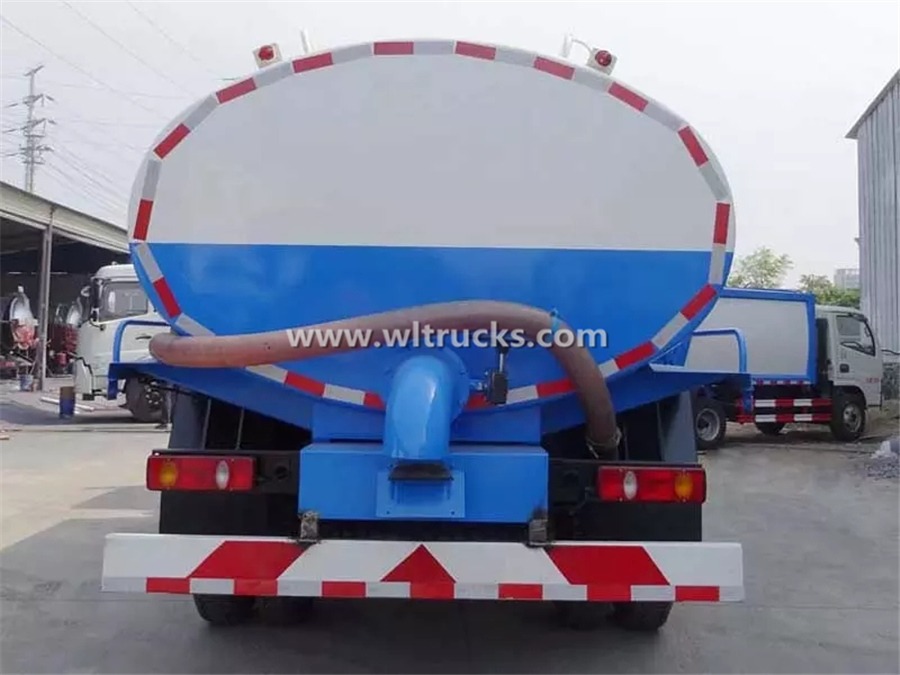

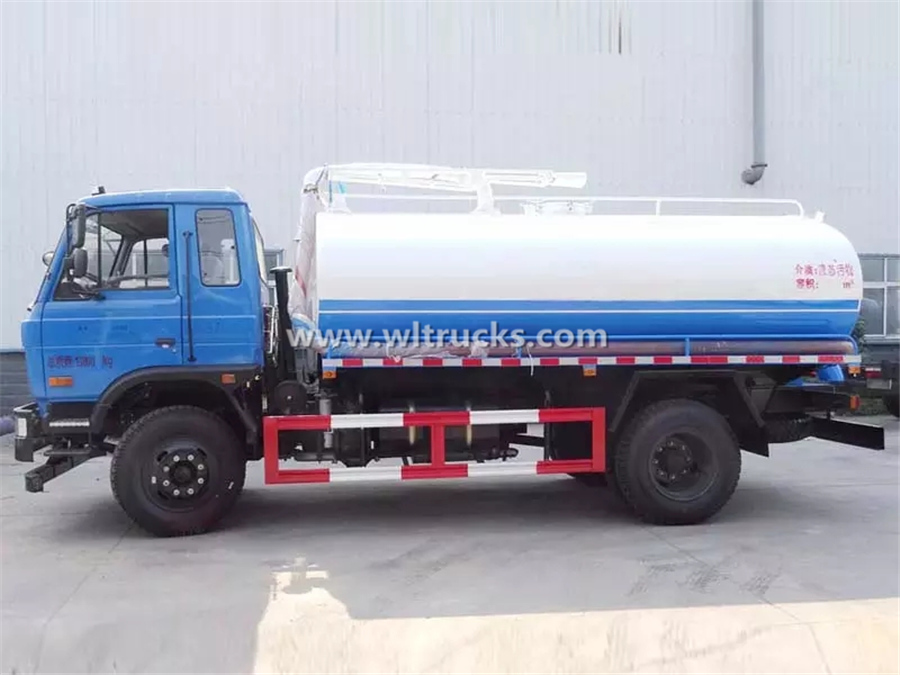

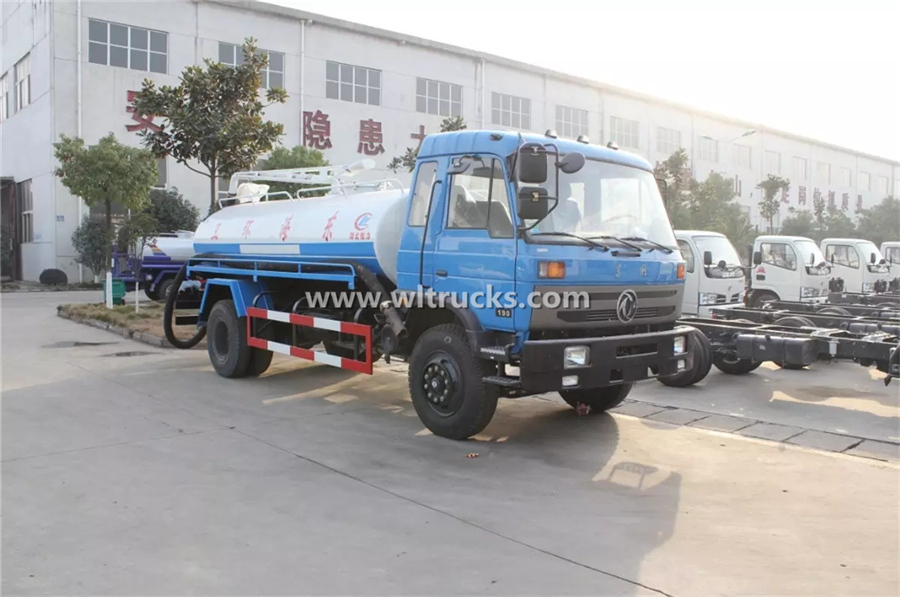

Toilet suction truck Detailed image
