KAMA 4×4 4WD led video display truck Vehicle model CLW5040XXCK5, appearance size (mm): 5995*2100*3050mm, cargo box size (mm): 4150*2000*1950mm, Euro 3 Xichai 95 horsepower engine, optional single-sided color screen, double-sided color screen, Three-sided color screen, additional screen lifting, hydraulic stage and other configurations.
Product advantages:
1. P6,P8 and P10 full color led screen for optional, meet all customer’s requirement.Brightness can be adjusted automatically according to different surroundings
2. Side screen can be lifted 1.5m for stage performance,good visual effect，Multi-media Control System.High definition 15625pixels/sqm, good uniformity, HD nice video advertising effect.
3. Double color scrolling marquee on the rear door.Equipped with high quality play devices. perfect listening effect.
5.Super-silent generator, save electricity, environmental protection.Luxury wood floor with plastic flooring.
6.LED Screen takes imported EPISTAR chips,automatically control open&close. High level of illumination, waterproof IP65 anti-corrosion& oxidation resistance, long life-span, and high refresh frequency , and easy to maintain.
7. DIP LED encapsulation confirm the high brightness even under strong sunlight.
KAMA 4×4 4WD led video display truck Specification:
| Vehicle name | Kaima LED advertising car | Wheelbase ( mm ) | 3300 |
| Engine | Xichai 95hp | Chassis model | KMC1042A33D5 |
| Environmental Notice | Have | Dimensions (mm) | 5995*2100*3050 |
| Fuel type | Diesel | Cargo box size (mm) | 3200*1690*1850 |
| Total mass (kg) | 4495 | Tire specifications | 7.50R16LT 6PR |
| Curb weight (kg) | 4300 | Rated passenger | 2 (including driver) |
| engine model | SD4D25R-70 | Displacement (ml) | 2545 |
| Main screen selection | |||
| Type | Length | Area | Imitation standard |
| Outdoor HD P6screen | 3840mm*1728mm(standard) | 6.63m2 | 192mm*192mm |
| Outdoor HD P5screen | 3840mm*1760mm | 6.8㎡ | 320mm*160mm |
| Outdoor HD P4screen | 3840mm*1792mm | 6.88m2 | 256mm*128mm |
| Top layout(standard) | |||
| Colored material: | All waterproof anti-vibration board outside high-definition screen | Single-color folding material: | Single-color screen |
| Electronic tile: | YujiaI4high-gradeconstruction | Gongfang: | Ii Tei Ganba |
| Musical product tile: | Manshou Da waterproof pillar | Ground material: | Copper flower anti-slip base plate |
| Ingredient material: | High temperature resistant glass plate | Box material: | 5CMcode steel box |
| Power system: | High-performance on-board silent sound generator | Control system: | Safety intelligence inside/outside network automatic switching |
| Medium control system: | 1000 trillion purple crystal seeder | Communication system: | Strong exhaust fan+exhaust gas |
| Generator Organization Performance Rate: | Selection: Single-use8KWgenerator, Twin-use15KWgenerator | ||
| Liquid pressure system: | Selection: High-precision electronic liquid pressure orbit Automatic | ||
| Liquid pressure stage: | Selection: Standard stage surface area10squaremeters(Kadasize16squaremeters) | ||
advertising car accessories display:
Outdoor LED HD color display:
Standard upper box configuration:
| ⑴Box material: | 5CM conforms to the steel frame box | ⑵ Interior materials: | Optional aluminum pattern plate or FRP | |
| ⑶Electronic control system: | Safe and intelligent internal and external network automatic switching | ⑷Ventilation system: | Power exhaust fan exhaust skylight | |
| ⑸Amplifier brand: | Yvette Broadcast Amplifier | ⑹Audio brand: | Wanda waterproof column | |
| ⑺ LED color screen: | Imported wick outdoor HD waterproof and shockproof | ⑻Monochrome subtitle screen: | Shenzhen Meiyadi P10 screen | |
| ⑼Screen cabinet: | Waterproof and heat-proof ventilation safety box | ⑽Screen power supply: | High temperature brand power box | |
| ⑾Roller light box: | 3C grade tempered glass + remote roller | ⑿ Screen cable: | Bold copper wire | |
| ⒀Hydraulic stage: | Optional 4-10 square meters | ⒁Lifting system : | Optional hydraulic lifting or electronically controlled lifting | |
| ⒂Media playback system: | Optional Amethyst, Nova, Carlet | ⒃ Floor material: | Optional wooden floor or aluminum pattern board | |
| ⒄Optional power supply system: | Optional generator or battery power supply | ⒅ Industrial control system: | Optional industrial control computer or video player | |
| ⒆External power supply: | Military fast interface and copper wire cable | ⒇Operating platform: | Optional fixed suspension cab operation | |
Optional parameter of LED screen(according to box dimension):
|
Wheelbase(mm)
|
Screen size
|
|
2765
|
P8:2304*1408=3.24m2,P6:2304*1345=3.1m2 |
|
2800
|
P8:2560*1536=3.93m2,P6:2496*1536=3.83m2
rear monochromatic screen:960*1280=1.64m2
|
|
2900
3070
|
P8:2304*1536=3.54m2,P6:2496*1536=3.83m2
rear monochromatic screen:960*1280=1.64m2
|
|
3300,3308,3360
|
P8:3840*1792=6.88m2,P6:3840*1728=6.65m2
rear monochromatic screen:1280*1440=1.84m2
|
|
3800
|
P8:4864*2048=10m2,P6:4800*2112=10.13m2
rear monochromatic screen:1600*1600=2.56m2
|
|
4700
|
P8:5376*2304=12.38m2,P6:5376*2304=12.38m2
rear monochromatic screen:1600*1600=2.56m2
|
advertisement publicity vehicle Field of use:
led tv screen truck Composition structure:

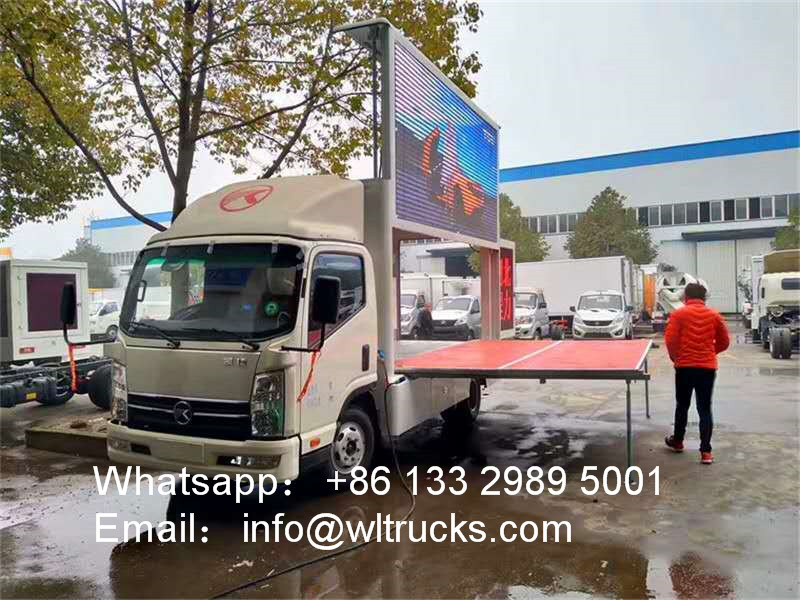

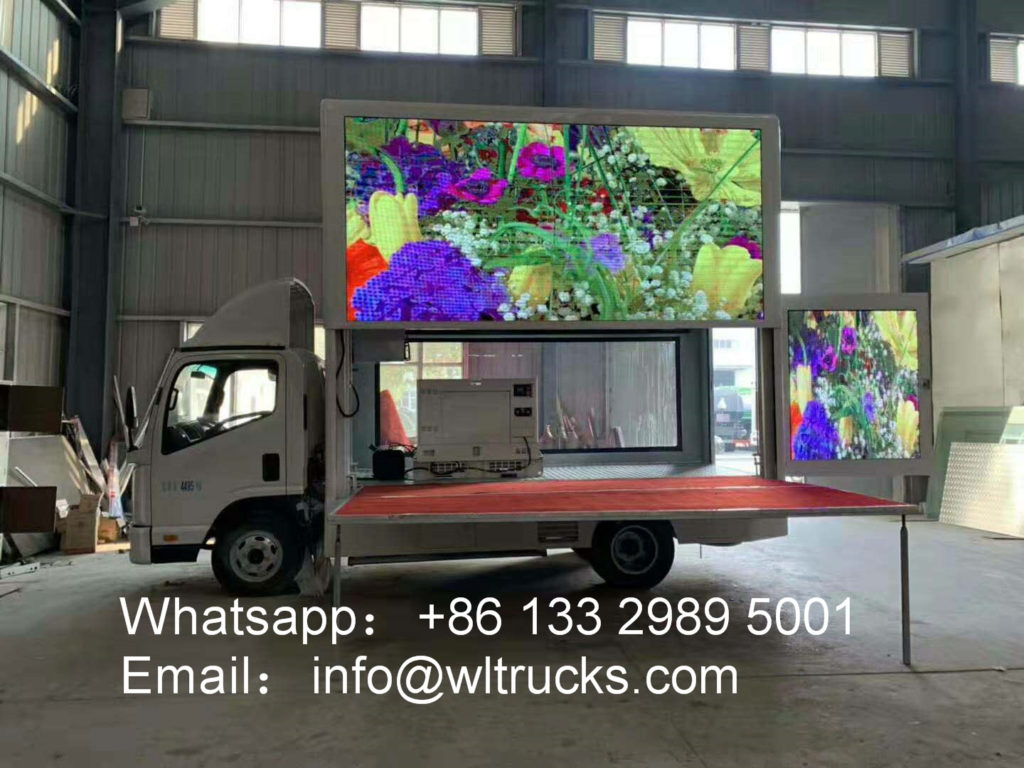

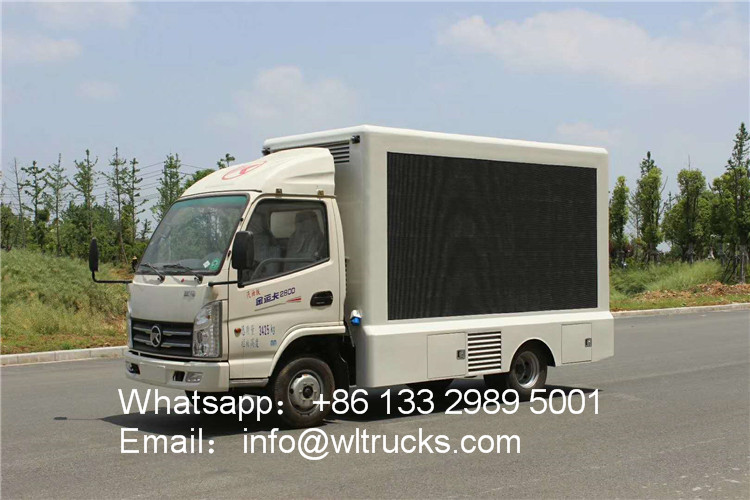

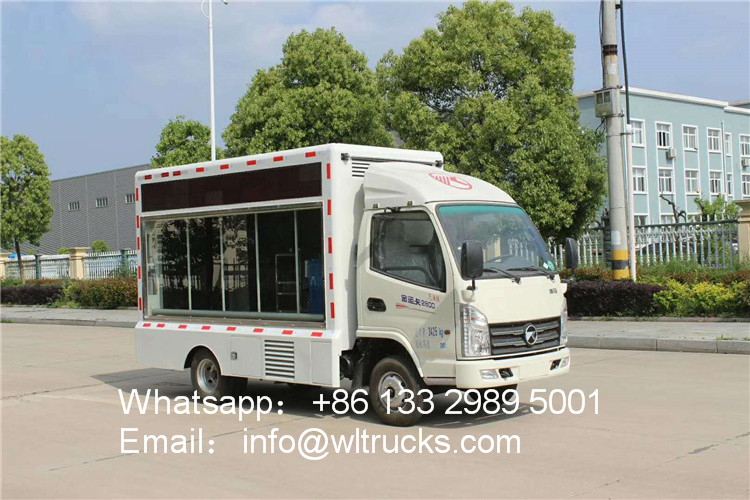

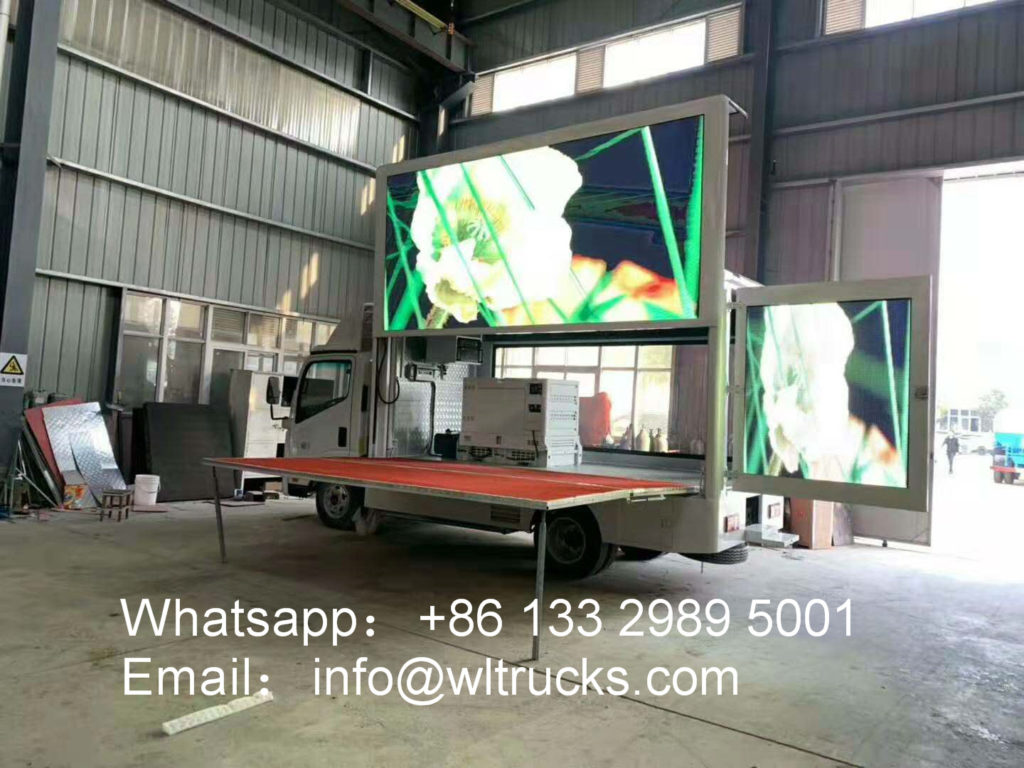

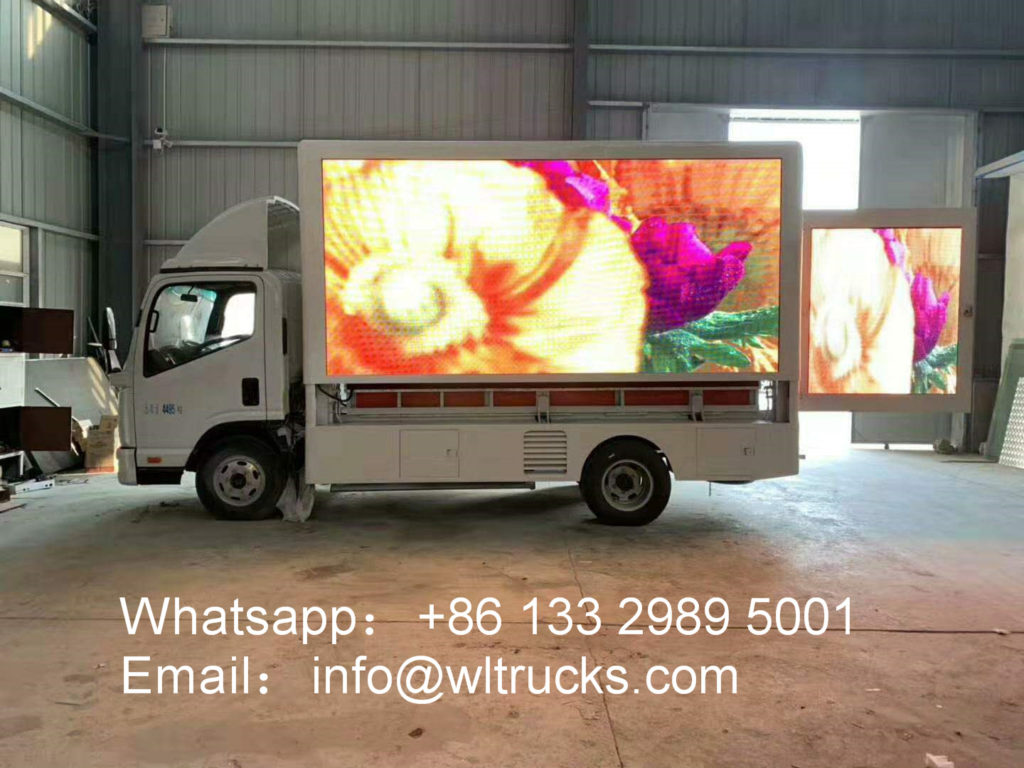

detailed picture:
led billboard truck Optional Type:
