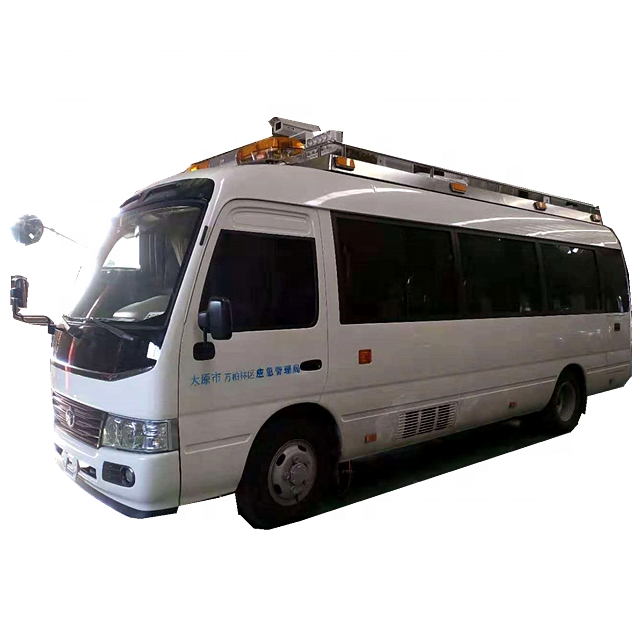

Japanese Toyota mobile medical ambulance bus
Japanese Toyota mobile medical ambulance bus Adopt Japan Toyota Chassis Euro 5 Toyota 100kw engine, the size of the whole vehicle is 5995x2036x2590mm, the wheelbase is 3100meters, 215/75R16LT tires.
Equipment include one portable stretcher, one medical locker, one oxygen bomb,two transfusion hooks, one sterilizing lamp, one sewage barrel, three single seats, preserve with two soft cushion, soft back and life belt, one aluminum alloy slid window, one top alarm lamp, two headlamps, one converter, one power jack, handrail,footstep, plastic floor, ambulance cross sticker.
specification:
| Cab | Cabin with air condition | |
| Chassis | Dimensions | 5250x2036x2590mm |
| Size of tyre | 215/75R16LT | |
| The number of tyre | 4+1(spare tyre) | |
| Maximum speed | 150Km/hr | |
| GVW | 3510kg | |
| Curb weight | 2500kg | |
| Rated capacity | 5- 9 peoples | |
| Wheelbase | 3100mm | |
| Engine | Brand | Toyota |
| Displacement | 2499ml | |
| Power | 100kw/136hp | |
| Fuel | Diesel | |
| Emission Standard | Euro 5 | |
| Stardard configuration | Transit type |
1. Portable folding stretcher;
2. One medicine cabinet;
3. One fixed installation oxygen cylinder;
4. Two infusion hooks;
5. One sterilamp;
6.one waste bin;
7. Two single seats;
8. One set long chair(2 seat cushion, soft back and seat belt);
9.one set middle partition with sliding window;
10. One set full blue warning lamp alarm on the top of the front;
11. Two 12V light lamps;
12. One inverter;
13.one group 220V power socket;
14. Medical wear-resistant plastic leather floor;
15. Sign the ambulance cross;
16. air conditioning and heater.
|
| ICU type |
1. Long line of rescue warning lights and all around flashing lights;
2. Automatic carriage stretcher;
3. Fold stretcher;
4. Oxygen supply system: oxygen cylinder and oxygen cylinder cabinet, quick interface;
5. Integral medical cabinet on the left;
6. Work seat, escort seat;
7. one sterilamp;
8. two infusion hooks;
9. one 1000W inverter;
10. External power supply system;
11. Ventilation fan;
12. two 12v lighting lamps;
13. two 220V power sockets;
14. one set of power control panel;
15. Middle partition with observation window;
16. flushable medical wear-resisting floor;
17.One waste bin;
18. Car body advertising and ambulance identification;
19. air conditioning and heater. |
|

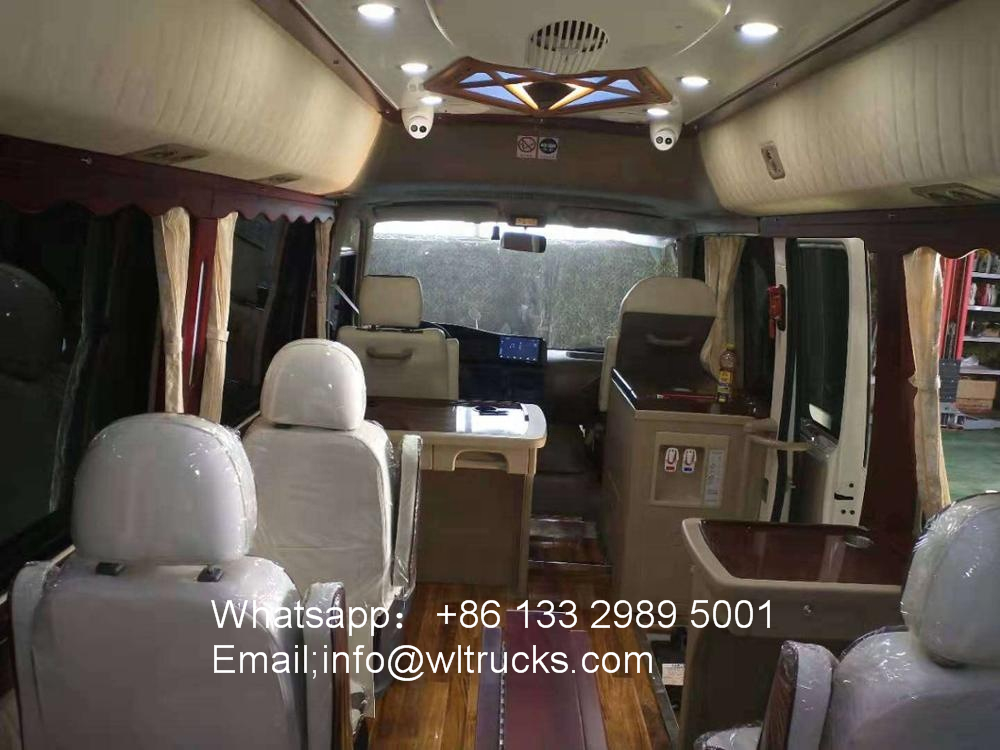

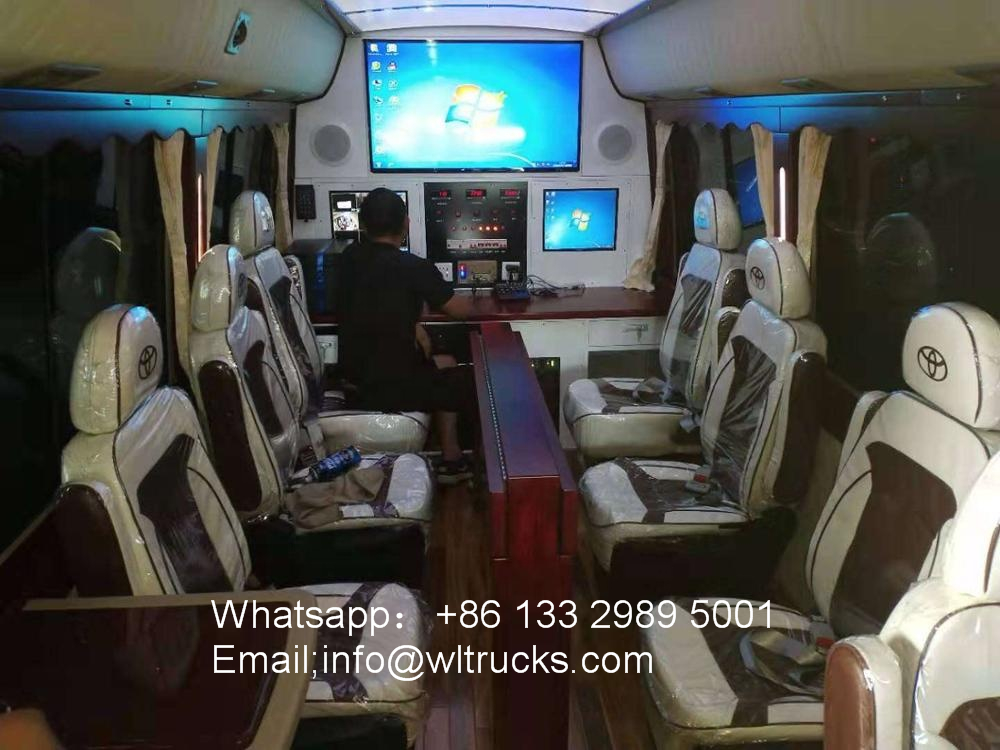

Ambulance medical cabin configuration diagram:
Ambulance car details:
Japanese Toyota mobile medical ambulance bus equipment：
