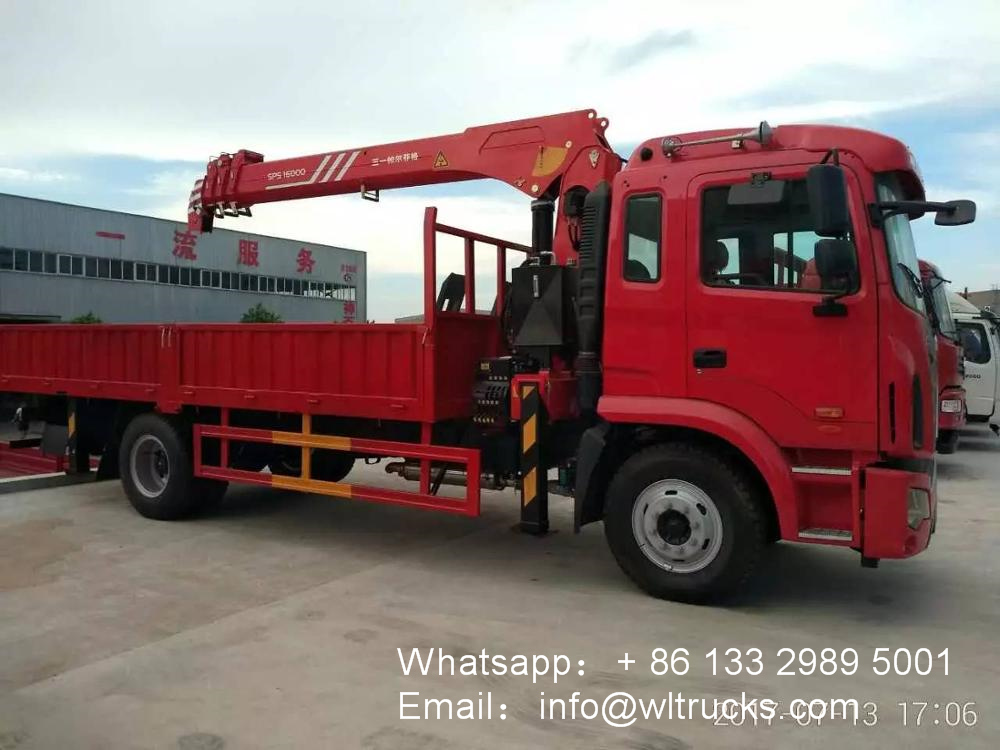

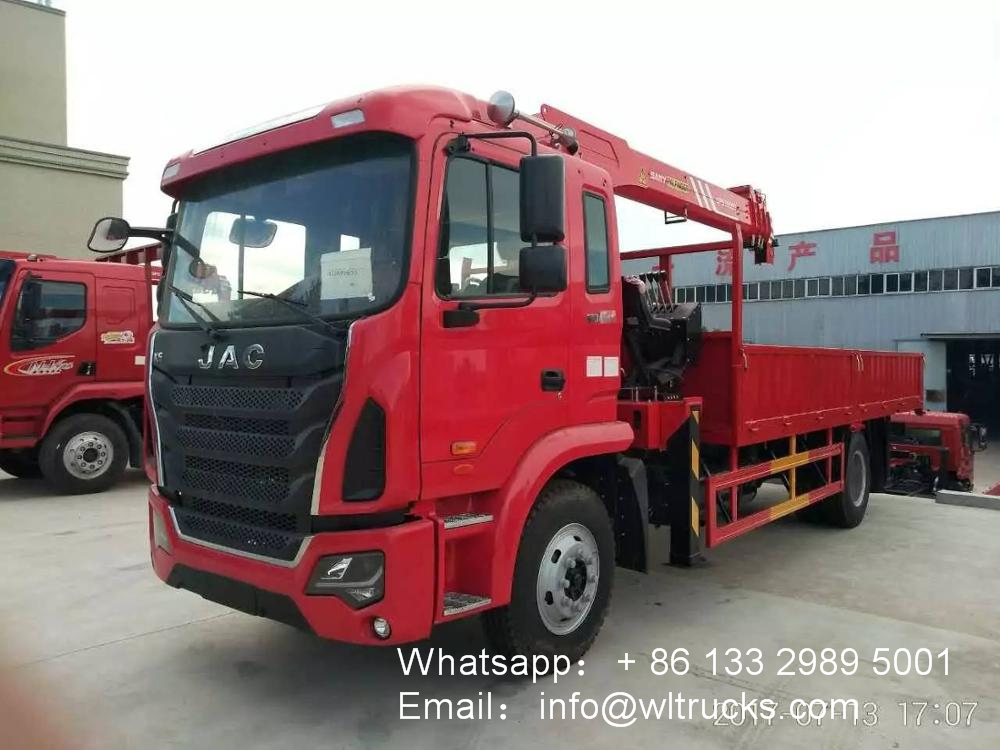

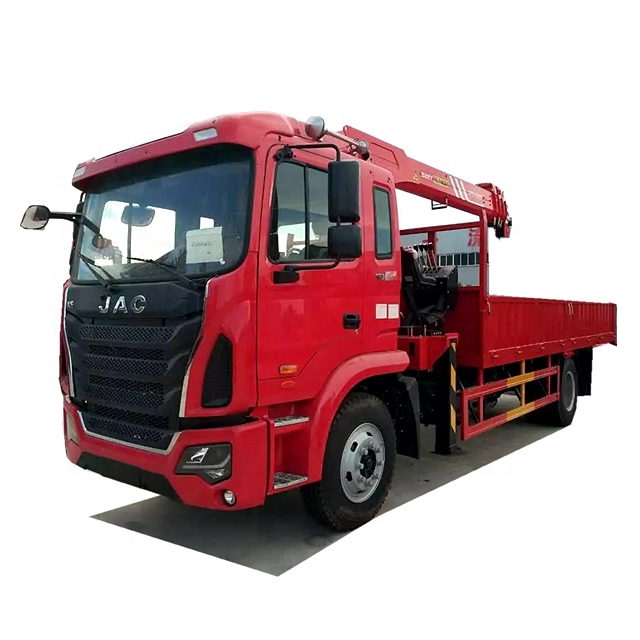

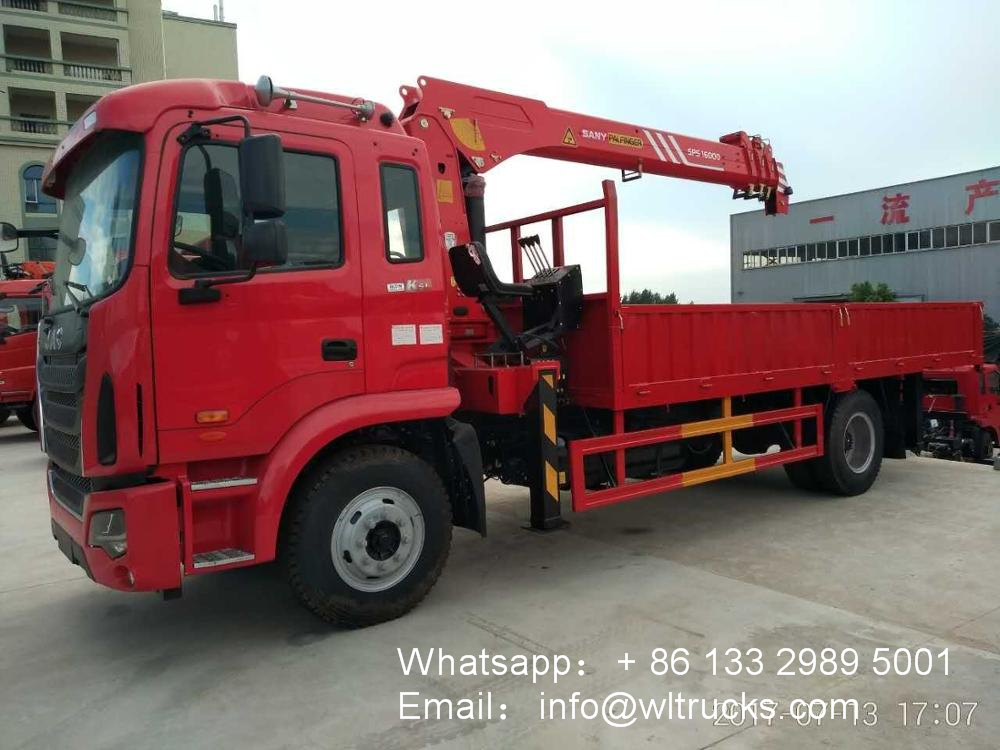

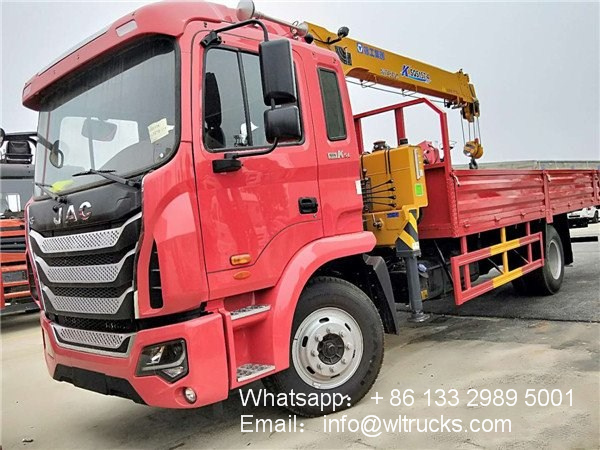

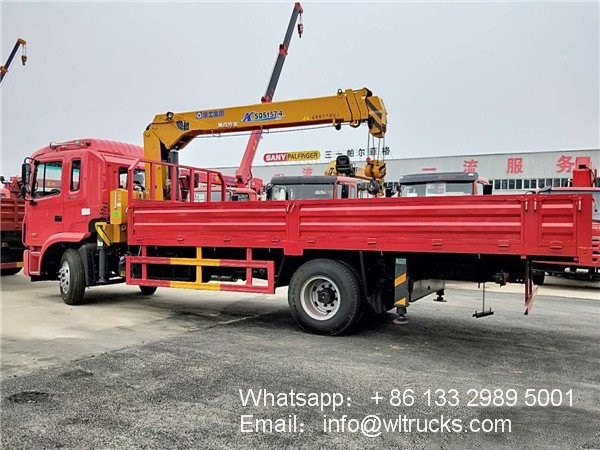

JAC 8 ton boom truck lift crane

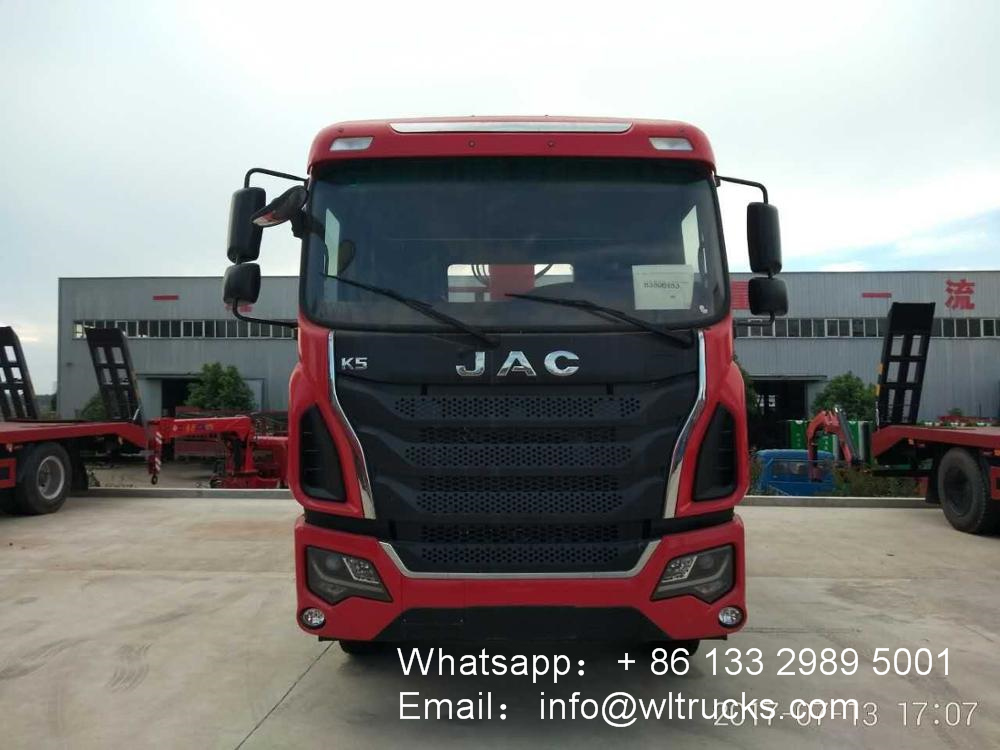

JAC 8 ton boom truck lift crane Adopt a luxurious row and a half K5L cab, Weichai 4-cylinder 160 horsepower engine, Fast 8-speed gearbox with high and low gears, original air conditioning, electric control doors and windows, central control lock, wheelbase 5000mm, 9.00R20 steel tire, 8 tons Rear axle. Cargo box size: 5650 * 2300 * 550, the length of the cargo box is 5.7 meters, the rear can be equipped with a ladder, pull excavator, multi-purpose vehicle.
Our company are professional manufacturer in truck area, guarantee all goods Brand-New and China-Origined.
1. Chassis Model: ISUZU,JAC,JMC,IVECO,Dongfeng,FAW,Foton,HOWO,North Benz and etc.
2. Engine Model:Cummins,Yuchai,Weichai,Xichai,Sinotruk and etc.
3. Drive Model: 4×2,4×4, 6×2,6×4,6×6, 8×4, and three axis crane semi-tailer
4. Crane rotation angle: 360° with hydraulic systems straight /folding boom crane max loading weight:2T,3.2T,4T,5T,6.3T,8T,10T,12T,14T,16T,20T, 30T, 60T, 150T,Two-arm, three-arm and four-arm are optional.
5. Cargo box’s length:3-13m.Widely used in oil fields, weighing and inspection, telecommunications, power, factories, cement board factories, etc.
JAC 8 ton boom truck lift crane specification:
| Chassis model | DongFeng | ||
| Driving Type | 4*2 Left hand driving | ||
| Max Speed (km/h) | 90 | ||
| GVW( kg) | 12600 | ||
| Wheelbase(mm) | 5100 | ||
| Tire | 9.00-20 (6+1) | ||
| Gear box | 6-speed | ||
| Bridge | Front axle | 3.6T | |
| Rear axle | 9T | ||
| Engine | Model | 190HP(Euro 3) | |
| Fuel Type | Diesel fuel | ||
| Max output power/rotate speed (hp ) | 190 | ||
| Electric system | 24v | ||
| Upper-Body specification | |||
| Model | SQ6.3SZ3 | ||
| Match the truck | 6.3 tons loading truck | ||
| Assembling space (mm) | 900 | ||
| Mass working weight (kgs) | 2350 | ||
| Max lifting height (m) | 11.1 | ||
| Slewing mechanism | Rotating speed (r/min) | 2 | |
| Rotating range (°) | 360 | ||
| Leg | Type | H | |
| Span(m) | 2.28-5.3 | ||
| Hydraulic system | Pressure (mpa) | 20 | |
| Capacity(l) | 100 | ||
| Safety device | Overwind alarm | ||
JAC 8 ton boom truck lift crane Working parameter:
