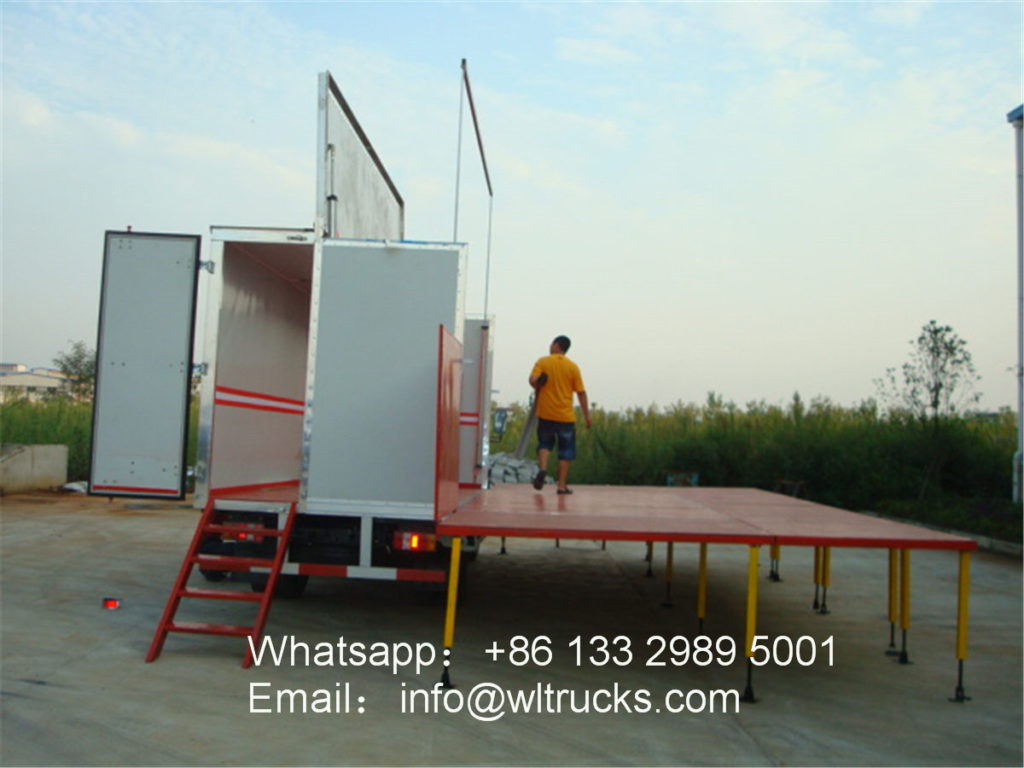

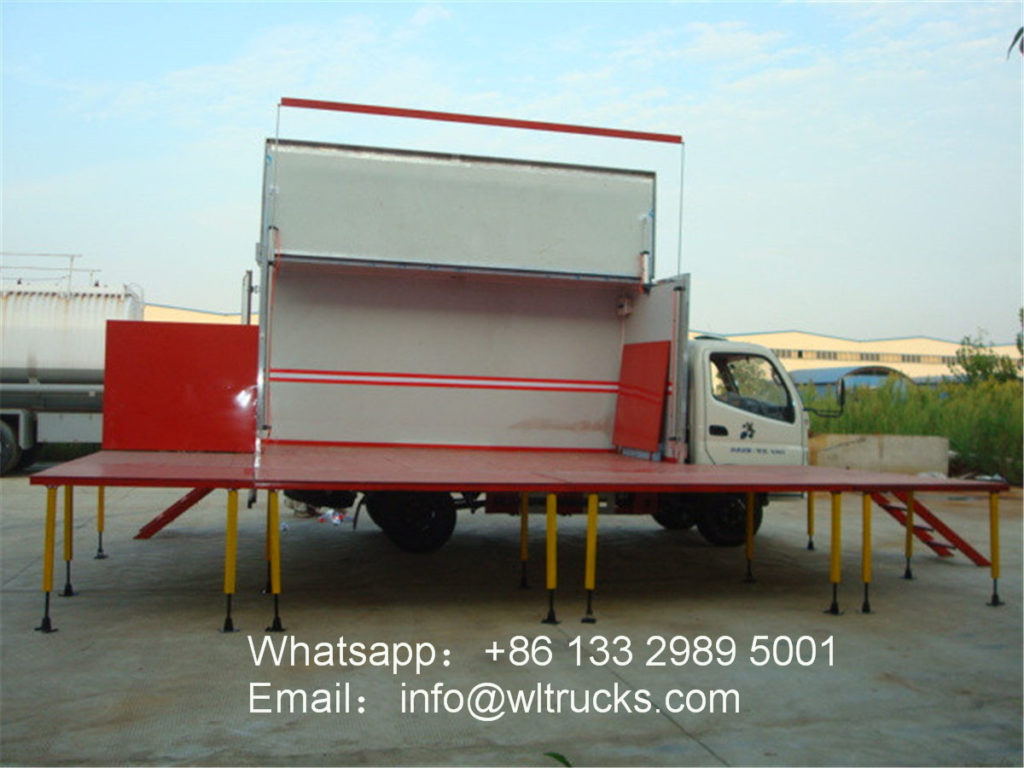

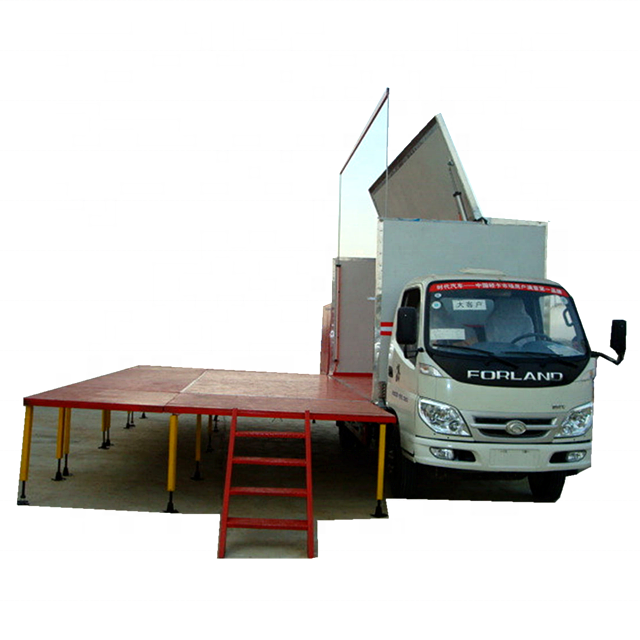

Foton 18㎡ to 24 ㎡ mini led stage truck Vehicle model: CLW5042XWTB5, vehicle size: 5995*2030*3250mm, cargo box size: 4150*2000*2050mm.
It can be modified into single-stage unfolding stage car, double-sided unfolding stage car, and three-sided unfolding stage car according to requirements, and can be equipped with screen, screen lifting, stage enlargement, stage guardrail, stage amplifier sound, stage lighting, sound effect device, U-band microphones, mixers, aerospace cabinets and other equipment.
Product advantages:
1.The van roof is closed, and the truss structure, lifting, the two sides of the compartment plate can be unfolded, vehicle stage roof and ceiling;
2.Stage plate can be folded in carriages and installation exhibition was launched by fixed surface of the stage and formed vehicle surface of the stage;
3.Chassis beam part is provided with a supporting device.
4.The car is special vehicles of stage art performance. Side door using cold-formed steel / Q235, welded connections, door after using cold-formed steel / Q235, welded connections, after door section height of 100mm, cross-sectional width dimension of 50mm, edge height from the ground 490mm.
5.Remarks: LED screen is optional according to your needs.
Foton 18㎡ to 24 ㎡ mini led stage truck Specification:
| Vehicle name | Foton Shidai mobile stage car | Vehicle model | BJ5043XWT-A |
| Emission Standards | Eruo 3 | Chassis model | BJ1043V9JEA-A |
| Environmental Notice | Have | Dimensions (mm) | 5995*1940*2970 |
| Fuel type | Diesel | Cargo compartment size (mm) | 42 00×20 00 ×2380 |
| Total mass (kg) | 4495 | Tire specifications | 6.50-16 10 PR |
| Curb weight (kg) | 3865 | Rated passenger | 2 (person) |
| Wheelbase (mm) | 3360 | Maximum speed (km/h) | 95 |
| engine model | 4B2-95C40 | Displacement (ml) | 2540 |
| Engine manufacturer | Anhui whole Chai shares Co., Ltd. | Power (kw) | 70 ( 95 hp) |
| Lifting height at top | ≈ 800mm-1300mm | The height between the top and the stage board after expansion | ≈ 3300 mm |
| Stage opening length | ≈ 6200 mm | Stage depth | ≈ 40 00mm (width) |
| Main stage area | ≈ 16 ㎡-36㎡ | Stage area | ≈ 6 ㎡ |
| Cabinet material | Combined skeleton of aluminum profiles and stampings | Outer plate material | Cold rolled steel plate |
| Interior material | Waterproof plywood | Stage board | Waterproof, non-slip, fireproof ventral plywood |
| Cylinder | Poly Electromechanical | Tubing | Double exhibition steel wire tubing |
| Onboard | Light stand, curtain, hook, stage ladder, stage screen | ||
| Optional | High-precision LED high-definition color screen (P6, P5, P4, etc.) | ||
Stage vehicle Expand specifications：
Single-sided unfolding parameters: the stage depth is about 4500mm, the stage opening width is about 6600mm, the main stage area is about 16-20 square meters, and the auxiliary stage area is about 6-8 square meters. The total stage area is about 24-28 square meters.
Double-sided unfolding parameters: the stage depth is about 6300mm, the stage opening width is about 6600mm, the main stage area is about 24-28 square meters, and the auxiliary stage area is about 6-8 square meters. The total stage area is about 30-34 square meters.
Three-sided unfolding parameters: the stage depth is about 6000mm, the stage opening width is about 6000mm, the main stage area is about 30-34 square meters, and the secondary stage area is about 6-8 square meters. The total stage area is about 36-42 square meters.

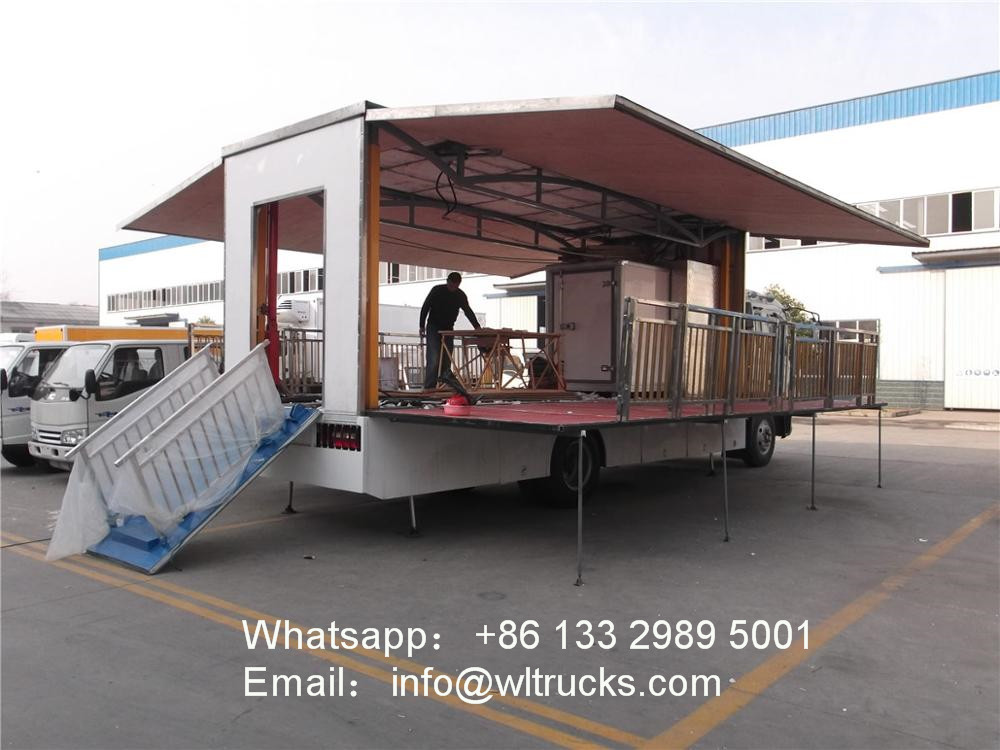

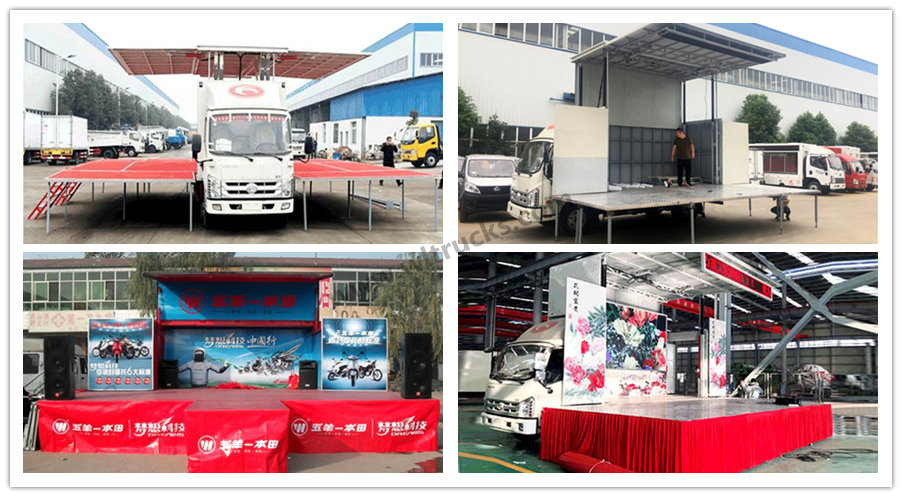

Stage car modification style picture:

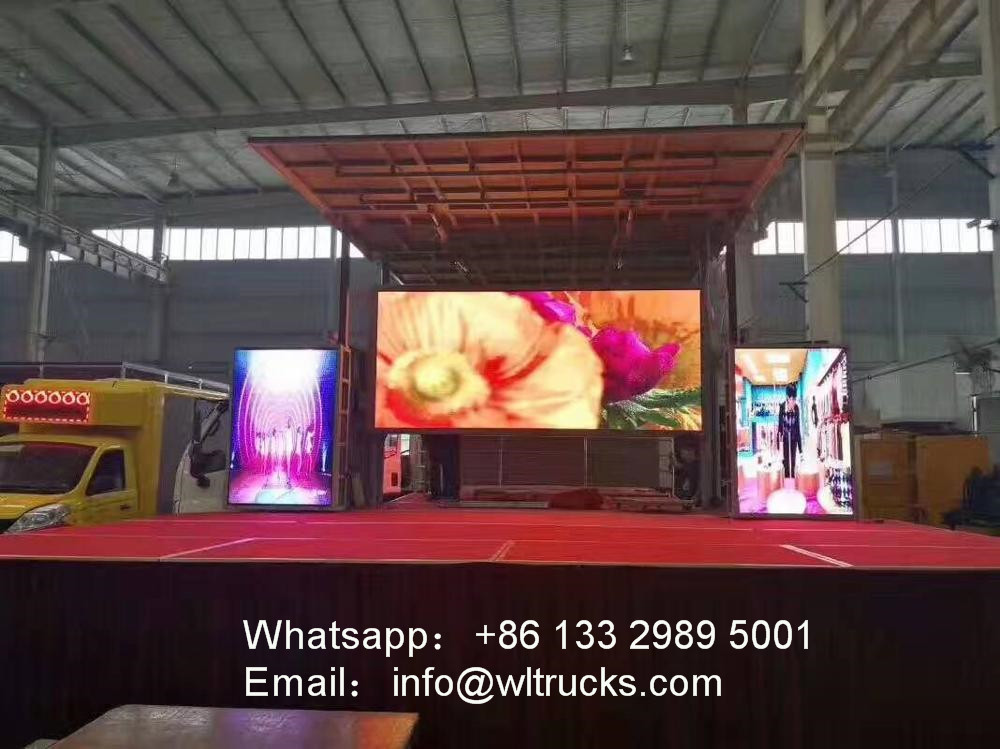

Led Stage vehicle Field of use:
Stage screen truck Composition structure:

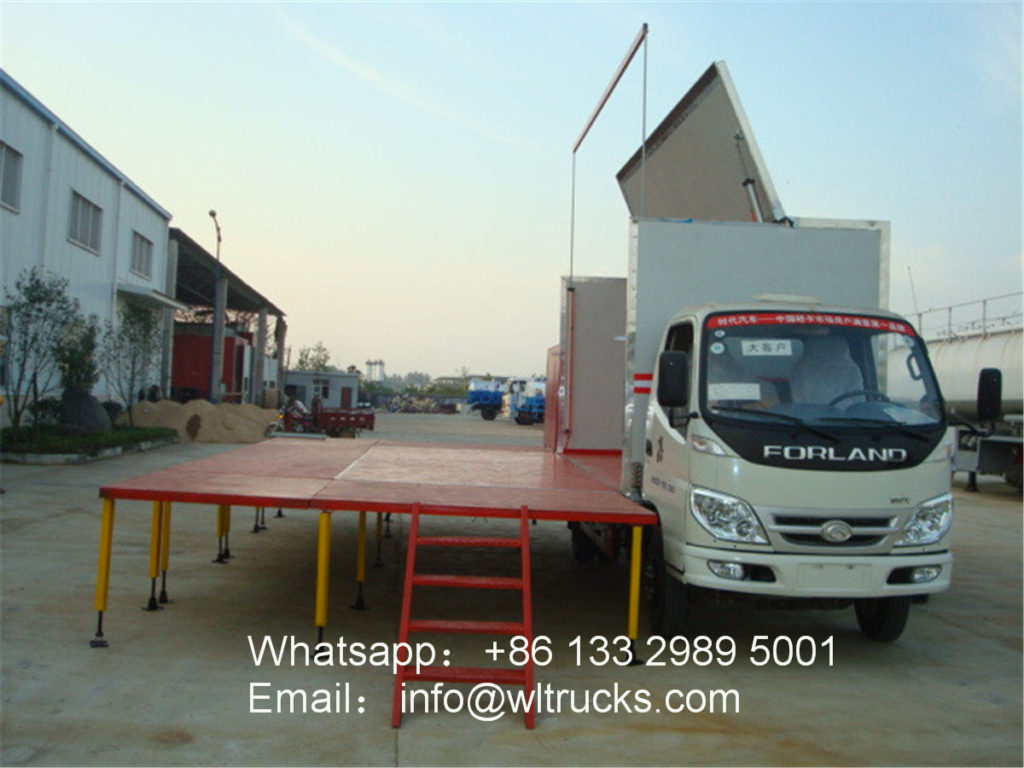

detailed picture:
