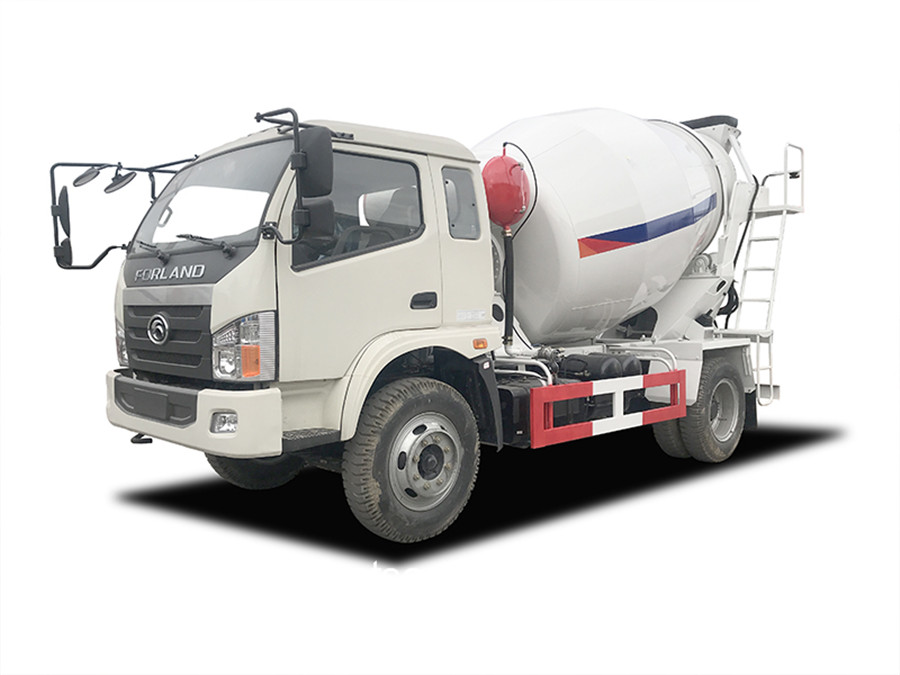

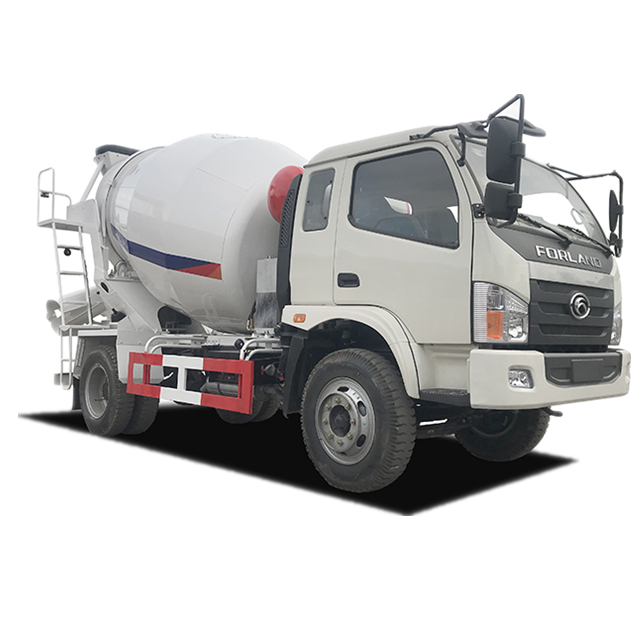

Forland 5cbm ready mix concrete trucks Adopts Forland A row and a half cab, wheelbase 3600mm,5 speeds with auxiliary transmission
gearbox, vehicle size:6500×2250×3300mm, equipped with Yuchai 130 horsepower Eruo 3 diesel engine.
gearbox, vehicle size:6500×2250×3300mm, equipped with Yuchai 130 horsepower Eruo 3 diesel engine.
products description:
Our mixer truck is mainly used in cement mixing station, construction field and other place.The capacity ranges from 2m3 to 18m3, meeting customers’ various needs.
It is can loading and unloading by itself. After discharging the concrete, the mixer drum will be cleaning automatically by its water suppling system.
Our concrete truck mixer consists of seven main parts. Theyare hydraulic pump, reducer, rotating drum mixer, operation system, drum cleaning system,concrete feed hopper,concrete outlet hopper.
Forland 5cbm ready mix concrete trucks Specification:
| Basic parameters | |||
| Vehicle name: | 5m3 concrete mixer truck | Product trademark: | Chengli brand |
| engine: | Yuchai 130 hp | Cab: | Foton era J4 row and a half cab |
| Gearbox: | 5 speeds with auxiliary transmission | Rear axle: | 9 tons reinforced rear axle |
| Dimensions: | 6500×2250×3300(mm) | Actual volume: | 5 parties |
| Total quality: | 15800kg | Curb quality: | 8700kg |
| Maximum speed: | 80m/h | Displacement: | 5600ml |
| Wheelbase: | 3600(mm) | Tire specifications: | 8.25-20 nylon tire |
| Drive method: | 4×2 | Braking method: | Steam brake |
| Fuel type: | Diesel | Emission Standards: | Eruo 3 |
| Upload parameters | |||
| Head: | 6mm thick high-strength manganese steel (Q345) material is more wear-resistant | Tank body: | 5mm thick 16 fierce high alloy steel |
| blade: | 4mm thick (520JJ) alloy steel material (addition of wear-resistant strips to increase service life) | Reducer: | Shijiazhuang Keyi (optional German ZF reducer) |
| Hydraulic system: | Long source oil pump, vigorous motor (optional Sally, Interpup oil pump motor) | cooling system: | Xinxiang Zhenhua (Changzhou Kaipeng and Xugong radiators are optional) |
| water supply system: | 300L water tank pressure water supply | Operation method: | Trilateral operation on the left and right sides and the cab |
| Feeding speed: | 3m3/min | Discharging speed: | 2m3/min |
| Discharge residual rate: | Discharge residual rate≤0.5 | Discharge range: | 180° height adjustment |

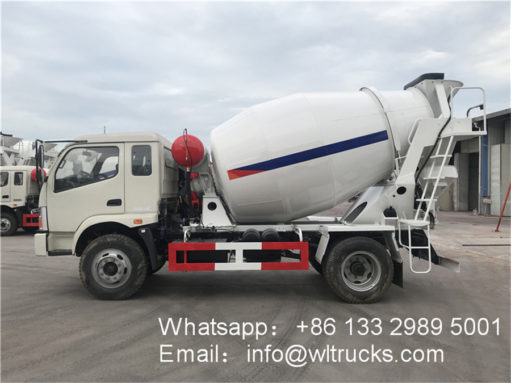

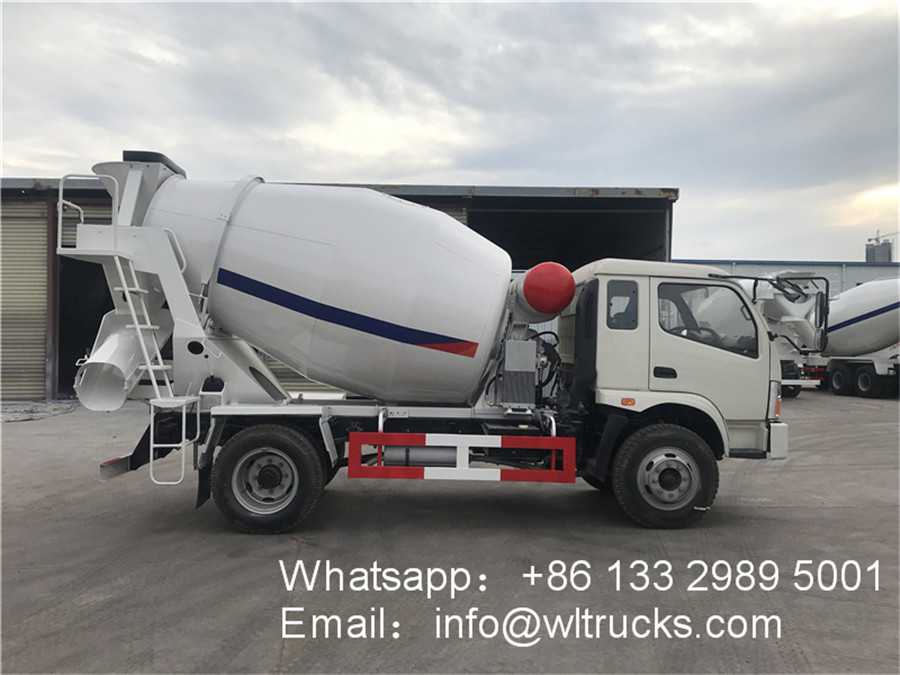

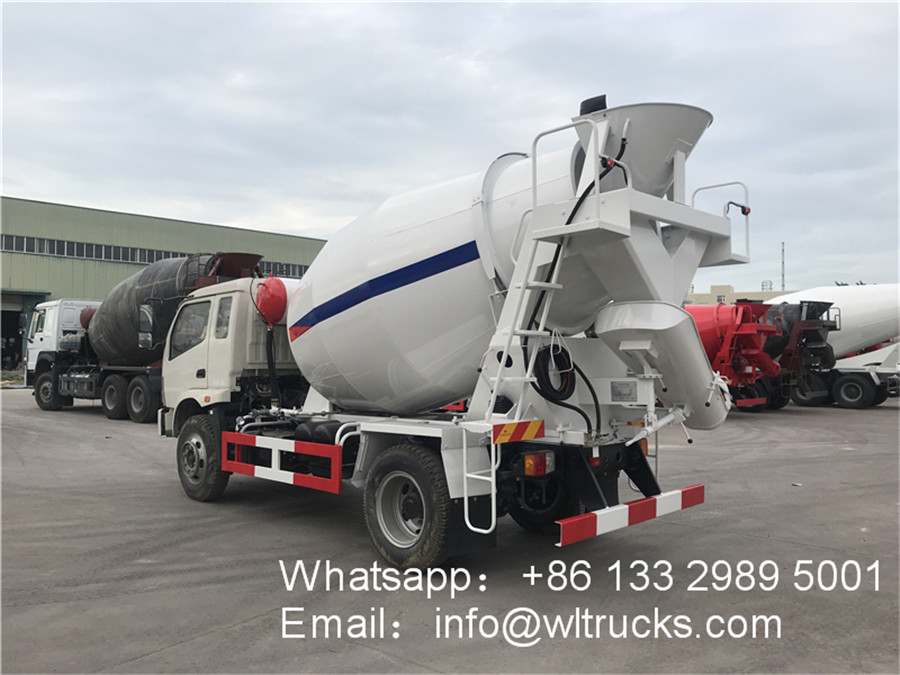

cement mixer vehicle detailed picture:
mixing trucks Structural composition drawings:
