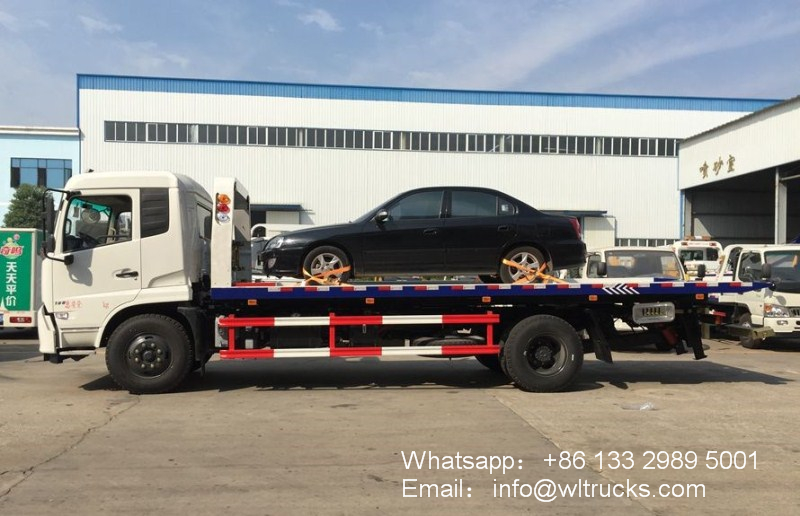

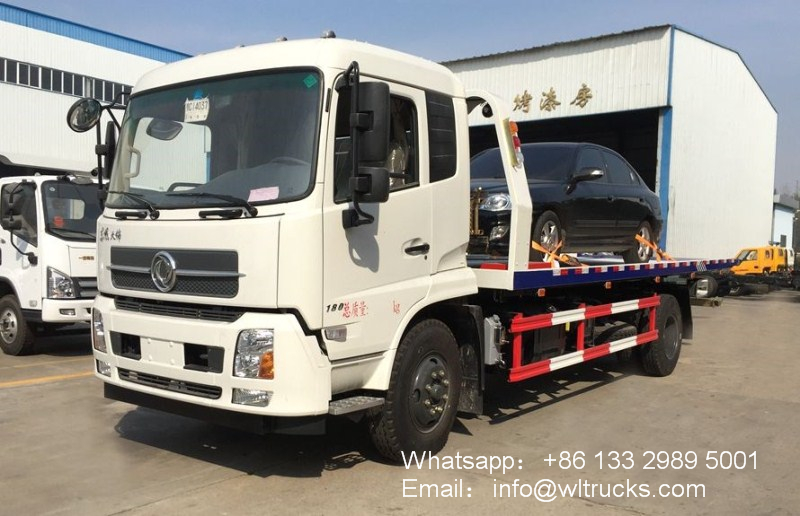

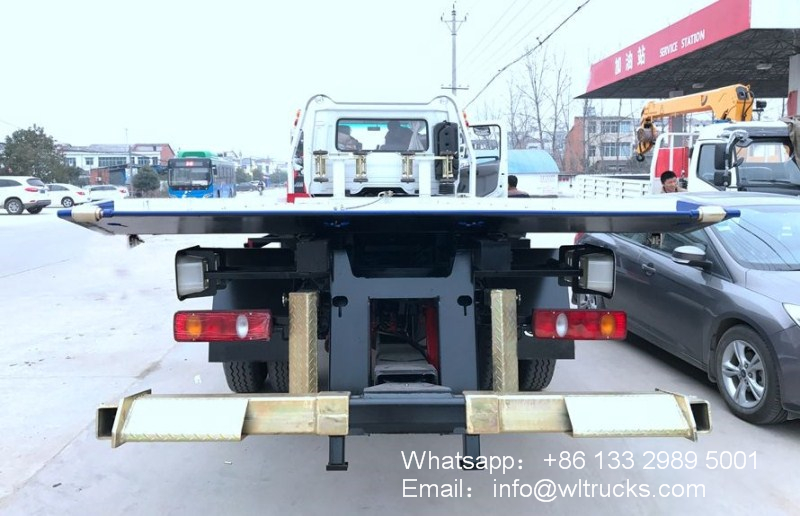

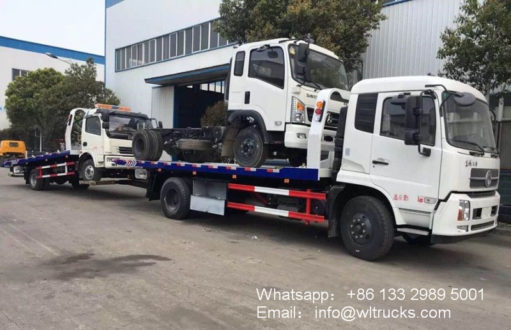

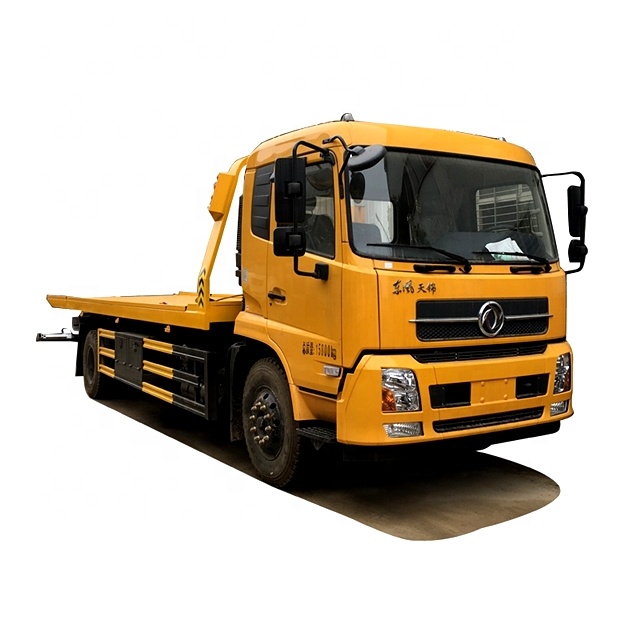

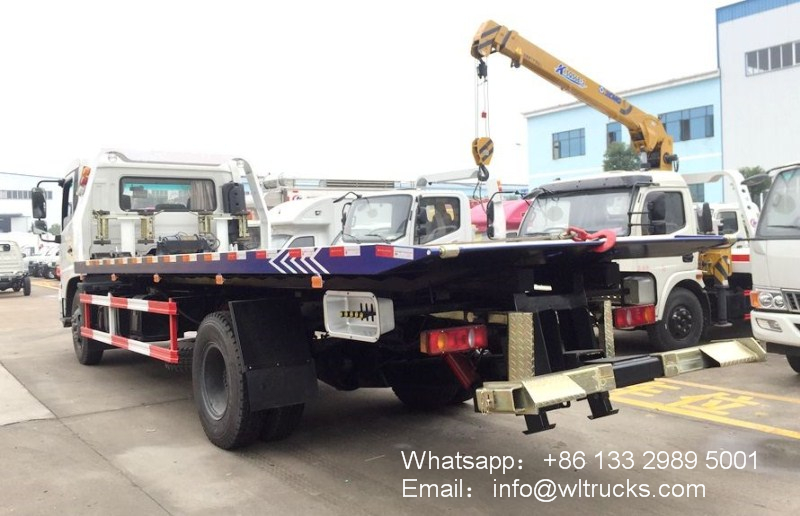

Dongfeng 6ton to 8 ton wrecker tow truck
Dongfeng 6ton to 8 ton wrecker tow truck Chassis configuration：
Adopt Dongfeng Tianjin series chassis, semi-flat roof cab can be turned forward, Cummins 180 horsepower engine, 6-speed gearbox, wheelbase 3950mm-4700mm, 9 tons rear axle, 250mm double-layer (7 + 4) beam, 9.00-20 Original tires, double-sided linkage operation, with direction assistance, original ABS, air brake.
Dongfeng 6ton to 8 ton wrecker tow truck Bodywork configuration：
The truck has a length of 7 meters and a width of 2.5 meters. The plate can use 4 thick checkered plates or a new disposable stamping plate. 6 tons of tops, with 5 tons of hydraulic winch, 25 meters of steel wire rope, double-sided linkage operation, pair of auxiliary wheel trolleys, pair of trailer forks, pair of seven-character forks, pair of square sleeves, one set of tools on board, bundled With 4 sets, two working lights, equipped with yellow LED long-row electronic warning lights.
Dongfeng 6ton to 8 ton wrecker tow truck specification:
| Vehicle technical parameters | |||
| product name | Wrecker | Dimensions | 9.44×2.48×2.76 meters |
| Total quality | 12.495 tons | Curb quality | 8 tons |
| Flat size (mm) | 7.2 meters | Flat thickness | 4 thick |
| Winding specifications | 6 tons | Tops | 6 tons |
| Chassis technical parameters | |||
| Chassis name | Dongfeng Tianjin | Chassis model | DFL1120B21 |
| Number of axes | 2 | Number of tires | 7 (including spare tire) |
| Wheelbase | 4.7 / 5 meters | Tire specifications | 9.00R20 |
| Gearbox | 6 files | Rear axle | 9 tons |
| Fuel type | Diesel | brake | Air brake |
| Emission standard | GB17691-2005 National V, GB3847-2005 | ||
| engine model | Engine manufacturer | Displacement (ml) | horsepower |
| ISD180 50 | Dongfeng Cummins | 4500 | 180 horsepower |
| Basic upload configuration | |||
| Standard configuration | 6-ton conjoined bodywork, equipped with 5 tons hydraulic winch, 35-meter steel wire rope, 4 sets of steel forks, a set of trailers, a set of steel plate lugs, a set of tire protection devices, a set of vehicle-mounted tools, an auxiliary light In one set, one set of auxiliary trachea assembly and one set of yellow long-row engineering warning lights. | ||
Dongfeng 6ton to 8 ton wrecker tow truck Advantage:
The loading surface of the platform is formed by stamping die once. The endurance is strong and the shape is not deformed. The plate surface is smoother, the structure is more professional and the strength is higher. The hydraulic parts adopt internationally renowned brands, and the product quality is guaranteed.
It integrates multiple functions such as lifting, carrying, dragging, pulling and so on. The hydraulic oil pipe is made of galvanized steel, which has good pressure resistance, strong heat dissipation performance, beautiful and durable.
