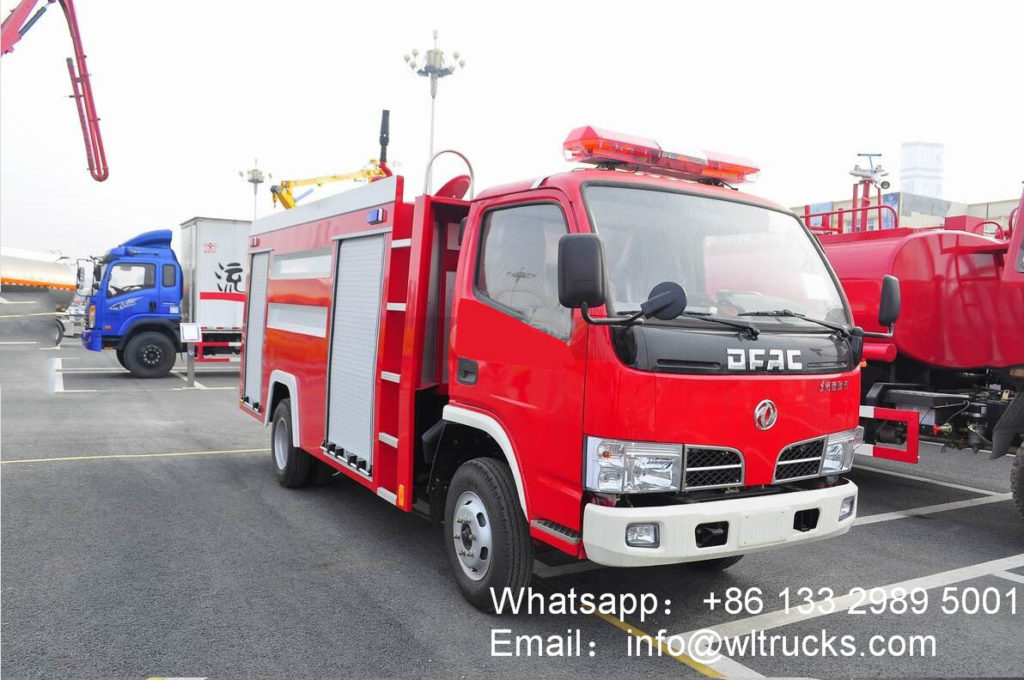

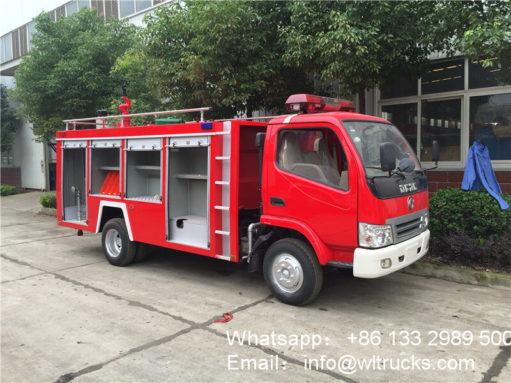

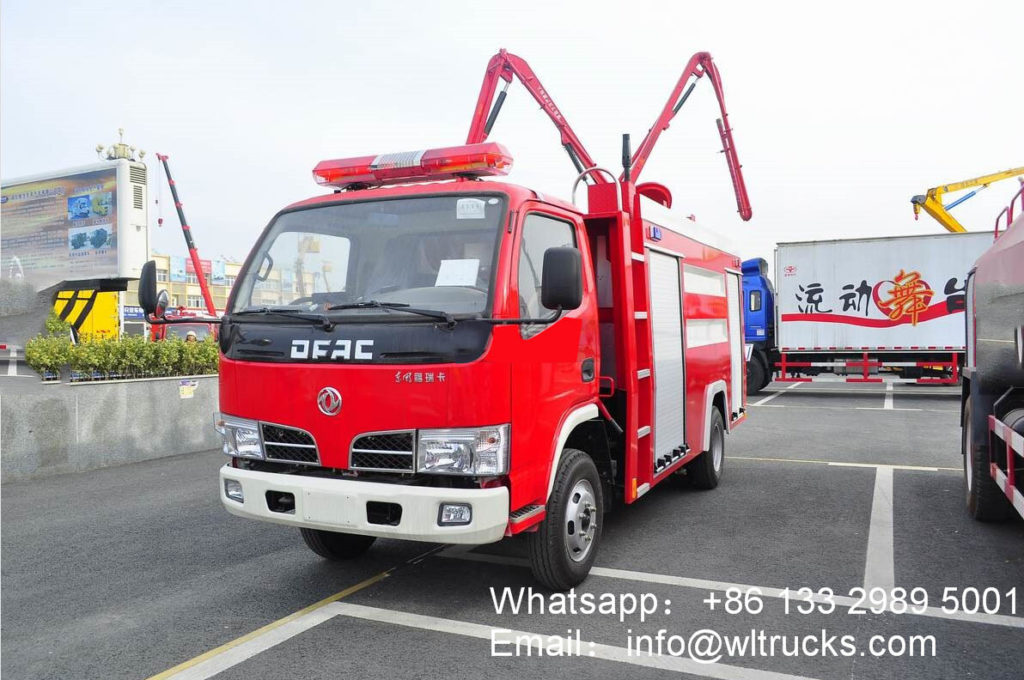

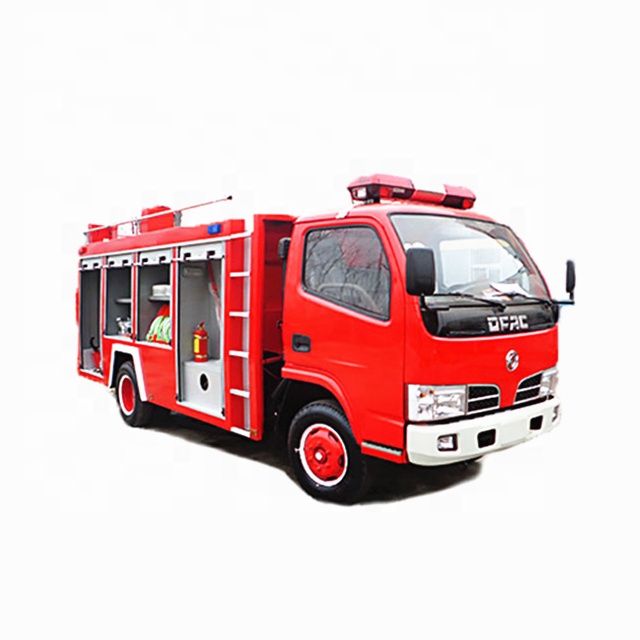

Dongfeng 3000 liter fire fighting truck is modified from Dongfeng EQ1041SJ3BDD chassis. Tank volume, 2-3 cubic meters, internal storage tank structure, water tank + equipment box at the front of the car body, and pump room at the rear.
The liquid-carrying tank is made of high-quality carbon steel and is elastically connected to the chassis. It is equipped with a CB10/20-XZ fire pump produced by Shanghai Xiongzhen Fire Equipment Co., Ltd., with a rated flow of 20L/S. The roof is installed. Chengdu West Fire Fighting Machinery Limited PS20W vehicle fire monitor produced by the company.
Product Specifications:
| Vehicle parameters | |
| Vehicle model | CLW5040GXFSG10 type water tank fire truck |
| Dimensions | Length × width × height: 5615/6200×1920×2550 (mm) |
| Quality parameter | Total mass: 4360kg Rated load mass: 620kg Curb weight: 3590kg |
| Front track/rear track | 1450,1770,1441,1519/1470,1620,1500 |
| Maximum speed | 90km/h |
| Chassis configuration | |
| Chassis model | EQ1041SJ3BDD (Dongfeng Motor Co., Ltd.) |
| engine model | CY4102 (Dongfeng Chaochai Power Co., Ltd.) |
| Engine power/displacement | 70KW/2670ml |
| Number of axles/wheelbase | 2 axes/2800mm |
| Tire specifications | 7.00-16 10PR |
| Special configuration | |
| Tank volume | 2000L |
| Tank material | High quality carbon steel tank (stainless steel or PP material can be selected) |
| Fire pump parameters | Model: CB10/20-XZ, flow rate: 20L/S 1.0MPa |
| Fire monitor parameters | Model: PS20W, Range: ≥45m |
| Modified tops : mainly from power take-offs, cabs, equipment boxes, tanks, pump rooms, fire pumps, fire monitors and piping systems, electrical systems, control systems, etc. | |||||||||
| PTO | Structure and form | Integral box type, full power, sandwich type, forced adjustable circulating water cooling, splash oil lubrication | |||||||
| Cab | Structure type | The overall four-door double-row flat head, additional crew room, a total of 5 seats. (3 people in the cabin and 2 people in the cab) | |||||||
| Equipped with fire-fighting facilities | Police lights and sirens, dialogue machines, air breathing apparatus, power takeoff switches | ||||||||

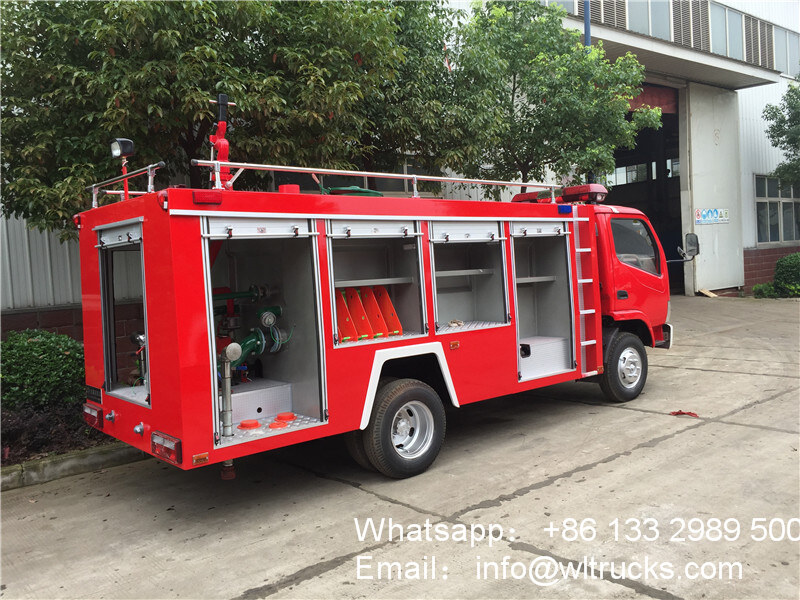

| Equipment box | Structure and form | Full-quality carbon steel frame welded, built-in skeleton, outer skin, three doors at the rear of the vehicle, left and right rear, and aluminum alloy curtain door. | |||||||
| Equipped with fire fighting equipment | Conventional standard configuration can also be added according to special needs | ||||||||
| Container | Structure and form | Built-in , integral rectangular welding, made of high-quality carbon steel plate, anti-sway plate inside, mesh format, manholes in adjacent compartments, manholes in tank top, overflow port, external water injection port, sewage The mouth, liquid level indicator and inner wall are all anti-corrosive. | |||||||
| Carrier volume | Water: 1500kg/ 1.5~2 cubic meters (effective volume) | ||||||||

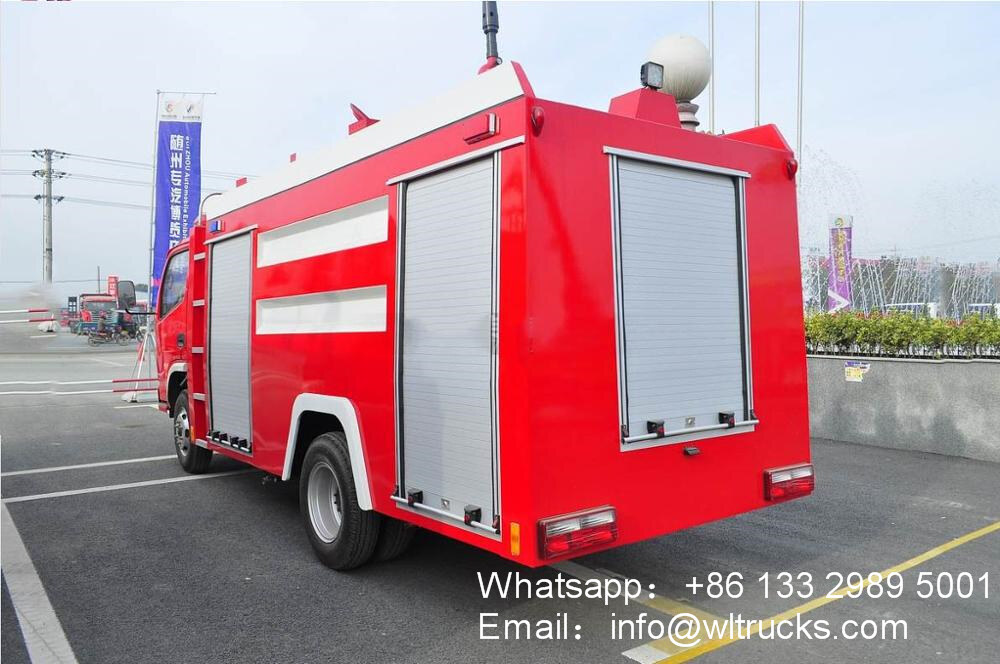

| Pump room | Structure and form | The full-quality carbon steel frame is welded, has a built-in skeleton, an outer skin, and is located at the rear of the vehicle. The left and right rear doors are opened, and aluminum alloy curtain doors are installed. | |||||||
| Equipped with fire-fighting facilities | Water filters, water collectors, water distributors, water guns, reducers, suction pipe wrenches, etc., can also be equipped according to special needs: such as hand-lifted motor pumps, fuel heaters, etc. | ||||||||
| Fire Pump | model | CB10/20 low pressure pump | |||||||
| Structure and performance | structure | Rear, dual-piston vacuum pump, electromagnetic clutch | |||||||
| performance | Low pressure | Flow rate: 20L/S, pressure: 1.0MPa | Diversion time ≤35, the maximum suction depth is 7m |
||||||
| Flow rate: 14L/S, pressure: 1.3MPa | |||||||||
| Flow rate: 10L/s, pressure: 1.0MPa | |||||||||
| Fire cannon | model | PS20 | |||||||
| performance | Flow rate: 20L/S, range: ≥48m, pressure: ≤1.0MPa, pitch angle -22°~+81°, rotation angle 360° | ||||||||
| Piping system | Internal water inlet pipe | The water inlet diameter is Ф100. Water enters the fire pump from the tank. A Ф100 manual butterfly valve is installed between the liquid tank and the water pump. A filter screen is provided at the water outlet of the container. | |||||||
| External water inlet pipe | There is a Ф100 external water inlet at the back of the pump, which is connected to the suction pipe, the pipe bud interface (seal cap sealing), and the water inlet is provided with a filter sheet. | ||||||||
| Outlet pipe | There is a water outlet on the left and right of the pump, the water outlet diameter is Ф65, and the quick interface. (Seal cap seal) | ||||||||
| Remaining water pipeline | The lowest part of the container is equipped with a residual water valve, and the lowest parts of the pump and power take-off are also provided with residual water valves. | ||||||||
| Cooling water pipeline | The circulating cooling water pipeline is provided with an inlet valve at the outlet of the pump and a return valve at the inlet. | ||||||||
| Electrical system | The top of the cab is equipped with long rows of police lights, the cab is equipped with 100W alarms and dialogue machines, the side lights on both sides of the vehicle are equipped with side indicator lights with retro-reflector combinations, the equipment box and the pump room are equipped with lights, and the roof There is a fire spot light (optional) in the department, and a rear door profile light is installed above the rear of the vehicle. | ||||||||
| Control system | Additional instruments and switches are centrally arranged on the instrument panel. The instrument panel is equipped with liquid level indicators, tachometers, pressure gauges, vacuum gauges, instrument power supplies, front and rear lights, equipment box lights, pump room lights, and pump water diversion control. There is text on the left side of the switch and dashboard to explain the operation of the fire pump | ||||||||
| Optional part | With sprinkler function: front flushing, rear sprinkling. Lights at the rear of the roof. | ||||||||
Fire truck detail structure diagram:
Fire equipment table:
| Serial number | name | specification | Quantity | unit | Remarks |
| 1 | straw | KD100×2 meters | 4 | root | Threaded |
| 2 | Water filter | FLF100 | 1 | Piece | Threaded |
| 3 | Trap | FII80/65×3-1.6 | 1 | Piece | Internal button |
| 4 | Water trap | JII125/65×2-1.0 | 1 | Piece | Internal button |
| 5 | Hose | 13-65-20 | 8 | plate | Low pressure; |
| 6 | Reducing interface | KJ65/80 | 2 | Piece | Internal button |
| 7 | Water-retaining cloth | DT-SB | 4 | Piece | Internal button |
| 8 | Hose hook | 4 | Piece | ||
| 9 | Ground fire hydrant wrench | QT-DS1; length 400 | 1 | Piece | |
| 10 | Underground hydrant wrench | Long 860 | 1 | Piece | |
| 11 | Suction pipe wrench | FS100 | 2 | Piece | |
| 12 | DC switch water gun | QZG3.5/7.5; 65 | 1 | support | Low pressure; |
| 13 | DC Flowering Water Gun | QZK3.5/7.5; 65 | 1 | support | Low pressure; |
| 14 | Fire bucket | 1 | Pc | ||
| 15 | Fire extinguisher | 3KG | 1 | With | |
| 16 | Fire waist axe | Length 390; GF-285 | 1 | Piece | |
| 17 | Rubber hammer | 1 | Piece | ||
| 18 | Rechargeable portable lighting | 1 | Piece |
Optional fire equipment table:
| Serial number | name | specification | Quantity | unit | Remarks |
| 1 | Automatic charging device | 12V | 1 | set | |
| 2 | Air backrest | 3 | set | ||
| 3 | Air breathing apparatus | Number of members | set | ||
| 4 | Hose bridge | rubber | 2 | vice | |
| 5 | Telescopic ladder | 1 | vice | ||
| 6 | Hand lift the pump | 1 | station | ||
| 7 | Breaking tools | 1 | set | ||
| 8 | Other fire equipment |
