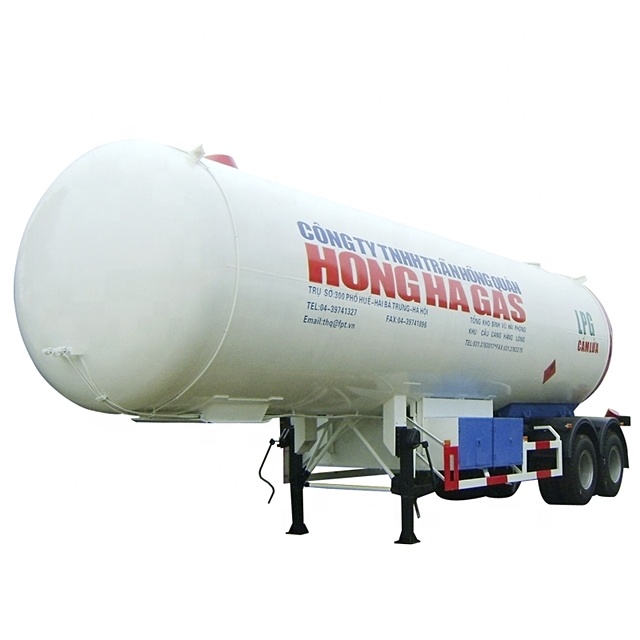

We produce 2 Axles 45000liters lpg tanker trailer is used to transport liquid petroleum gas in large quantity and in long distance from depot or terminal station to smaller lpg stations in other cities.We can offer lpg bridger truck tanker trailers from 40cbm to 60cbm and from 20tons to 30tons.
China Lpg tanks trailers Product Description:
1.LPG tank trailer which could be used for loading propane gas, methyl ether gas, isobutane gas, and so on, also include the liquid Ammonia.
2.Manufacturing standards of LPG Transport Tanker Trailer : GB-150, ASME, U STAMP, CCC, ISO9001 : 2008,
3.Optional accessories of LPG Transport Tanker Trailer:ROCHESTER level gauge,flow meter,sunshelter,lpg pump,lpg dispenser machine,filling hose.
4.Available tanker trailer capacity of LPG Transport Tanker Trailer: 18mt,18t,20mt,20tons,22mt,22tons,25mt,25tons,30mt,30tons.
2 Axles 45000liters lpg tanker trailer specification:
|Tanker Essential Information|
|Volume of Tank (cbm)||45|
|Tank Dimensions(Inner Diameter*thickness*Length)||2200*12*11044|
|Estimated Tare Weight (kg)||13415|
|Shell of Tanker|
|Products||Liquefied Petroleum Gas (propane)|
|Weld Joint Factor||1|
|Major Materials of Bearing Pressure||Tanker body:Q345,12mm,|
|Heat Treatment||Overall treatment in a furnace,600ºC to 640 ºC|
|Flaw Detection||100% Flaw detection|
|Magnaflux Inspection||Aim at welding place that flaw detection can not cover|
|Manhole (As Customer’s Requirement)|
|Safety Valve(As Customer’s Requirement)|
|Location||On the top of tanker|
|Type||Manuel Switch type|
|Location||At the rear of the end dish|
|Tire||12R22.5 Tubeless tire ,8 with one spare tire|
|King Pin||#50 or #90|
|Emergency Cut-off Valves||2 or 3|
|Ball Valve||4 or 6|
|Pressure Indicating Thermometer||1|
ChengLi Lpg trailer details:
Lpg tank trailer type exhibition：
lpg tanker semi trailer Production Process：
Q1: What is your product name?
A:Chengli 2ton to 15 tons lpg tanker truck
Q2: What size can you supply?
A: We can supply howo lpg bobtail truck from 5cbm to 35.5cbm, the most popular size is 5000liters, 10,000liters, 15000liters and 20,000liters.
Q3: What’s the production standard?
A: GB-150.1~4-2011 or optional for ASME VIII Division I U STAMP
Q4: Where is your factory located? Can we visit your factory?
A: Our factory is located in Suizhou City, Hubei Province,central China,which is famous for special vehicles. You can take high speed train to Wuhan railway station,Hankou railway station or Wuhan Tianhe International Airport.
Q5: What’s your payment term?
A: 40% deposit by T/T and balance by T/T before shipment.
Q6: How many days can I get my the howo lpg bobtail truck after paying deposit?
A: Only 10 working days is needed when material is ready.Usually our delivery time is 20~25 days.
Q7: What other truck brands do you supply for choice?
A: There are dongfeng,isuzu,faw,jac,foton and so on.
Our customers are located in 127 countries and regions around the world
