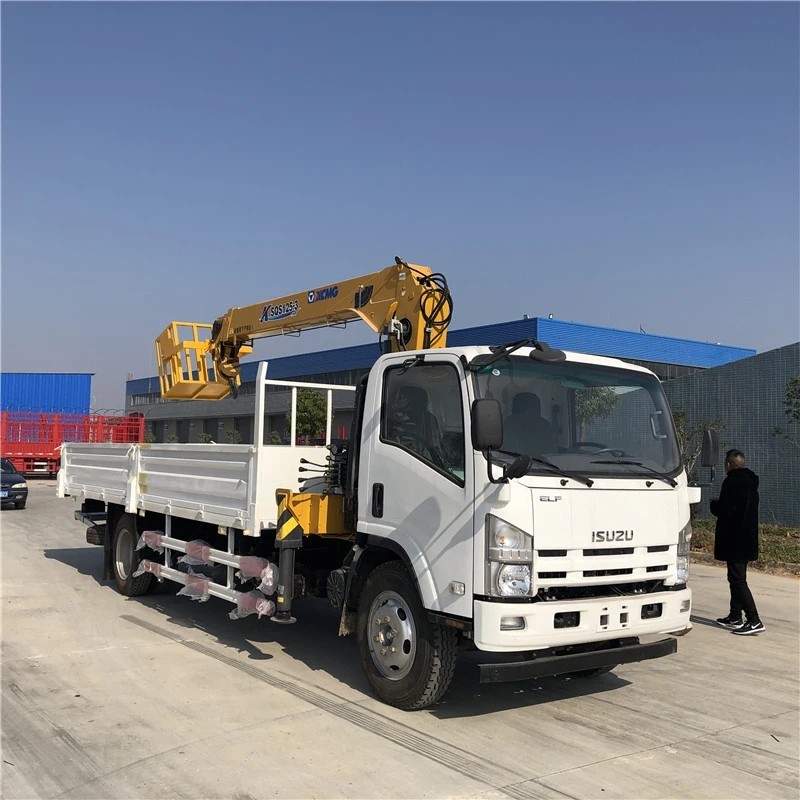

Isuzu 8t crane with wrecker Rear Drag arm system photos

8 tons straight arm crane specifications:

Model SQ8SA3  (8 tons, 4arm)
Max loading weight 8000 kg
Max torque 11.25T.m
Cross section form hexagon switch back Switch speed r/min 2
Section number 4 (extend 3 section) Slewing angle 360
Length m 4.2-12.6 landing leg model H type support legs
Max working radius m 12.5 Span m 2.3-5.4
Extend speed m/s 0.25 Hydraulic system System pressure mpa 21
Amplitude range 1-70 Tank capacity L 120
Arm speed°/s 5.3 Safety device Over turn alarm
maximum lifting height m 14.5 Self loading kg   3000
Hook lifting speed m/min 8.33 Install space 1200mm
Diamete of steel wire mm 9.3 Length of steel wire m 100
Lifting capacity
working radius m 2.5 4.0 5.0 6.0 7.0 9.0 11.0 12.5
Rate loading kg 8000 4500 3500 2550 1910 1260 910 850

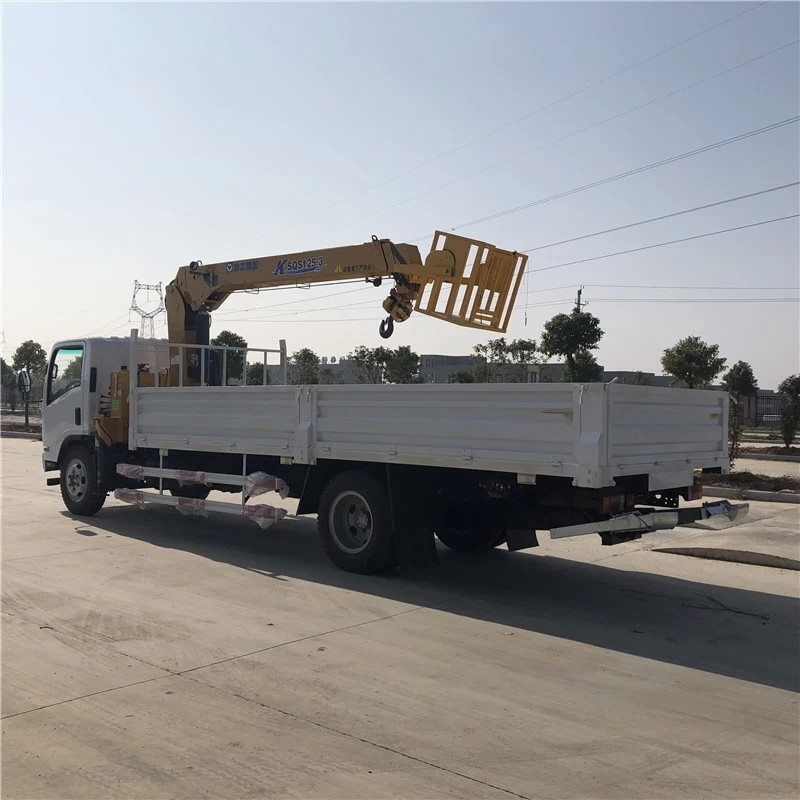

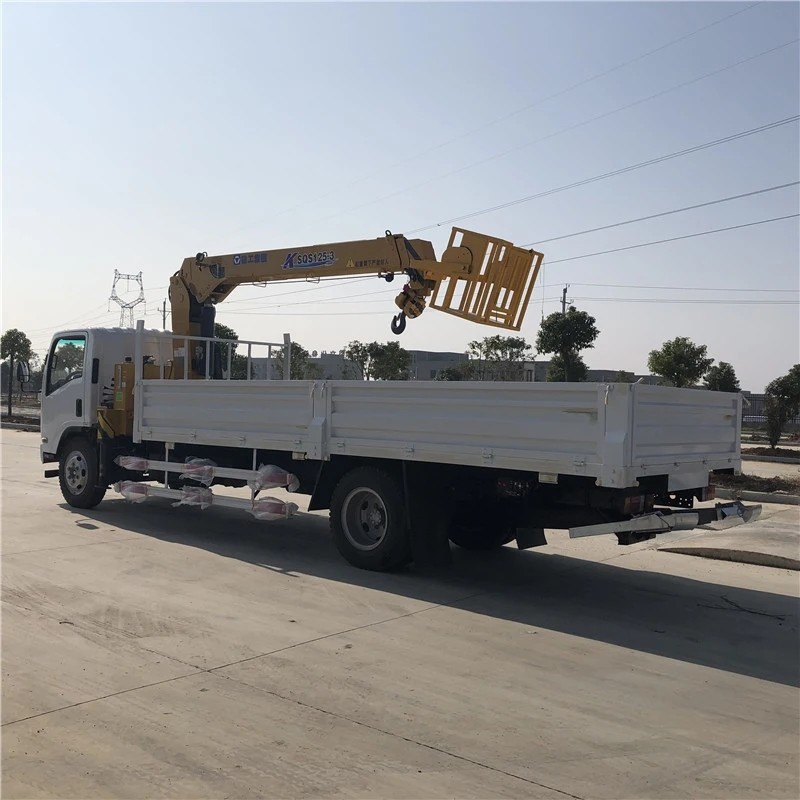

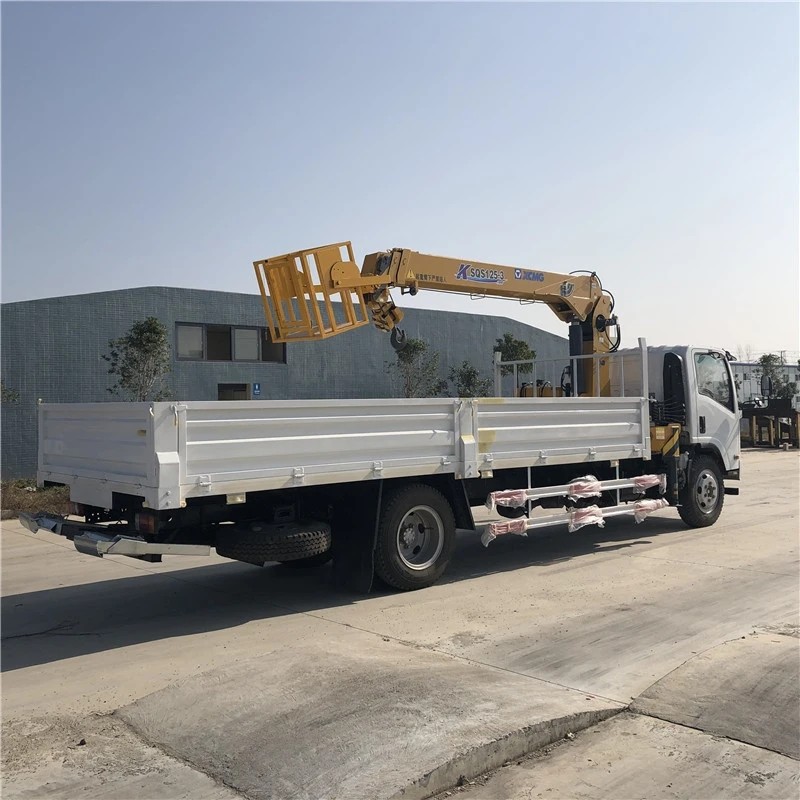

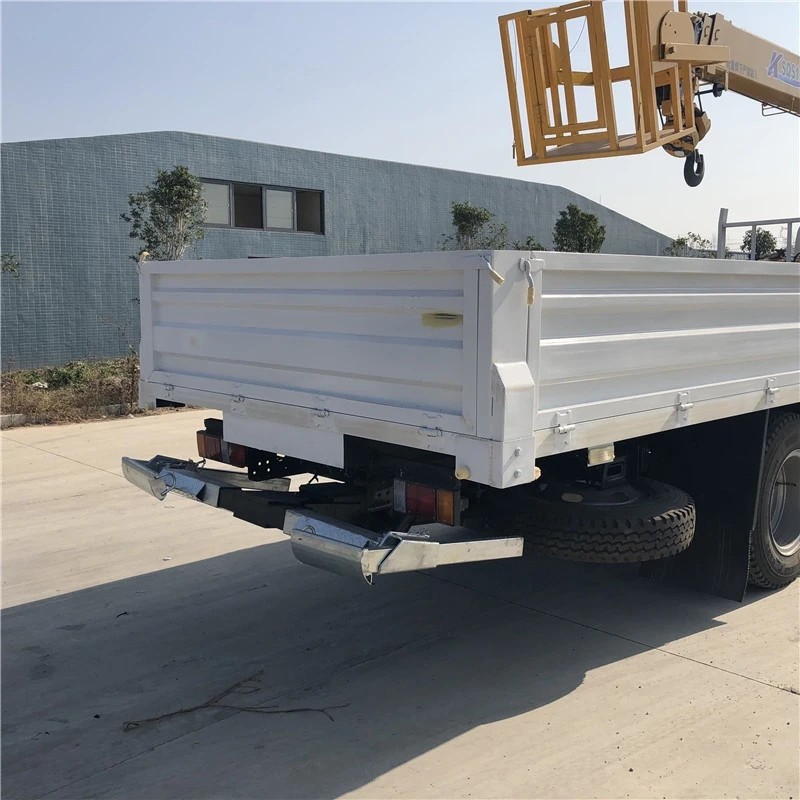

Isuzu 8t crane with wrecker Rear Drag arm system Isuzu 8 ton truck with crane Isuzu 8 ton crane truck Isuzu 8 ton truck crane with rear Drag arm Isuzu 8t crane truck
