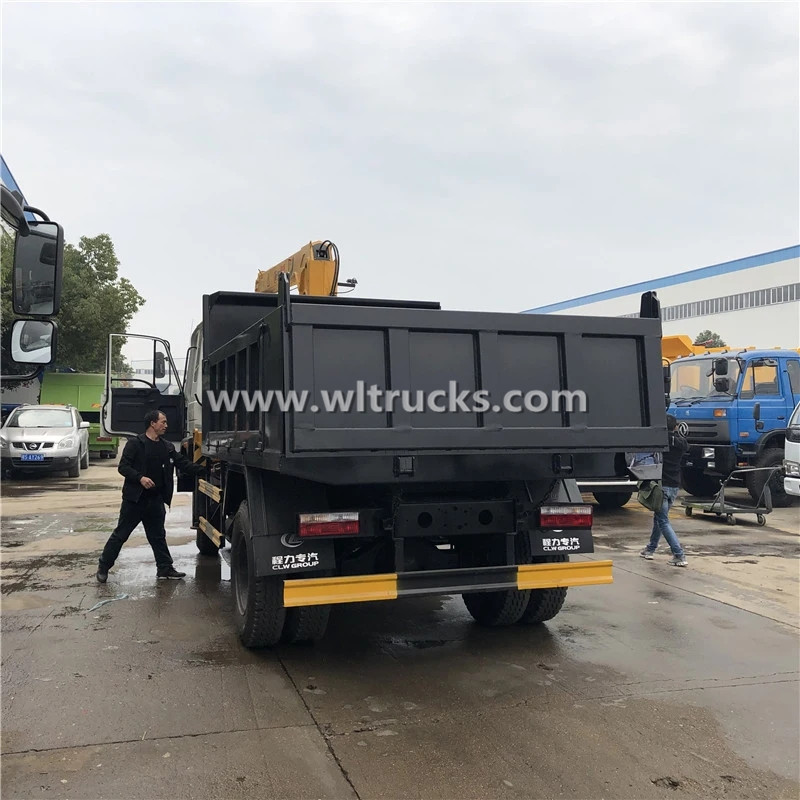

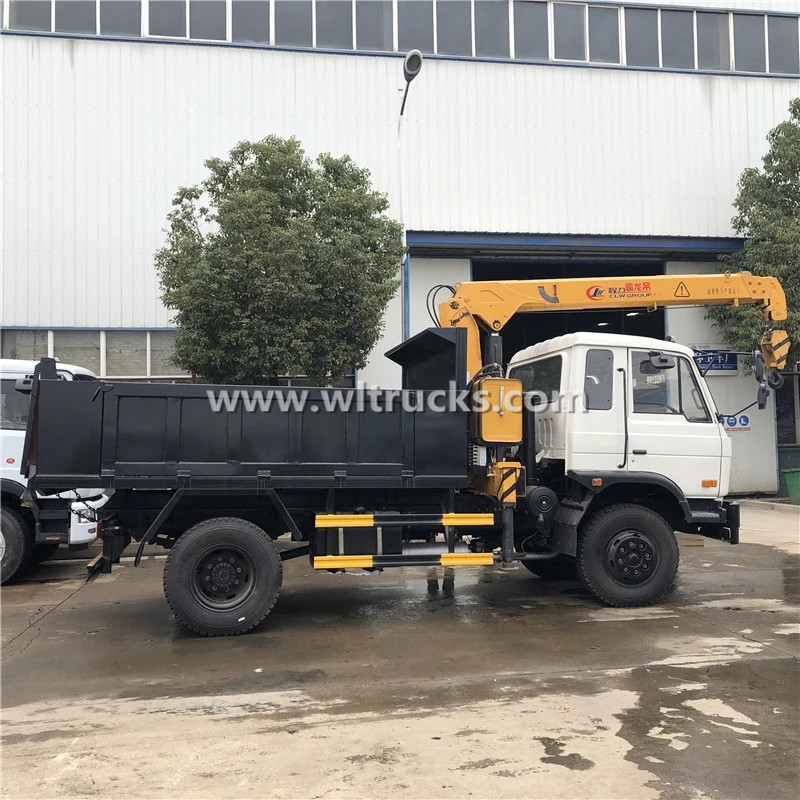

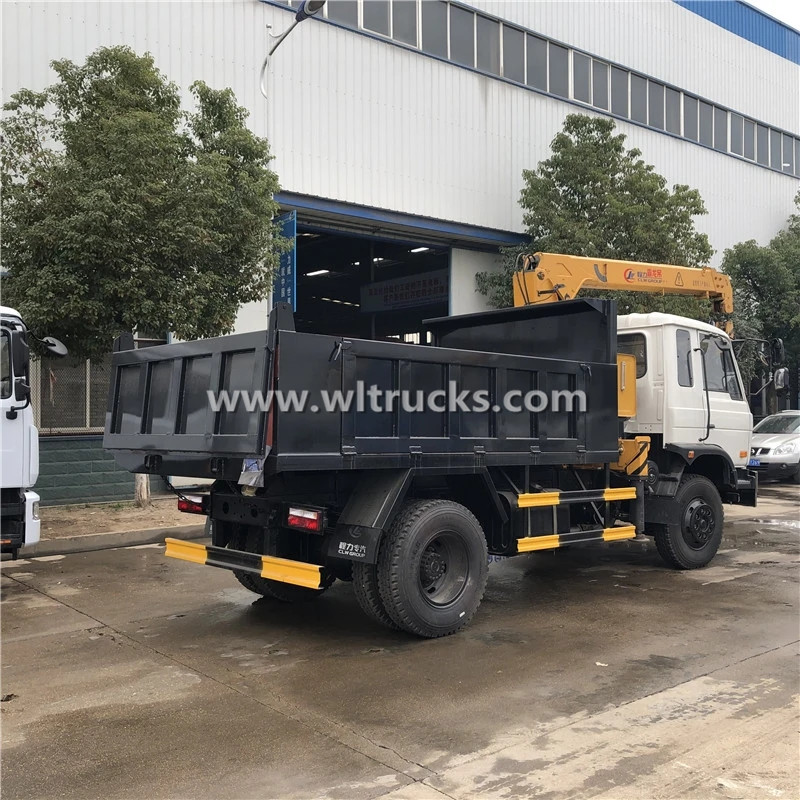

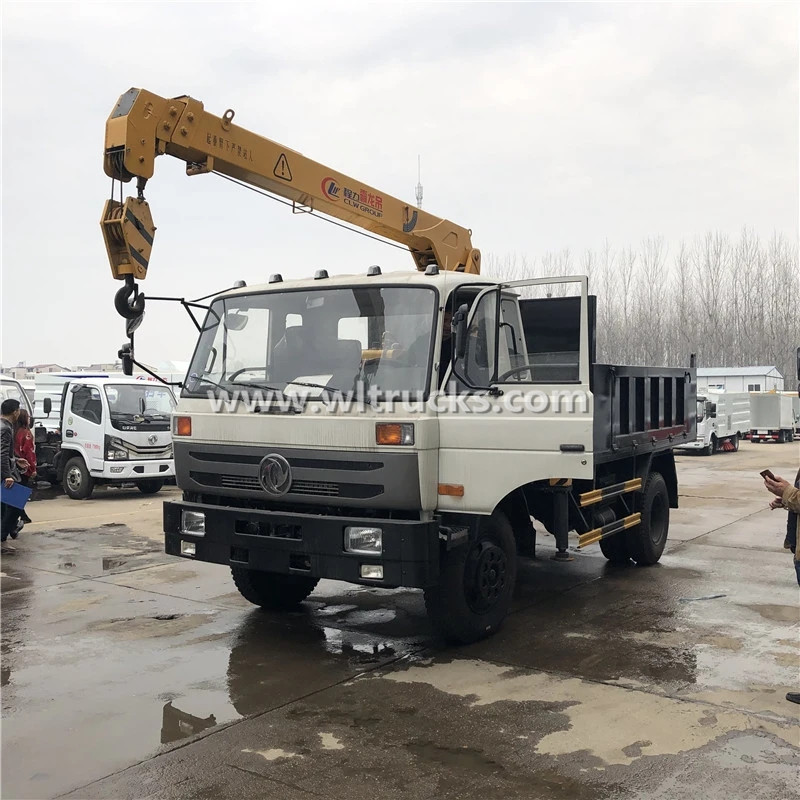

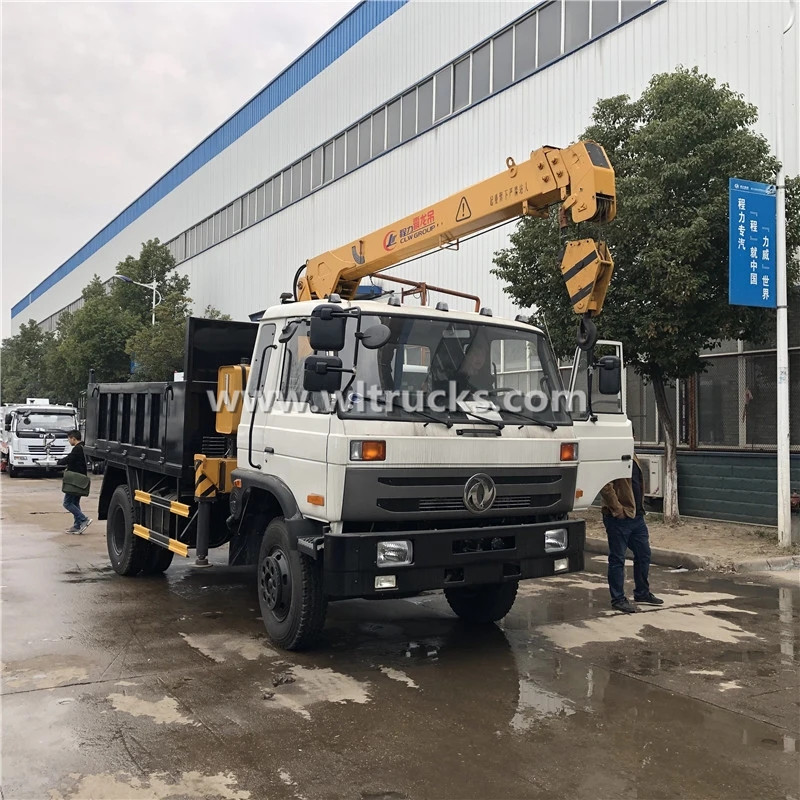

Dongfeng 4X4 All-Terrain Telescopic Boom Truck Mounted Crane with dumper function photos
6.3 tons crane standard configuration:
| Model | SQ6.3SA2 (6.3 tons, 3 arm) | |||||||||||
| Max loading weight | 6.3 | |||||||||||
| Max torque t.m | 15.12 | |||||||||||
| Cross section form | pentagon | switch back | Switch speedr/min | 2 | ||||||||
| Section number | 3 (extend two section) | Rotary range° | 360(arbitrarily) | |||||||||
| Length m | 4-9.4 | landing leg | model | H | ||||||||
| Max working radius m | 9.2 | Span m | 2.28-5.0 | |||||||||
| Extend speed m/s | 0.3 | Hydraulic system | System pressure mpa | 18 | ||||||||
| Amplitude range | 1-70 | Tank capacity L | 80 | |||||||||
| Arm speed°/s | 5.1 | Safety device | Overturn alarm | |||||||||
| maximum lifting height m | 11.5 | Self loading kg | 1900 | |||||||||
| Hook speed m/min | 12.5 | install space | 900mm | |||||||||
| diameter of wire rope mm | 9.3 | Chassis request | Loading above 5 tons | |||||||||
| Length of wire rope m | 70 | |||||||||||
| Lifting capacity | ||||||||||||
| working radius m | 2.5 | 3.0 | 4.0 | 5.0 | 6.0 | 7.0 | 8.0 | 9.2 | ||||
| Rate loading kg | 6300 | 4600 | 3000 | 2000 | 1190 | 930 | 750 | 600 | ||||
