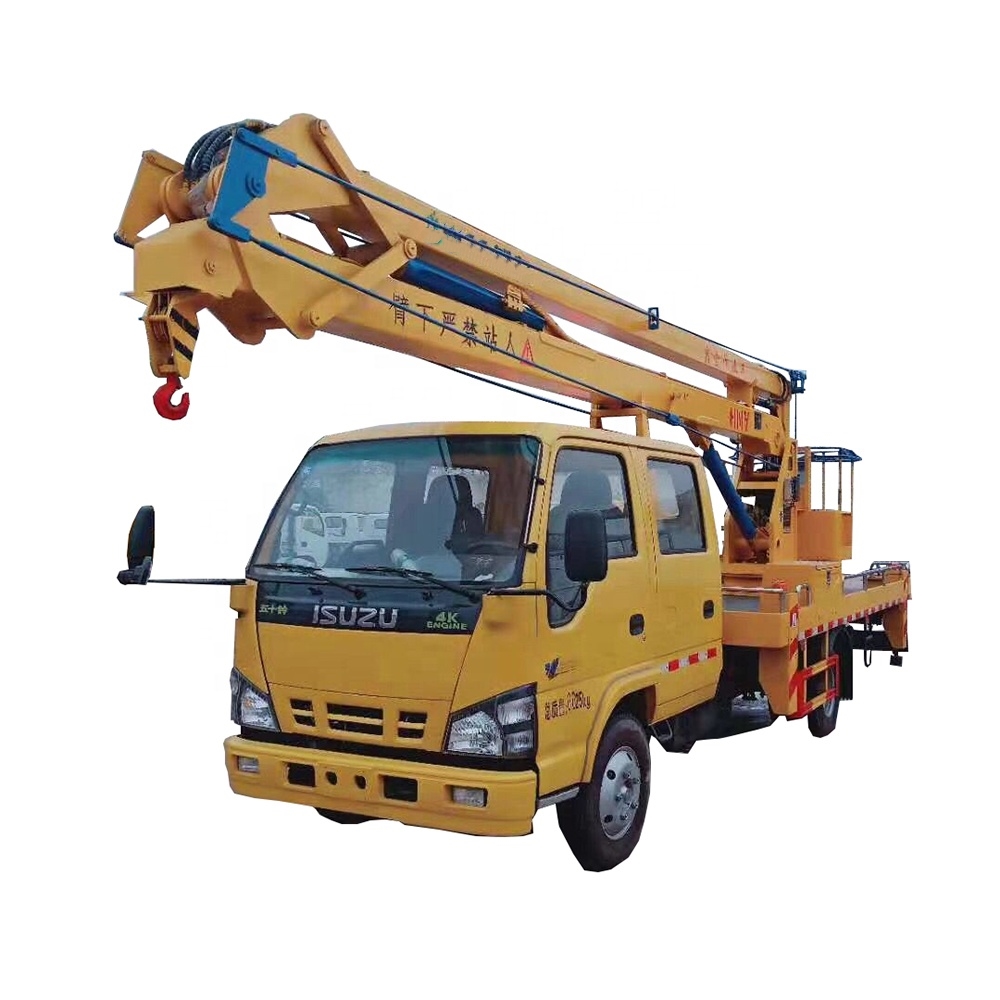

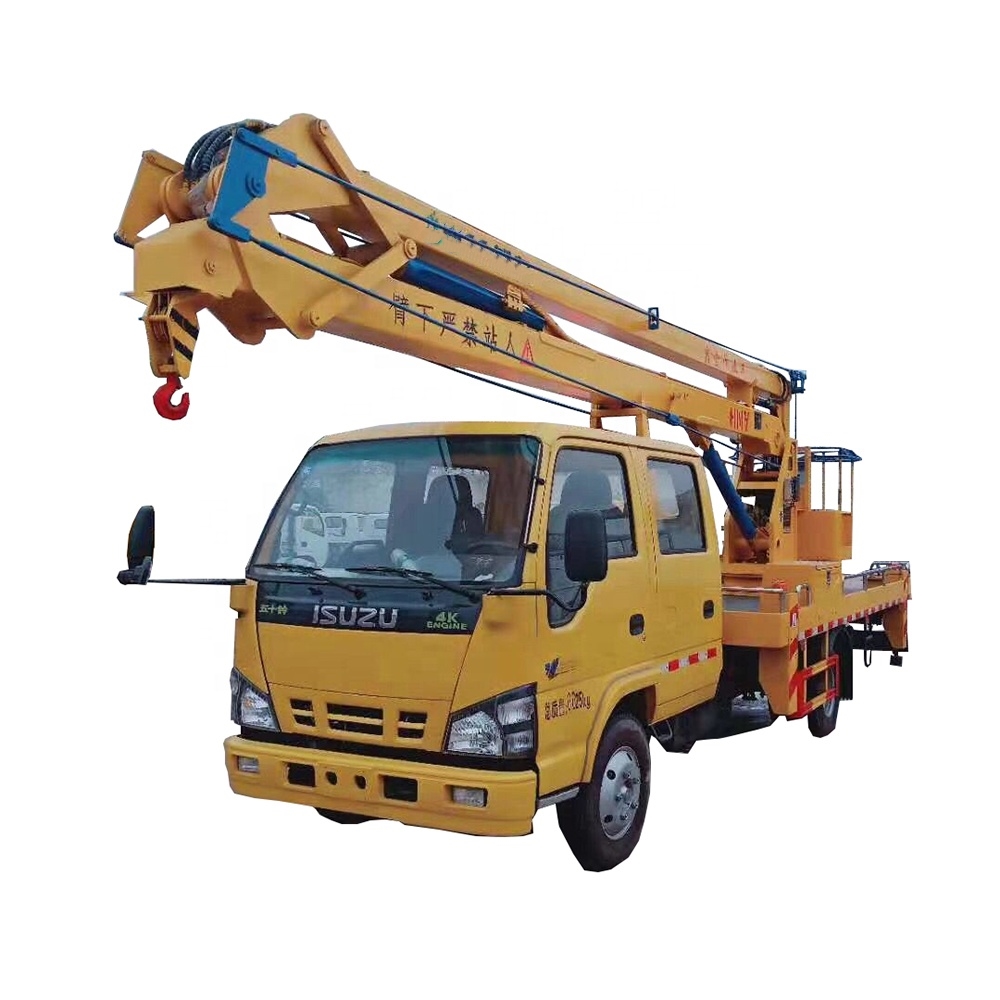

Isuzu 18m folding arm aerial platform truck, Adopt 600p double-row cab, the overall size is 8600x2090x3550mm. Chassis model QL1070A5KWY, engine model 4KH1CN5HS, Isuzu engine 120 hp, 2-2.5 tons front axle, 4.8 tons rear axle, 7.00-16 tires, dual circuit oil brake, with air conditioning, directional boost, ABS, 5-speed gearbox.

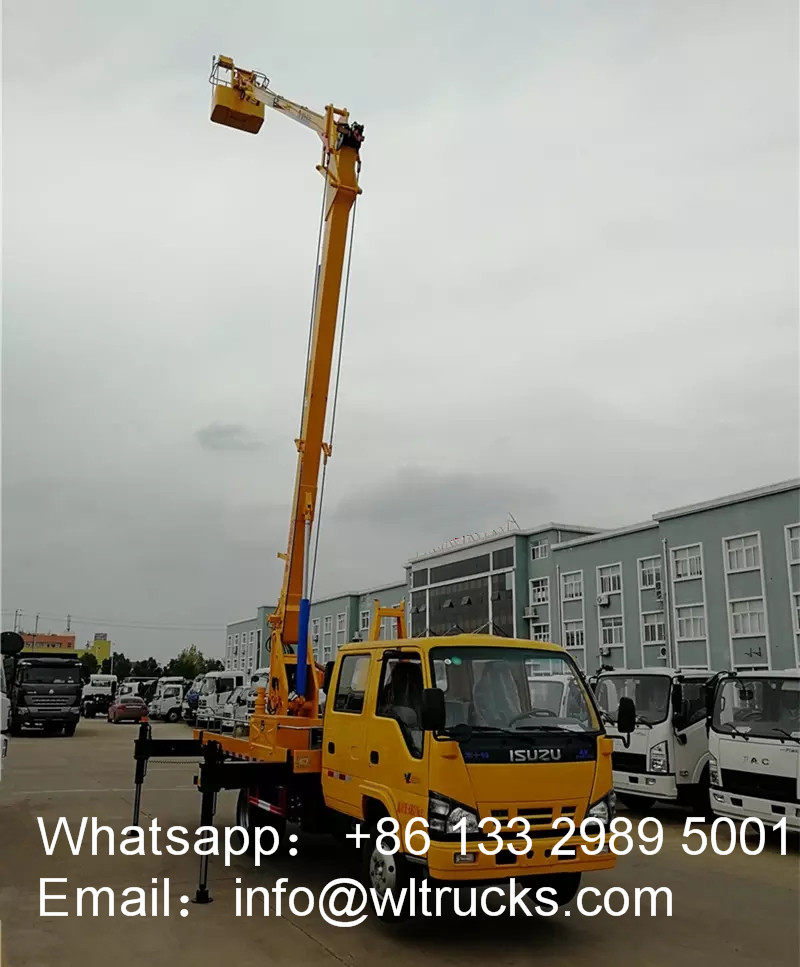

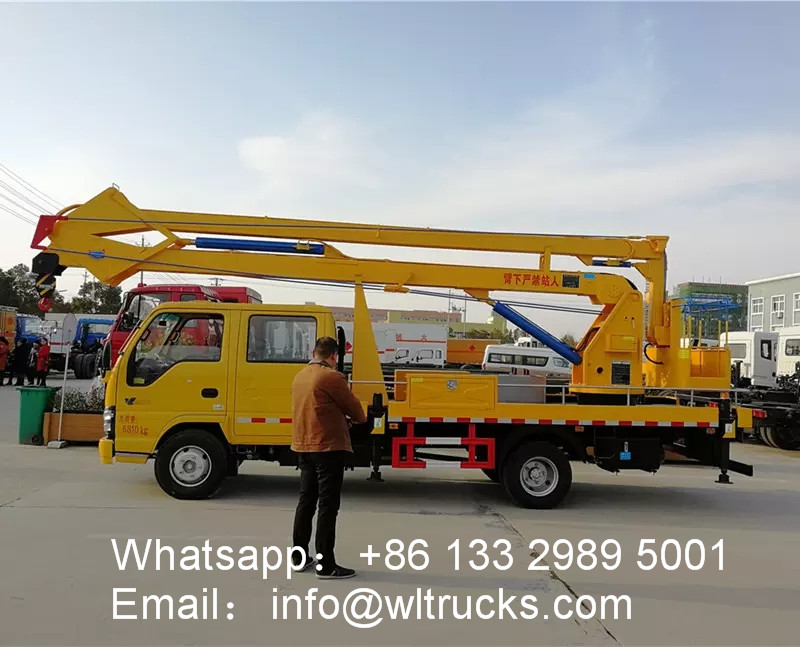

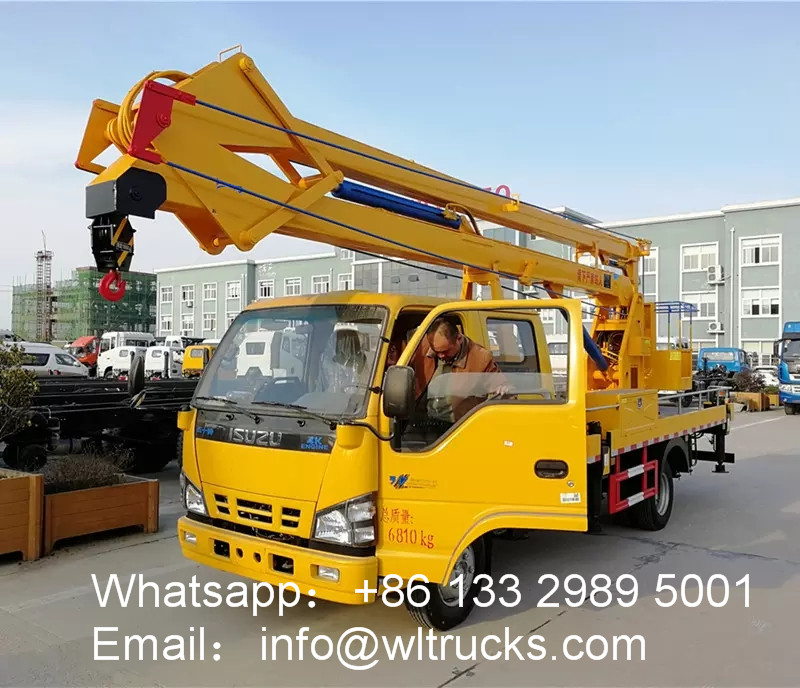

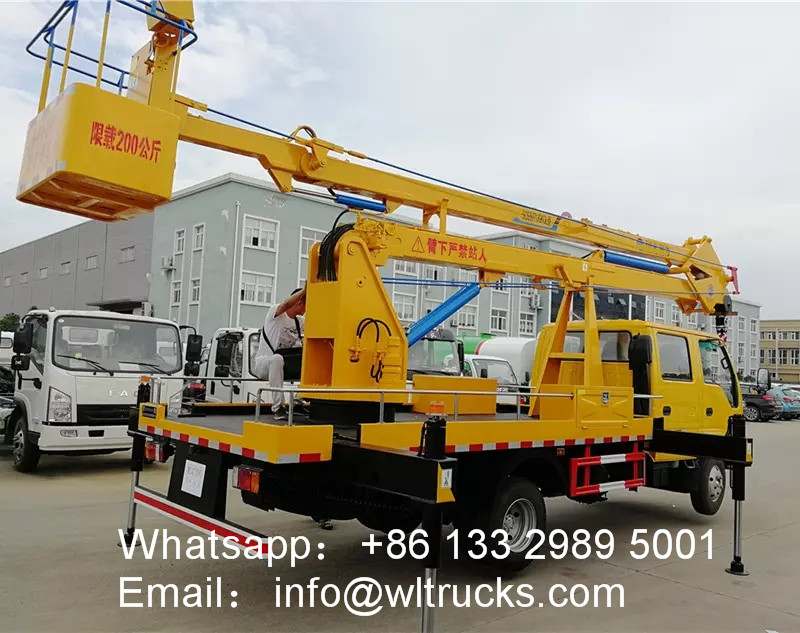

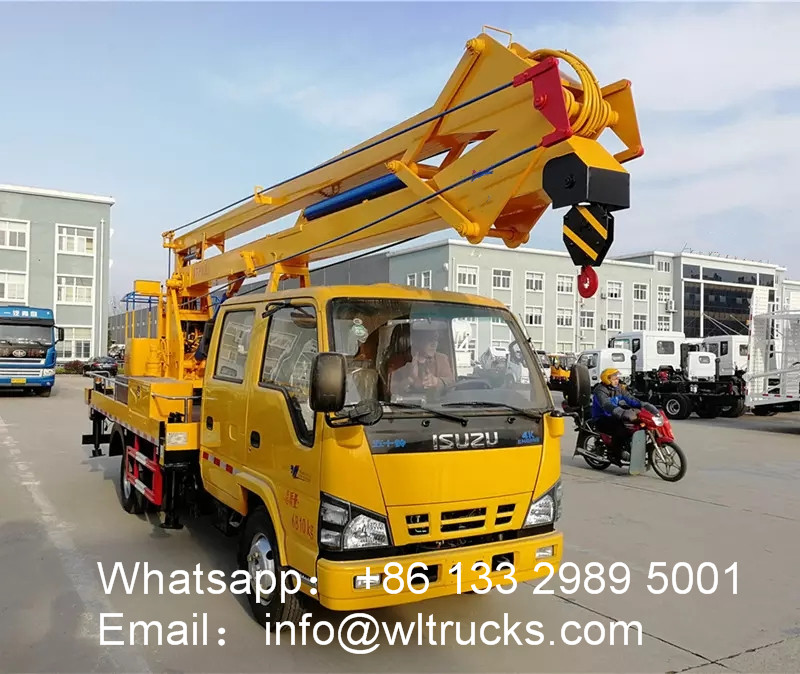

Isuzu 18m folding arm aerial platform truck top is a three-section folding arm with a fixed hook, the maximum lifting weight is 1000KG, and the maximum lifting height is 8.3 meters. The maximum operating radius is 7.5 meters, the maximum operating height is 18 meters, and the rotation is 360 degrees. Hydraulic support legs span distance: 4840 longitudinally and 3780MM horizontally. Hanging blue rated load ≤200KG. Hanging blue size: 10806101100MM.

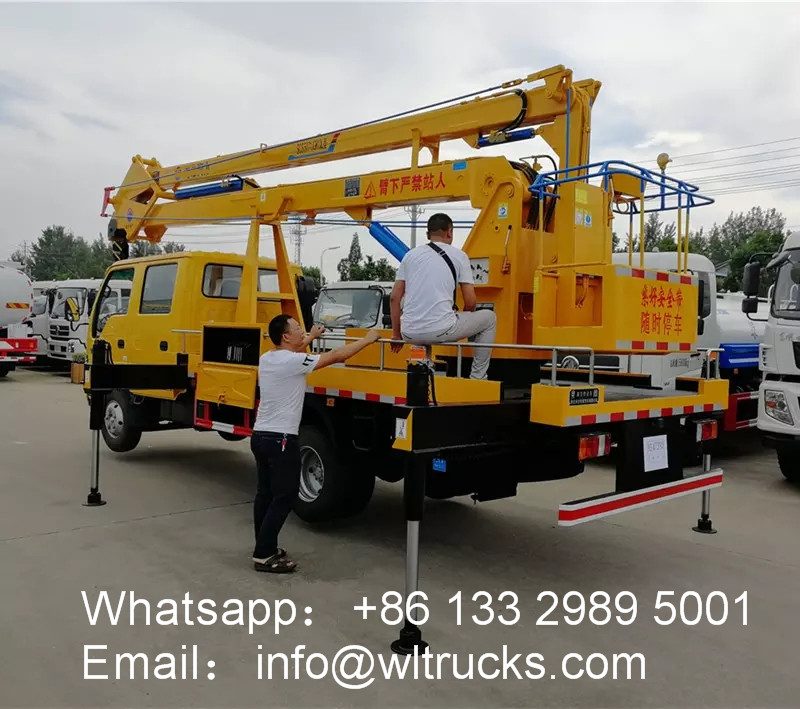

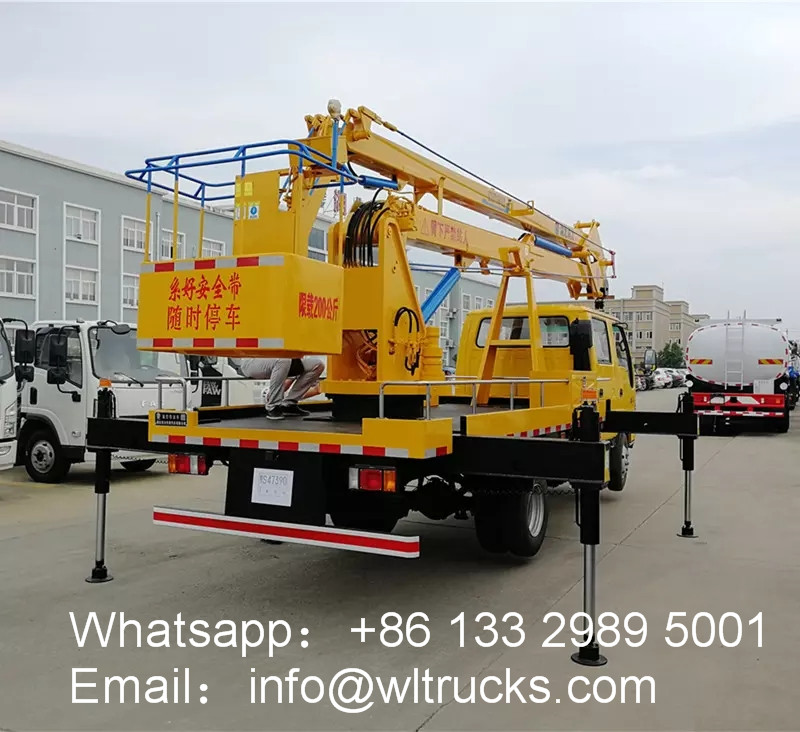

Isuzu 18m folding arm aerial platform truck external tie rod is mechanically leveled, with cylinder locking function, dual-position operation of turntable and crane, electronically controlled hydraulic operation, all four legs are extended horizontally, the balance tie rods are all solid, and the stainless steel guardrail is also provided.
