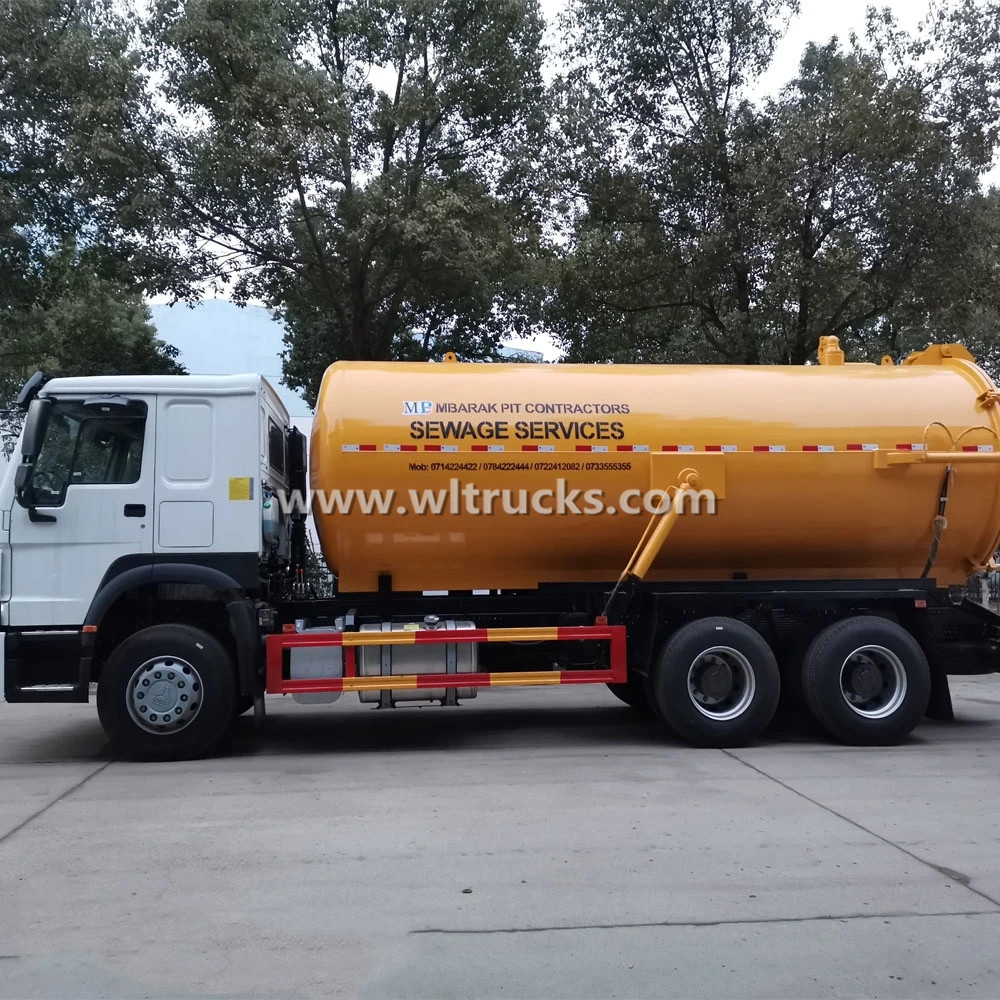

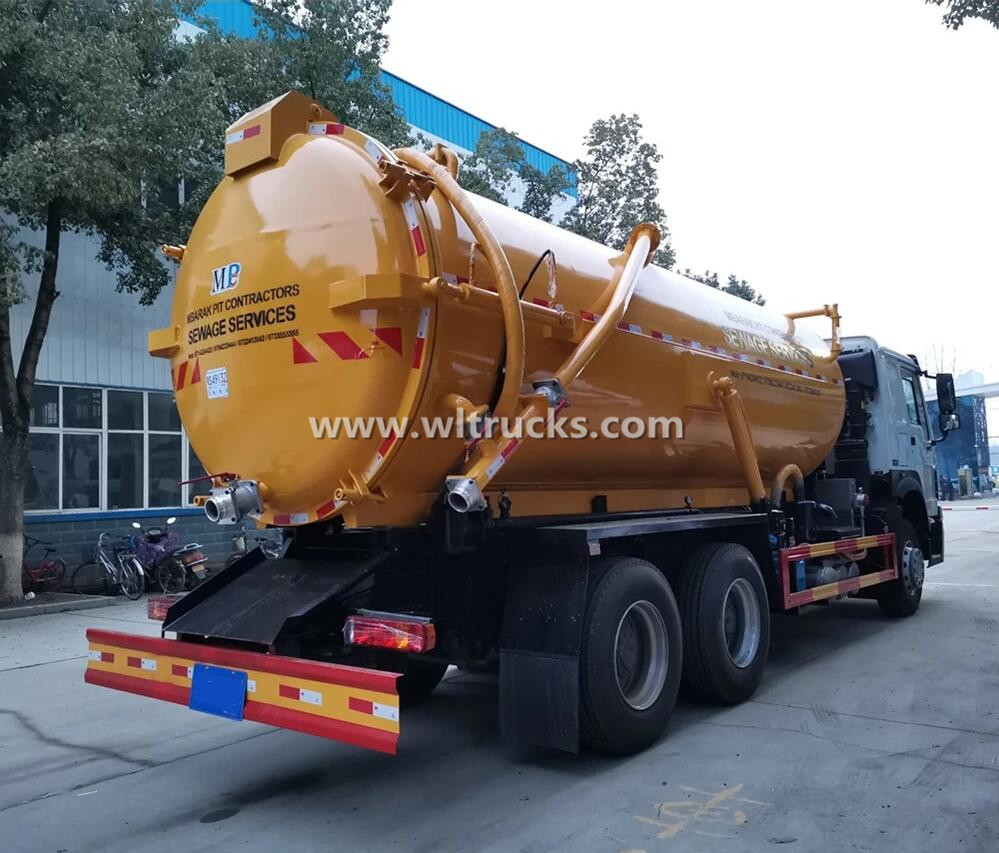

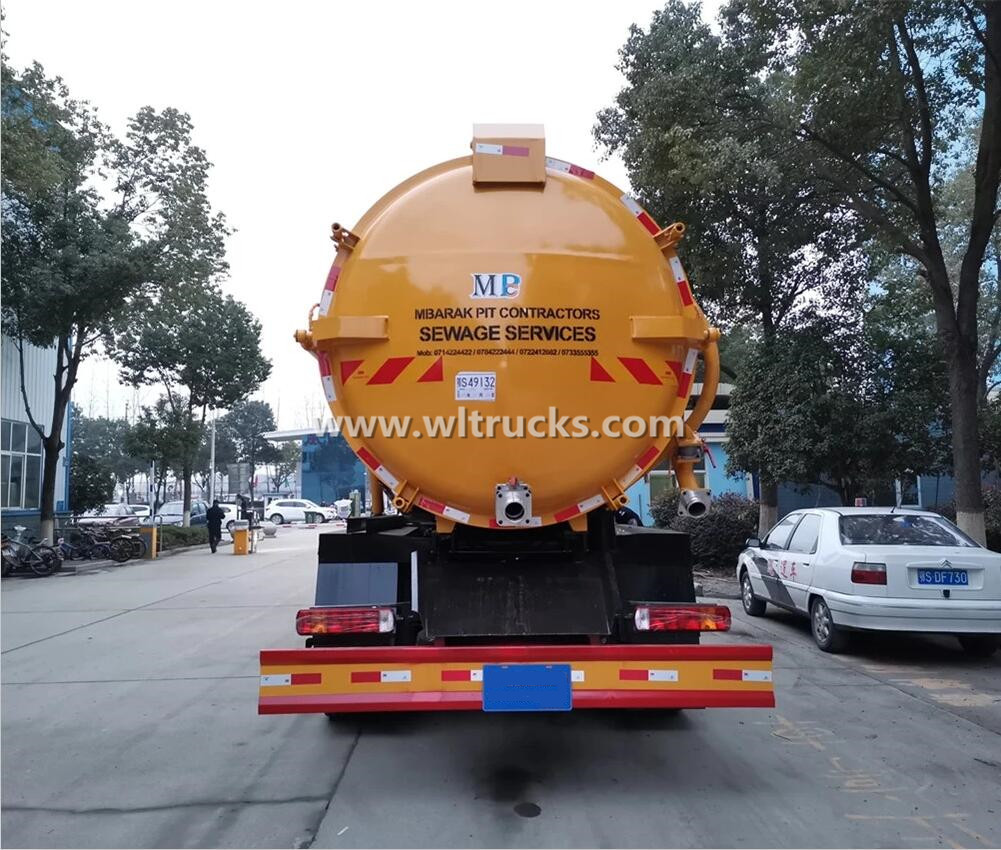

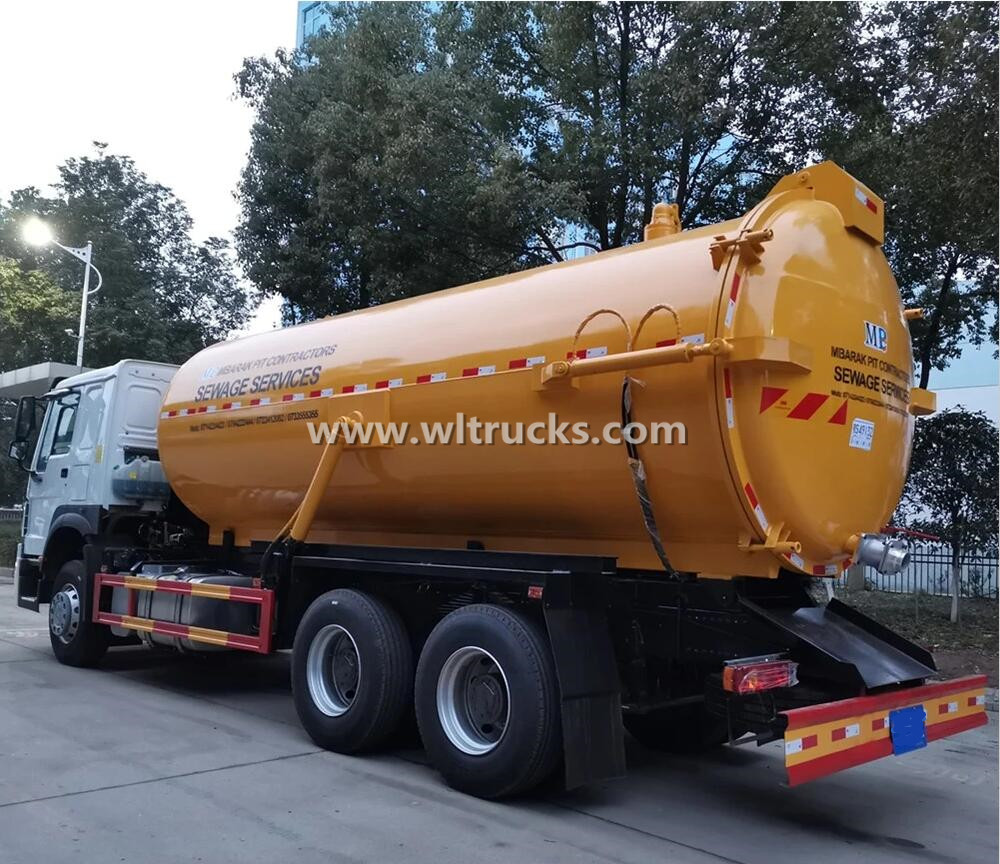

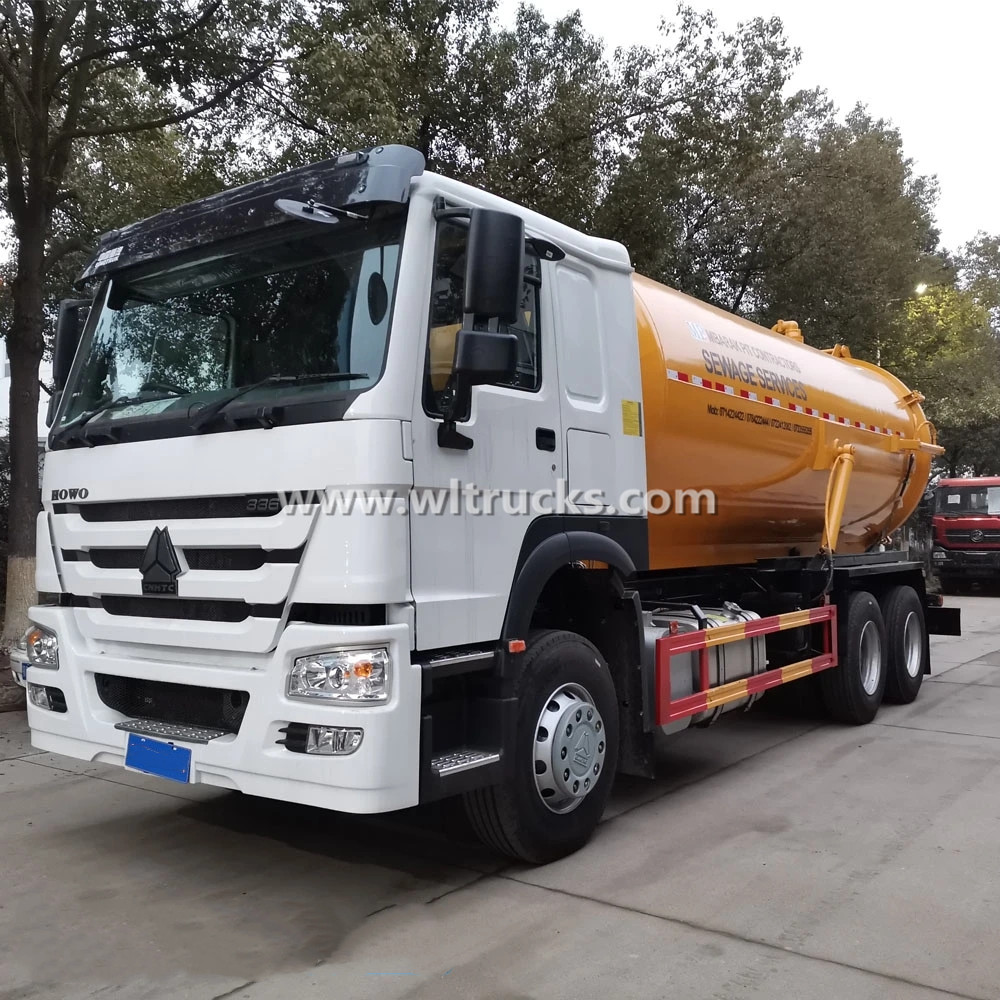

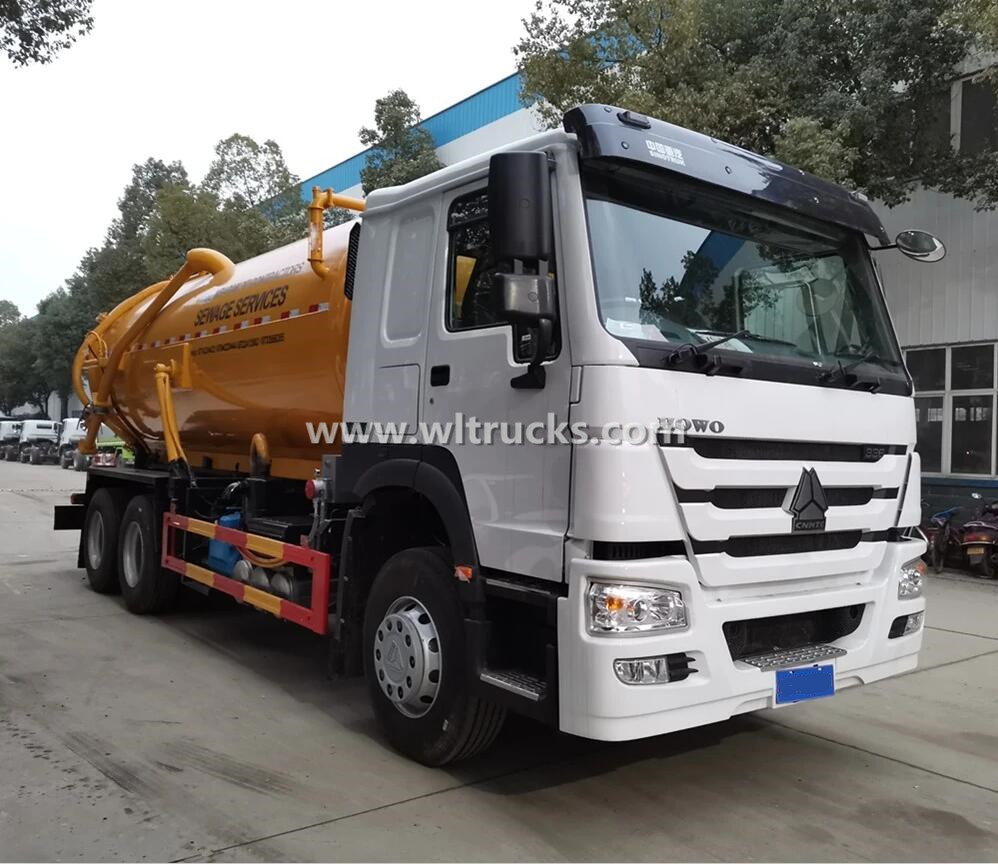

6X4 Sinotruk HOWO 20cbm Sewage Suction Tank Vacuum Truck photos
| Upper-Body specification | |||
| Volume of tank | 18m³ /20m3 | ||
| Color | Painted in the corporation’s colours with logo on both front doors as specified by the client | ||
| Material of tanker | 5mm Carbon stell (Q235) | ||
| Special function | Suction height | ≥9(m) | |
| Suction time | 250(S) | ||
| Maximum Inclination Angle | ≥45° | ||
| maximum vacuum | ≥11 MPa | ||
| Lifting time | ≤45 S | ||
| the Cover opening Angle | ≥75° | ||
| The cover opening time | ≤25 S | ||
| Suction pipe | 3m length and 100 mm in diameter | ||
| Hose Racks | Fitted on both sides of tank, to accommodate a minimum of seven hoses each | ||
| Fittings | Four-way change valve fitted to pump Drain separator vacuum pump Fully opening rear door Sight glasses at top and bottom of tank Ladder: For access to top of tank complete with cat walk on top of tank |
||
| vacuum pump | pump type | SK-30 | |
| motor power (kW) | 11 | ||
| weight (Kg) | 460 | ||
| pump speed (r.p.m) | 1440 | ||
| suction pressure (MPa) | 5.4 | ||
| diameter (mm) | 80 | ||
| Brief introduction of function | It is formed of PTO, transmission shaft, vacuum pump, tanker, hydraulic system and pipe system. | ||
