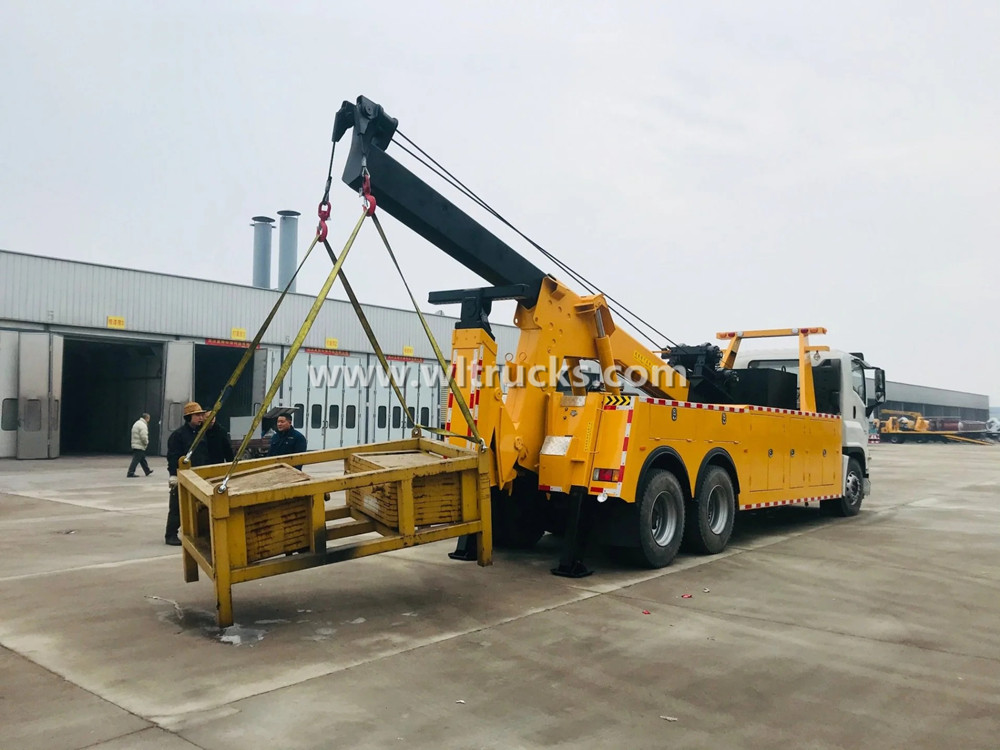

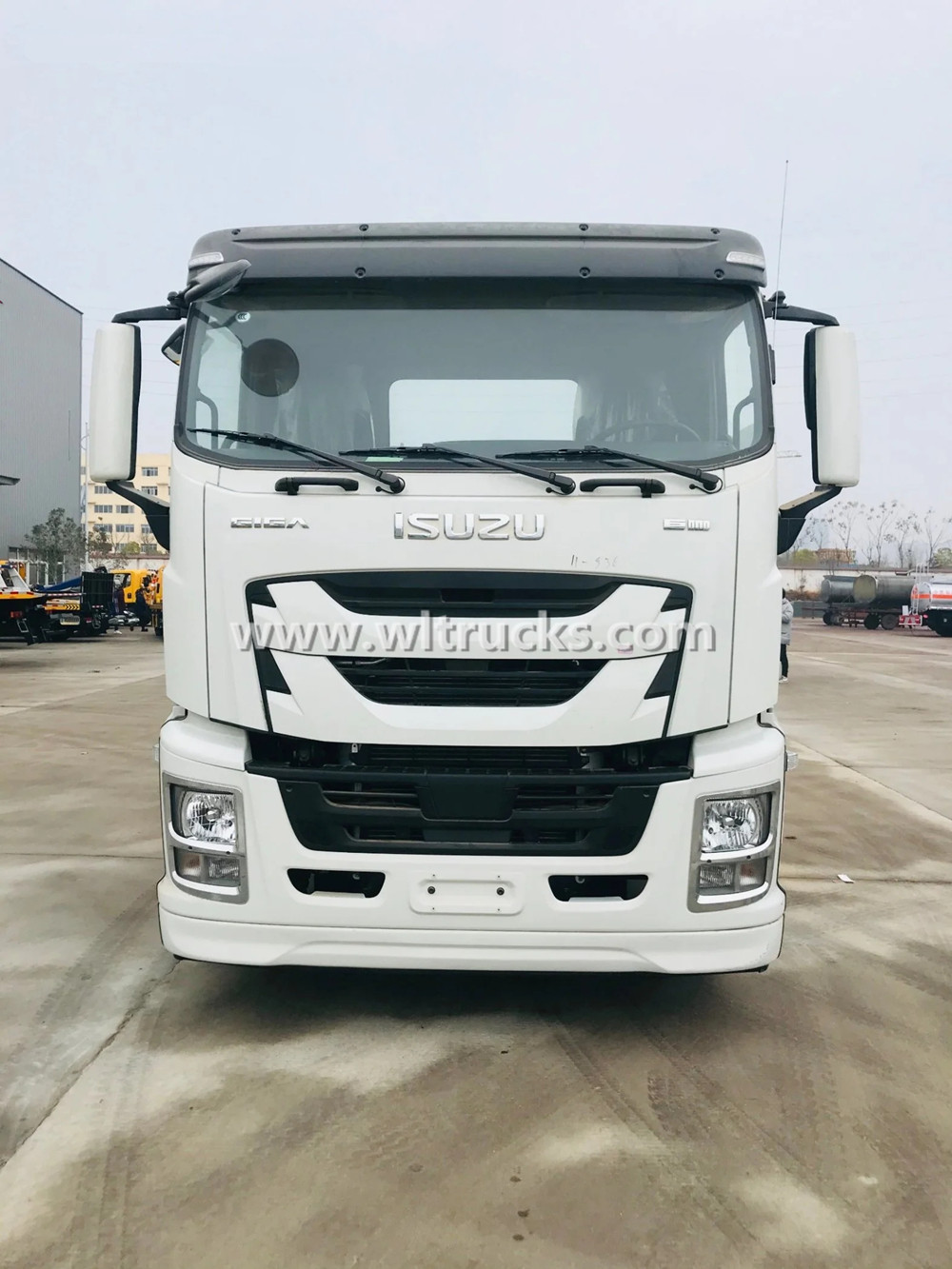

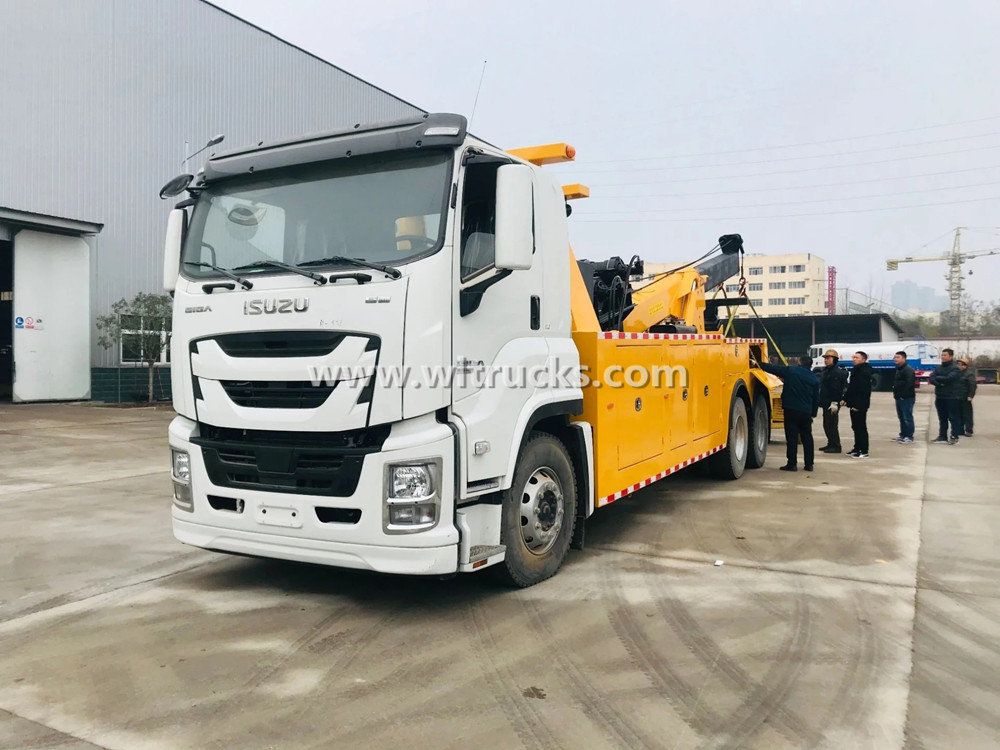

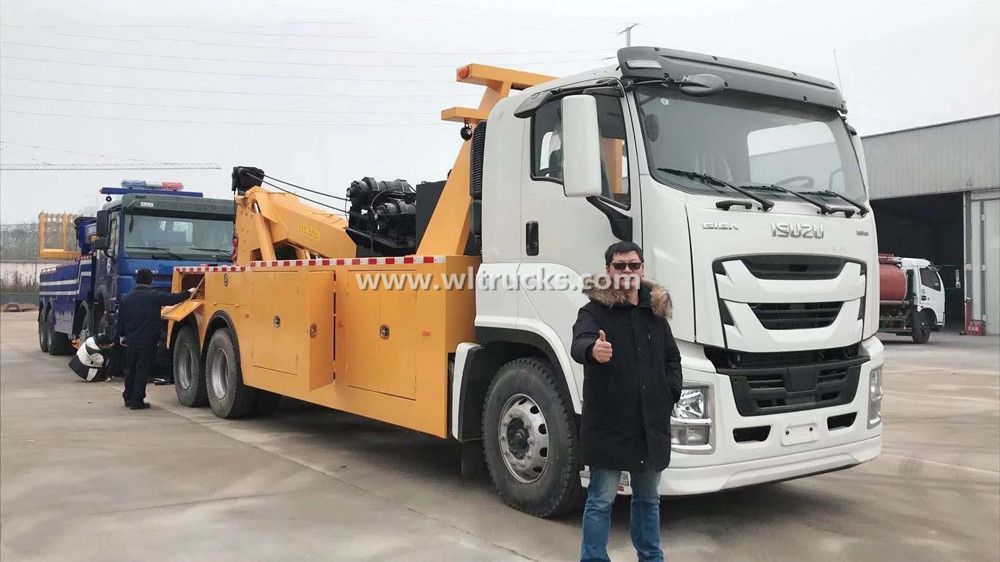

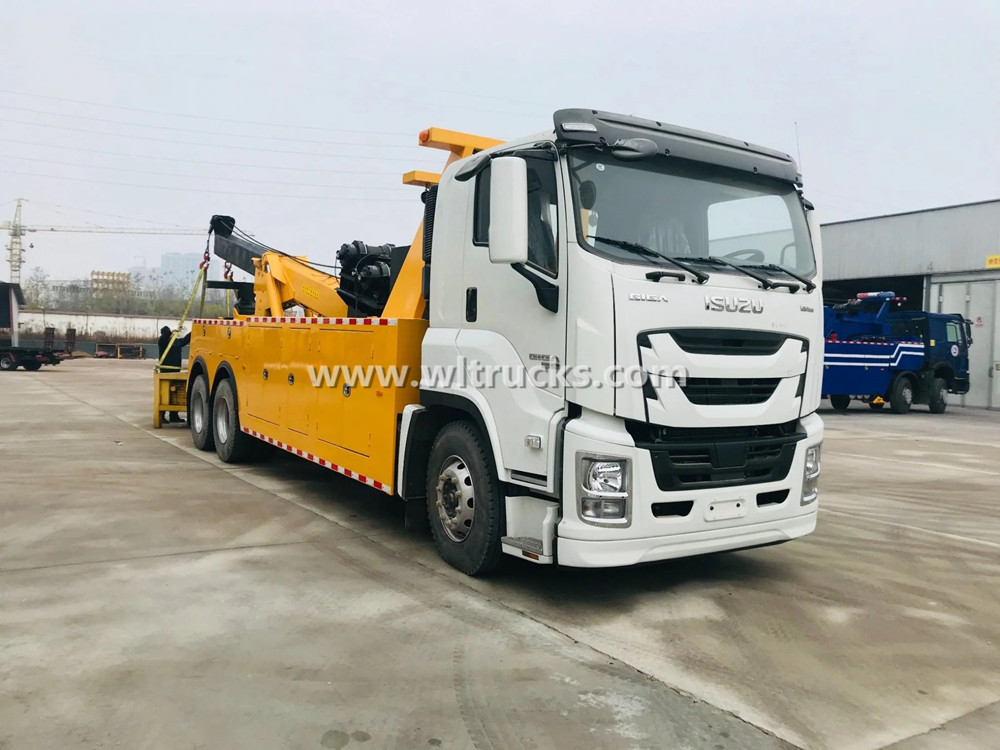

10 wheels Isuzu 20 ton wrecker Recovery Truck photos
| TOWING EQUPMENT | ||
| BOOM SYSTEM | MAX.LIFT WEIGHT(kg) | 30000 |
| MAX.LIFT OF FULLY EXTANDED(kg) | 4500 | |
| LENGTH OF 1ST STAGE BOOM(MM) | 5300 | |
| TOTAL LENGTH OF BOOM (MM) | 8380 | |
| HIGH OF LIFT(MM) | 8680 | |
| MOVE ANGLE (0) | 0~50 | |
| ROTATOR(0) | 360 | |
| HOIST SYSTEM |
MAX LIFT(kg) | 16000 |
| MAX LIFT AT FULL EXTEND(kg) | 7500 | |
| LENGTH OF ARM(mm) | 1375~3014 | |
| IN LENGTH | 1639 | |
| MOVE ANGLE(0) | -10~93 | |
| TITLE ANGLE(0) | -10 | |
| WINCH | AMOUND(PC) | 2 |
| RATE TRACTOR LOADING | 15000X2 | |
| DIAMETER OF WIRE CABLE(mm) | Φ20 | |
| LENGTH OF WIRE CABLE(m) | 45X2 | |
| MIN.LINE SPEED OF WIRE LINE | 5 | |
| SPORT LEG | AMOUNT(PC) | 4 |
| FRONT / REAR LEG SPAN(mm) | 6000/4300 | |
| SUPPORT FERTILITY(kN) | 120 | |
