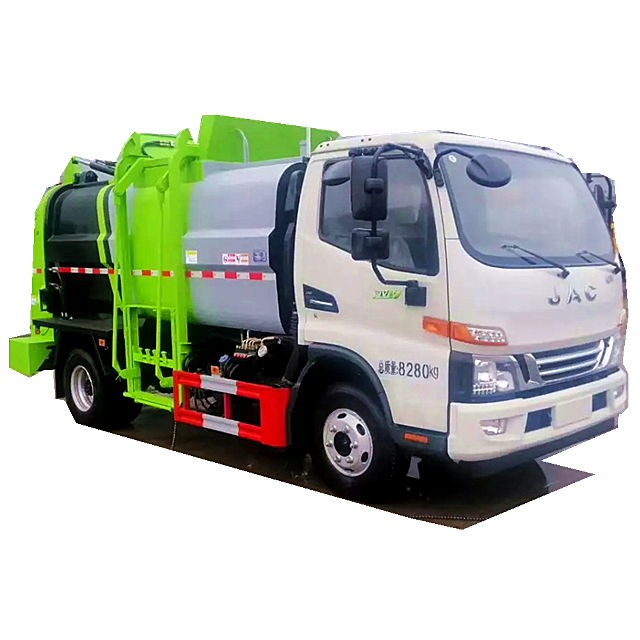

JAC 5000 liter Kitchen garbage Truck Product Description:
JAC 5000 liter Kitchen garbage Truck Chassis configuration: JAC’s new Junling cab, Euro five Weichai 130 horsepower engine, wheelbase: 3300mm, tire specifications: 700R16 tires.
JAC 5000 liter Kitchen garbage Truck Bodywork configuration: The square box (volume is about 5 cubic meters) all uses Q235 high-quality carbon steel edge 5 bottom 6; push shovel discharge (without lifting function); with dry and wet separation function; Italian Hyde valve group; hydraulic back cover; With sealing strip; rear door hydraulic locking;
Inlet cover pneumatic switch; rear door locking and rear cover switch operation has anti-misoperation; hydraulic chain hoist; side hanging standard 120L / 240L plastic trash can; built-in cab and body external centralized electronic control (PLC electric Control system); box with cleaning device (hydraulic motor drives high-pressure pump, with clear water tank); high-level body contour lights / side lights / work lights.
New technology: aluminum alloy mudguard, aluminum alloy guardrail, stainless steel ladder, stainless steel platform, stainless steel tail slot.
JAC 5000 liter Kitchen garbage Truck Specifications:
|Chassis technical parameters|
|Chassis name||JAC||Chassis model||HFC1041P91K1C5ZV|
|Number of axes||2||Number of tires||7 (including spare tire)|
|Gearbox||5 files||Rear axle||4 tons|
|Fuel type||Diesel||brake||Air brake|
|Emission standard||GB17691-2005 National V, GB3847-2005|
|engine model||Engine manufacturer||Displacement (ml)||horsepower|
JAC 5000 liter Kitchen garbage Truck Working parameter:
|【Vehicle technical parameters】|
|Tank volume (m3)||3-12 cubic meters optional||Tank material||Carbon steel Q235, stainless steel 304|
|Structure inside the tank||Dry-wet solid-liquid separation||Thickness of tank (mm)||4-6mm|
|Unloading method||Self-unloading, pushing plate, twisting dragon||Feeding method||Hydraulic bucket flip|
|Tailgate leakproof||Thickened rubber + hydraulic lock||Bucket method||Chain lifting, lever lifting|
|Control position||Cab, right side of body||Hydraulic pressure (MPa)||16|
|control method||Manual + electric control, PLC automatic control||Hydraulic pump brand||Long source and large flow|
|Cleaning device||Hydraulic pump + plunger high pressure pump + 7 meter cleaning gun||Multi-way valve brand||Jiangsu Electromagnetic|
|safety devices||Rear door lock and rear cover switch interlock to prevent misoperation||Hydraulic cylinder brand||Yantai future|
|Optional configuration||Optional PLC one-button operation, optional 304 stainless steel box, optional sealed twisted dragon discharge, etc.
Optional barrel weighing function, can count the number of barrels, single barrel weighing, set the company name of the barrel collection, GPS positioning of the barrel collection, data background upload, display screen cab monitoring and other functions.
If customers have other unconventional requirements, they can organize technical solutions and customize production according to requirements.
JAC 5000 liter Kitchen garbage Truck Operation display:
Kitchen garbage Truck Round tank process: cylindrical tank body with tie rod hoist, double cylinder hydraulic lifting and self-unloading at the bottom of the tank body, hydraulic opening and locking of the tank tail door + manual locking device, solid and liquid separation device inside At the end of the tank, a liquid self-flow valve, a liquid level window, a tool box and a hand washing device are installed.
JAC 5000 liter Kitchen garbage Truck New craft:
JAC 5000 liter Kitchen garbage Truck Optional configuration：
JAC 5000 liter Kitchen garbage Truck Detail drawing:
Customizable garbage truck models
