Sinotruk Howo vacuum road sweeper truck is a self-developed environmentally friendly, sweeping and suction combined road sweeper special vehicle, which is mainly used in the mechanized sweeping and cleaning operations of city streets, municipal squares and large factories and mines. Reliable, beautiful, and practical.
This road sweeper follows the shape design of other factory sweepers of our factory. It adopts a wave-shaped body with white and blue paint. The body is sprayed with the words sweeper. The appearance is simple, generous, harmonious and beautiful. This model has a wheelbase of 3300mm.
HOWO 5 cubic meters vacuum road sweeper truck Vehicle configuration: Jiangxi Isuzu 57kw auxiliary engine, maintenance-free automatic clutch, high-quality maintenance-free fan, Huibo joint venture solenoid valve group, wear-resistant hydraulic cylinder, Siemens electronic control switch, Q345 low-alloy anti-corrosion water tank, garbage bin, left and right front Sweep and rear suction cup spray pressure system, front sweep automatic avoidance function, maximum sweep width 3.2 meters, maximum suction particles ø100mm, maximum operating capacity 4500m2-9000m2 per hour, equipped with two-way operation buttons and high-pressure washing function. The cleaning efficiency reaches more than 96%.
HOWO 5 cubic meters vacuum road sweeper truck hydraulic oil pump is imported from Italy, the solenoid valve is imported from Germany, the hydraulic pipeline adopts the German standard technology sealing structure, the key control components adopt French Schneider technology components, long service life, stable and reliable, low failure rate, hydraulic components are integrated and superimposed Design, centralized electro-hydraulic control of the cab, easy to operate, the sweeping plate has an anti-collision hydraulic control automatic avoidance function, the sweeping plate cleaning method can be selected according to the severity of the ground sand and mud and the driving speed, the suction nozzle is a rear floating type, which can automatically Adjust to adapt to the uneven surface of the ground, adjustable spray spray water pressure dust, while eliminating water while eliminating
HOWO 5 cubic meters vacuum road sweeper truck Specification:
|General Technical Parameters|
|Overall Dimension||5950X2000X2500 (mm)|
|Gross Vehicle Weight||8000(Kg)|
|Chassis Brand||Sinotruk Howo|
|Cabin||Howo 1880 single row, LHD, with air condition.|
|Number of Passengers||2|
|Engine||Model||CY4100ZLQ/95HP, 4-stroke direct injection , 4-cylinder in-line, turbocharged intercooled, with ABS.|
|Emission standard||EURO 2|
|Gearbox||WLY6T100, 6Forwards & 1Reverse, manual operation, with power steering.|
|Brake System||Oil break|
|Front/Rear Axle Loading||2000/3500(Kg)|
|Overhang||Mechanical Suspension, 11/9+7H|
|Tire||7.00R16, steel wire tire, 6pc with 1 spare tire|
|Sweeping Speed||3-20 km/h|
|Tank||Water Tank||Material||Stainless steel 304|
|Dust Tank||Material||Stainless steel 304|
|Maximum sweep width||2.8m|
|Maximum cleaning capacity||40000m³/h|
|Standard Configuration||1. Equipped with 2 sweeping brushes on each side;|
|2. Equipped with Sanyo Motor;|
|3. Equipped with HIP-SD-7 electromagnetic valve set;|
|4. Equipped with continuously variable speed automatic clutch;|
|5. Equipped with German Schneider control switch;|
|6. Equipped with maintenance-free centrifugal fan, vacuum tube, and rear suction device;|
|7. Equipped with electronic water pump(water-spray nozzle to restrain dust), and manual pump emergency system;|
|8. Equipped with hydraulic system(control box lift, rear door open);|
|9. Equipped with rear LED arrow lights;|
|10. User’s operation manual 1 set.|
|Optional Configuration||Front flush, rear sprinkler, side sprayer, self-cleaning function of dust tank, hose reel with water gun, foggy gun, reversing image monitoring, snow shovel, foggy gun, aerial work platform color is optional, etc.|

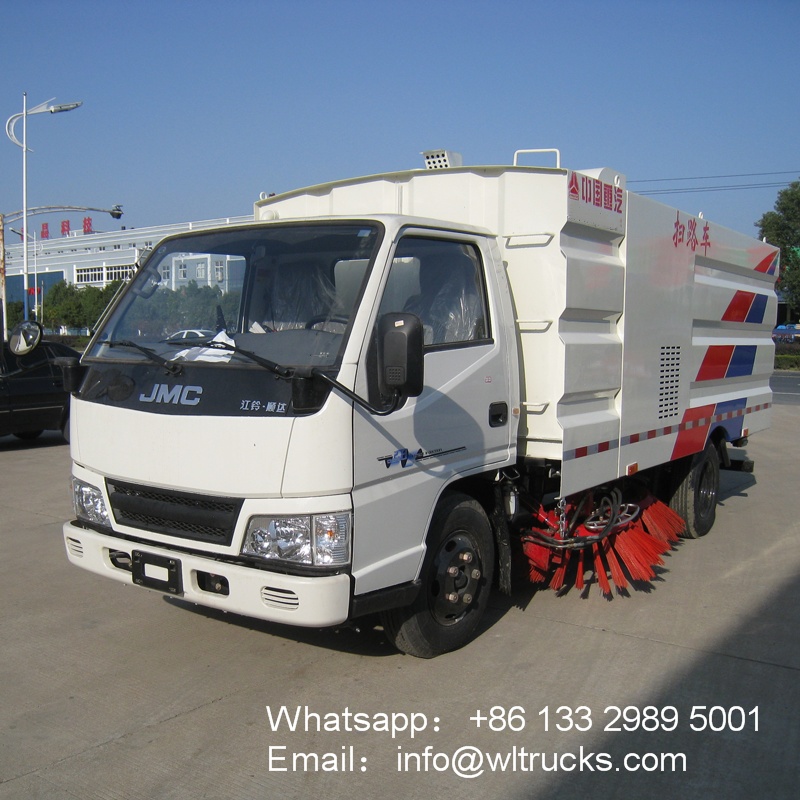

JMC 5ton vacuum sweeper truck detailed image
—- SGS, BV, COTECNA, CE certification.
—- Local engineer training support.
— Free parts for 12 months.
—- Supply of original parts.
—- DHL serves 7 days worldwide.
— 16 years of design and export experience.
—- 100% customized trucks.
—- Quick delivery guarantee.
—- Serving more than 80 countries and regions.
—- Professional guidance on import documents.
—- CO, FORM E, FORM P, pre-implantation inspection …
—- Maximize your shipping costs.
—- Professional guidance on import documents.
—- Safe, fast and timely
—- Fast shipping to all parts of the world.
—- The truck color and logo can be customized.
