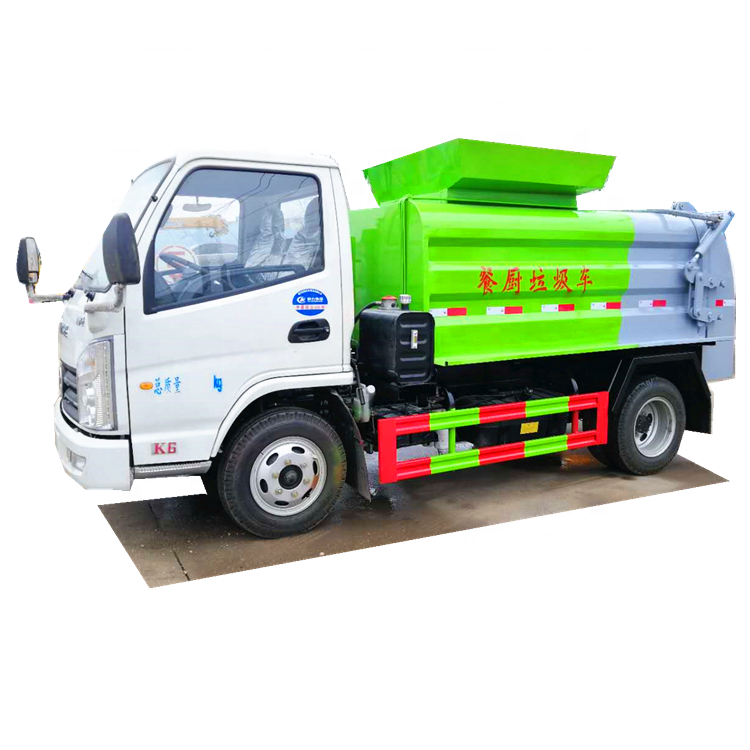

Foton 5000 liter Catering garbage truck Product Description:
Foton 5000 liter Catering garbage truck Chassis configuration: 3360mm wheelbase Futian small card star chassis, sheep fat white, single-row cab with 5-speed gearbox, oil brake, full diesel 90 horsepower engine, the chassis is more durable and affordable.
Foton 5000 liter Catering garbage truck Top loading configuration: made of 4mm international plate Q235 high-quality steel, square tank body, flexible operation, hydraulic lifting and unloading, the front right side of the tank body has a bucket lifting mechanism to load and unload barreled garbage, and the back cover of the kitchen garbage truck can be hydraulic Open and lock, which is very convenient for customers.
Foton 5000 liter Catering garbage truck Specifications:
|GVW4495kg Driving Type 4×2|
Single cab, tilted
Power steering optional
|Wheels & tire||
|Garbage bin capacity(m3)||
|RHD or LHD||
|Curb weight (Kg)||
|Maximum output Kw||
|Maximum torque N.m||
4 cylinders ,4-stroke,in-line, water-cooled , diesel engine
|Quanchai brand, Euro 2 or Euro 3|
|Transmission||5 speed forward and one reverse, manual|
|Brake System||Oil brake|
|Color and LOGO||customized|
|Standard configuration||Bin lift system , garbage tank with dump function, hydraulic open rear door|
|Feature||High level of automation, reliable working ,well sealed , bulk loading ,easy control and good environmental protection.|
|Delivery date||Within 20 days after receipt advance|
|Packing||Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity.|
Foton 5000 liter Catering garbage truck Working parameter:
|【Vehicle technical parameters】|
|Tank volume (m3)||3-12 cubic meters optional||Tank material||Carbon steel Q235, stainless steel 304|
|Structure inside the tank||Dry-wet solid-liquid separation||Thickness of tank (mm)||4-6mm|
|Unloading method||Self-unloading, pushing plate, twisting dragon||Feeding method||Hydraulic bucket flip|
|Tailgate leakproof||Thickened rubber + hydraulic lock||Bucket method||Chain lifting, lever lifting|
|Control position||Cab, right side of body||Hydraulic pressure (MPa)||16|
|control method||Manual + electric control, PLC automatic control||Hydraulic pump brand||Long source and large flow|
|Cleaning device||Hydraulic pump + plunger high pressure pump + 7 meter cleaning gun||Multi-way valve brand||Jiangsu Electromagnetic|
|safety devices||Rear door lock and rear cover switch interlock to prevent misoperation||Hydraulic cylinder brand||Yantai future|
|Optional configuration||Optional PLC one-button operation, optional 304 stainless steel box, optional sealed twisted dragon discharge, etc.
Optional barrel weighing function, can count the number of barrels, single barrel weighing, set the company name of the barrel collection, GPS positioning of the barrel collection, data background upload, display screen cab monitoring and other functions.
If customers have other unconventional requirements, they can organize technical solutions and customize production according to requirements.
Foton 5000 liter Catering garbage truck Operation display:
Kitchen garbage Truck Round tank process: cylindrical tank body with tie rod hoist, double cylinder hydraulic lifting and self-unloading at the bottom of the tank body, hydraulic opening and locking of the tank tail door + manual locking device, solid and liquid separation device inside At the end of the tank, a liquid self-flow valve, a liquid level window, a tool box and a hand washing device are installed.
Foton 5000 liter Catering garbage truck New craft:
Foton 5000 liter Catering garbage truck Optional configuration：
Foton 5000 liter Catering garbage truck Detail drawing:
Customizable garbage truck models
