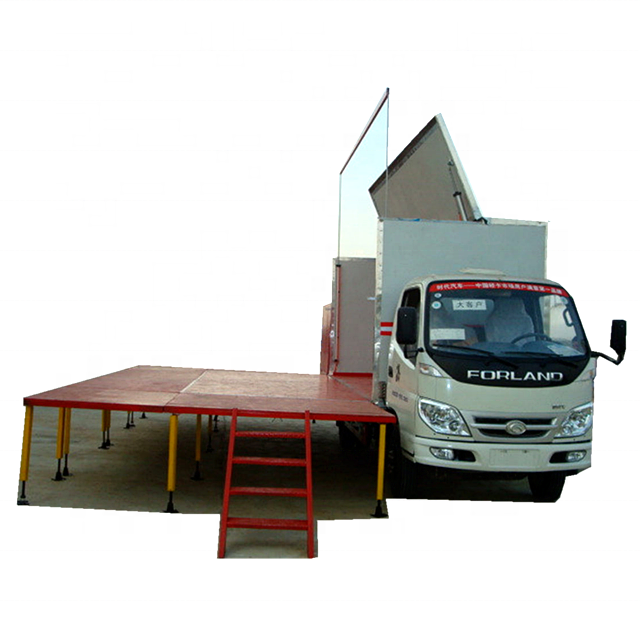

Foton 18㎡ to 24 ㎡ mini led stage truck Vehicle model: CLW5042XWTB5, vehicle size: 5995*2030*3250mm, cargo box size: 4150*2000*2050mm.
It can be modified into single-stage unfolding stage car, double-sided unfolding stage car, and three-sided unfolding stage car according to requirements, and can be equipped with screen, screen lifting, stage enlargement, stage guardrail, stage amplifier sound, stage lighting, sound effect device, U-band microphones, mixers, aerospace cabinets and other equipment.
1.The van roof is closed, and the truss structure, lifting, the two sides of the compartment plate can be unfolded, vehicle stage roof and ceiling;
2.Stage plate can be folded in carriages and installation exhibition was launched by fixed surface of the stage and formed vehicle surface of the stage;
3.Chassis beam part is provided with a supporting device.
4.The car is special vehicles of stage art performance. Side door using cold-formed steel / Q235, welded connections, door after using cold-formed steel / Q235, welded connections, after door section height of 100mm, cross-sectional width dimension of 50mm, edge height from the ground 490mm.
5.Remarks: LED screen is optional according to your needs.
Foton 18㎡ to 24 ㎡ mini led stage truck Specification:
|Vehicle name||Foton Shidai mobile stage car||Vehicle model||BJ5043XWT-A|
|Emission Standards||Eruo 3||Chassis model||BJ1043V9JEA-A|
|Environmental Notice||Have||Dimensions (mm)||5995*1940*2970|
|Fuel type||Diesel||Cargo compartment size (mm)||42 00×20 00 ×2380|
|Total mass (kg)||4495||Tire specifications||6.50-16 10 PR|
|Curb weight (kg)||3865||Rated passenger||2 (person)|
|Wheelbase (mm)||3360||Maximum speed (km/h)||95|
|engine model||4B2-95C40||Displacement (ml)||2540|
|Engine manufacturer||Anhui whole Chai shares Co., Ltd.||Power (kw)||70 ( 95 hp)|
|Lifting height at top||≈ 800mm-1300mm||The height between the top and the stage board after expansion||≈ 3300 mm|
|Stage opening length||≈ 6200 mm||Stage depth||≈ 40 00mm (width)|
|Main stage area||≈ 16 ㎡-36㎡||Stage area||≈ 6 ㎡|
|Cabinet material||Combined skeleton of aluminum profiles and stampings||Outer plate material||Cold rolled steel plate|
|Interior material||Waterproof plywood||Stage board||Waterproof, non-slip, fireproof ventral plywood|
|Cylinder||Poly Electromechanical||Tubing||Double exhibition steel wire tubing|
|Onboard||Light stand, curtain, hook, stage ladder, stage screen|
|Optional||High-precision LED high-definition color screen (P6, P5, P4, etc.)|
Stage vehicle Expand specifications：
Single-sided unfolding parameters: the stage depth is about 4500mm, the stage opening width is about 6600mm, the main stage area is about 16-20 square meters, and the auxiliary stage area is about 6-8 square meters. The total stage area is about 24-28 square meters.
Double-sided unfolding parameters: the stage depth is about 6300mm, the stage opening width is about 6600mm, the main stage area is about 24-28 square meters, and the auxiliary stage area is about 6-8 square meters. The total stage area is about 30-34 square meters.
Three-sided unfolding parameters: the stage depth is about 6000mm, the stage opening width is about 6000mm, the main stage area is about 30-34 square meters, and the secondary stage area is about 6-8 square meters. The total stage area is about 36-42 square meters.
