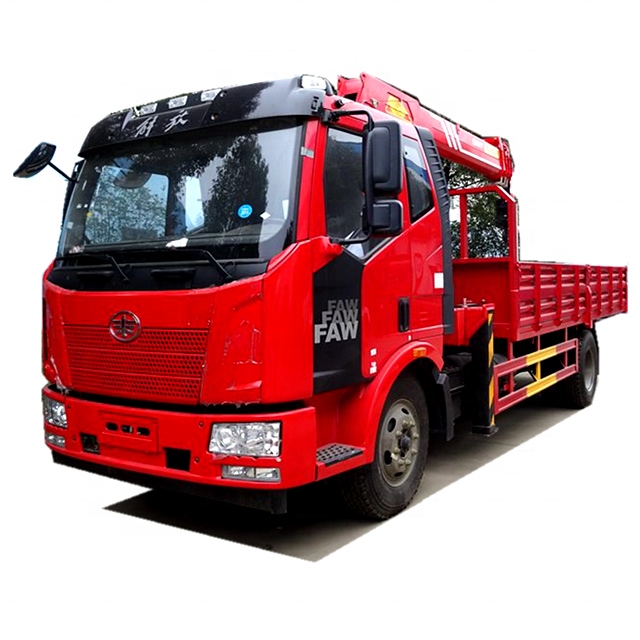

FAW 8 ton truck mounted crane
FAW 8 ton truck mounted crane Adopt Jiefang J6 row semi-flat roof cab, Dachai 180 horsepower engine, National V emission standard, FAW 6-speed gearbox, 378 cast rear axle, full-vehicle 9.00 steel tire, wheelbase 5000mm, cargo box standard can be 5.46 meters, optional It is equipped with manual telescopic or hydraulic telescopic cargo boxes, and the rear can be equipped with ladders, pull excavators, and multi-function vehicles.
Our company are professional manufacturer in truck area, guarantee all goods Brand-New and China-Origined.
1. Chassis Model: ISUZU,JAC,JMC,IVECO,Dongfeng,FAW,Foton,HOWO,North Benz and etc.
2. Engine Model:Cummins,Yuchai,Weichai,Xichai,Sinotruk and etc.
3. Drive Model: 4×2,4×4, 6×2,6×4,6×6, 8×4, and three axis crane semi-tailer
4. Crane rotation angle: 360° with hydraulic systems straight /folding boom crane max loading weight:2T,3.2T,4T,5T,6.3T,8T,10T,12T,14T,16T,20T, 30T, 60T, 150T,Two-arm, three-arm and four-arm are optional.
5. Cargo box’s length:3-13m.Widely used in oil fields, weighing and inspection, telecommunications, power, factories, cement board factories, etc.
FAW 8 ton truck mounted crane specification:
|Vehicle technical parameters|
|Vehicle Brands||FAW||Card type||Yellow card B photo|
|Adaptation crane||6.3 tons / 8 tons||Crane brand||CLW / Xugong|
|Boom form||Straight arm / folding arm||Cab||J6|
|engine||Dachai 180 horsepower||Gearbox||FAW 6 files|
|Dimensions||9×2.495×3.55 m||Total mass||15.6 tons|
|Container size||5.465×2.3×0.6 m||Curb quality||9.66 tons|
|Frame||300mm special girders||Tire model||9.00 wire tire|
|Axle||378 rear axle||Braking System||Air brake|
|Wheelbase||5000 (mm)||Number of passengers||3|
|Displacement||6060 (ml)||Maximum speed||102 (km/h)|
|Liberation of Sany 7 tons / 8 tons truck crane parameters|
|Trinity 7 tons four-section arm||Trinity 8 tons four-section arm||Xugong 6.3 tons four-section arm||Xugong 8 tons four-section arm|
|Lifting capacity (kg)||7000||8000||6300||8000|
|Farest lifting weight(kg)||690||800||600||1100|
|Working radius (m)||12||14||11||11.5|
|Lifting height (m)||14.6||16.1||12.8||13.5|
|Crane weight (kg)||2650||3820||2290||3315|
|Leg span (mm)||2280-5200||2280-5600||2280-5100||2280-5580|
|Swing angle||360 degree full swing||360 degree full swing||360 degree full swing||360 degree full swing|
