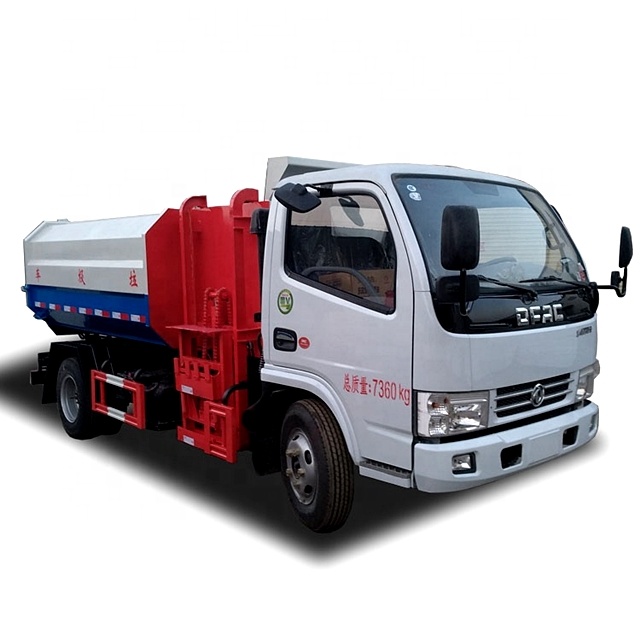

Dongfeng 5m3 hanging bucket garbage truck Product Description:
Dongfeng 5m3 hanging bucket garbage truck Chassis configuration: Dongfeng D6 series cab, 3300mm wheelbase, Chaochai 95hp Euro III diesel engine, 5-speed gearbox, 7.00 tires, 3.5-ton rear axle, air brake, power steering.
Dongfeng 5m3 hanging bucket garbage truck Top-loading configuration: The bucket-type garbage truck uses a chain and hydraulic cylinder linkage device to realize the lifting and turning of the garbage hopper, automatically collect the garbage in multiple garbage hoppers into the car, and dump it to the destination at one time. Self loading and unloading function, hydraulic operation.
The bucket-type garbage truck is a vehicle that can be equipped with dozens of garbage bins. It can realize the joint operation of one vehicle and multiple garbage bins. The circular transportation fully improves the transportation capacity of the vehicle. It is especially suitable for short-distance transportation. Composed of compartment, hydraulic system and operating system.
The lifting oil cylinder (2 pcs) garbage box can be lifted and laid down, the next working cycle time ≤50S. For example, the sanitation department cleans and transports urban garbage. It is applicable to the garbage cans of the national general standards: iron drums, plastic drums, and a large supply of garbage hanging bins.
Dongfeng 5m3 hanging bucket garbage truck Specifications:
|Vehicle Type||Dongfeng 5cbm bucket garbage truck||Dustbin volume||5 cubic|
|Hoist matching||240L / 360L trash can||Self-unloading method||Center jacking|
|Total quality||7350kg||Rated mass||3575,3640kg|
|Curb quality||3580kg||Maximum speed||90km / h|
|Fuel type||Diesel||Emission Standards||Country Ⅴ|
|Chassis model||Dongfeng EQ1070||engine model||Asahi / CY4BK551|
|Engine horsepower||Chaochai 102 (optional Yuchai)||Displacement||3707mL|
|East side hanging bucket garbage truck 5 by the sealed garbage car, lift structure, a hydraulic system, hydraulic lifting structure, operating system components; east side hanging bucket 5 garbage truck center Lift cylinder oil system (2), the elevator may be The trash can is hung up and down, the next working cycle time is ≤50S , and the loading and unloading work can be completed by operating the handle of the multi-way directional valve.|
Dongfeng 5m3 hanging bucket garbage truck Working parameter:
|Optional volume||3-15 cubic||Bucket time||Less than 10 seconds|
|Bucket type||Plastic bucket or iron bucket||Unloading time||Less than 15 seconds|
|Hanging bucket size||120 liters, 240 liters||Operating position||Car right|
Dongfeng 5m3 hanging bucket garbage truck Operation display:
Dongfeng 5m3 hanging bucket garbage truck detailed images:
Dongfeng 5m3 hanging bucket garbage truck Structure diagram：
Dongfeng 5m3 hanging bucket garbage truck Detail drawing:
