Dongfeng 5m3 garbage trucks Product Description:
Dongfeng 5m3 garbage trucks adopts electromechanical-hydraulic integration technology, with the help of machine, electricity, and liquid automatic control system, through special equipment such as car compartment, filler and push shovel, to achieve garbage pouring, crushing or flattening, Powerful filling, squeezing garbage into the carriage and compacting and unloading. Its main features are simple and efficient garbage collection method, with automatic repeated compression and peristaltic compression functions, high compression ratio, large loading quality, automatic operation, good power and environmental protection, and high vehicle utilization efficiency.
Chassis configuration: The car uses Doric D6 series, Euro III emissions, fat jade white, 3308, cab 1730 single row, Chaochai 95 horsepower engine, 5A100 (5TS40), front axle 1.8 / rear axle 3.5T, 190, plate Spring 6/6 + 5, 7.00 tires.
Top-loading configuration: new ribless box, flat arc with beautiful appearance, effective compression volume of 4-5 cubic meters, tail with reversing feeding mechanism, electronically controlled manual dual control system, double control box for cab and rear of the car, tail with 3 Centimeter rubber seal bead, with sewage collection tank, large capacity dirt, the box can be sprayed with patterns and words as required.
Dongfeng 5m3 garbage trucks Specifications:
|Dongfeng 5CBM Garbage Compactor Truck|
|Overall Dimension||6220×2050×2570 mm||Gross Vehicle Weight||7360 kg|
|Curb Weight||5400 kg||Loading Weight||1830 kg|
|Wheel Base||3308 mm||Front / Rear Axle||5000 kg / 10000kg|
|Cabin||Left/right Hand Driving, 2 Passengers Allowed, with Air Conditioner, Radio,|
|Engine horsepower95||HP, EURO II|
|Max Driving Speed||90 km/h|
|Gear Box||5 Forward Gear, 1 Reverse Gear,|
|Tire||7.00R16 (6 pieces with one spare)|
|Material||4mm Carbon Steel for Garbage Bin Body|
|Design||Whole unit with Leakage Proof Design|
|Ways of Loading||Rear Loading with optional Bucket Lifting System|
|Garbage Compact Ratio||1/3 – 1/4|
|Control System||One control Panel on the back, One Control system in back of Cabin|
|Dispensing System||1. Equipped with air-tight dustbin, hydraulic system and operating system.|
|2. Automatic loading, compressing and discharging, all handled by 1 person|
|3. Sewage water collection tank to avoid any pollution during handling.|
|4. Large Pressure, Good Leakage Proof, Convenient Operation|
|5. Electrical Control Panel for compacting system.|
|6. Cycling time<14~18s|
|Remarks||1. Color is optional|
|2. Customized LOGO painting as per customer request|

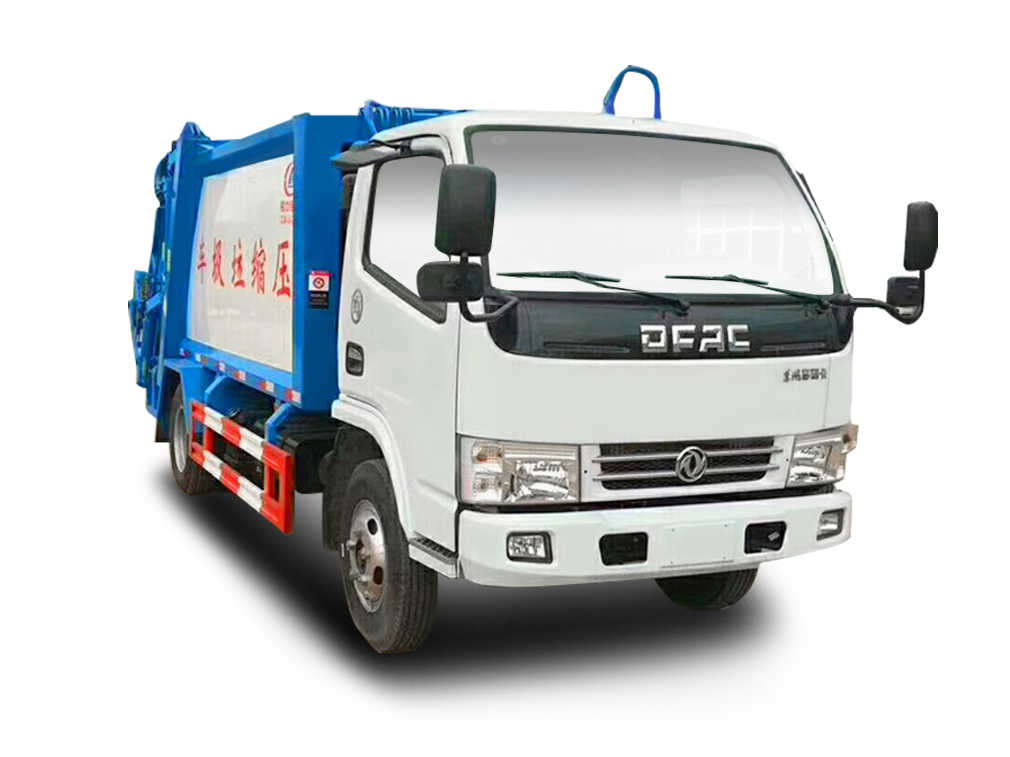

Dongfeng 5m3 garbage trucks Detailed Images:
Dongfeng 5m3 garbage trucks Structure diagram：
Dongfeng 5m3 garbage trucks Detail drawing:
Customizable garbage truck models
