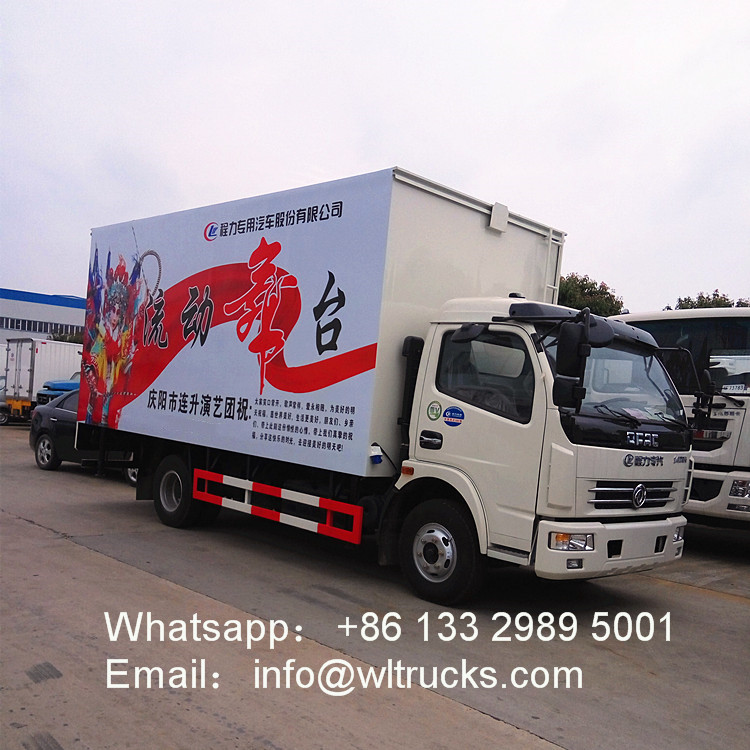

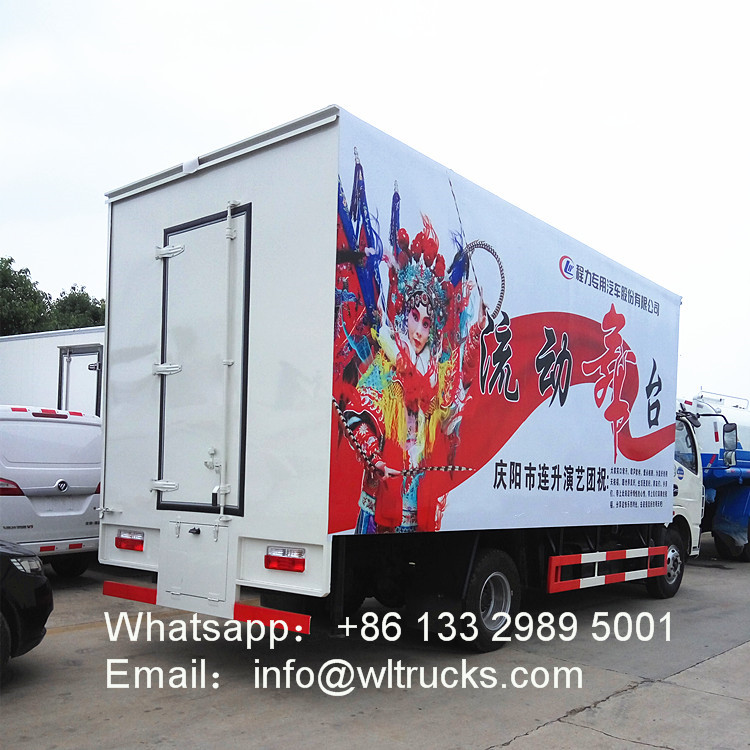

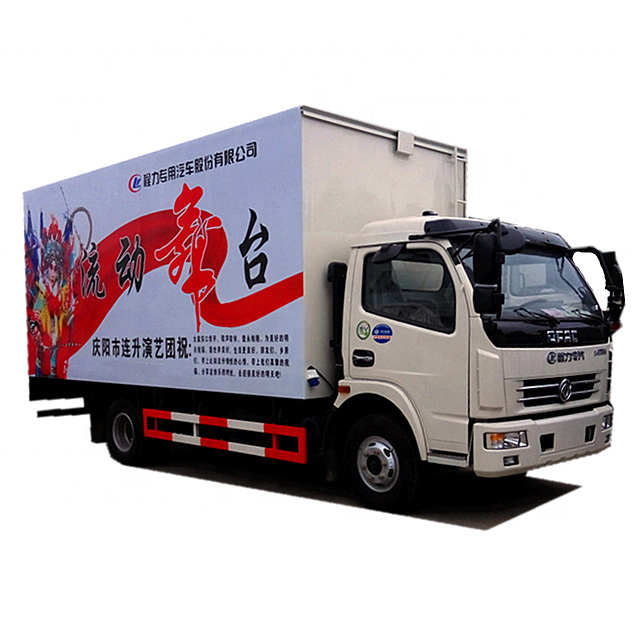

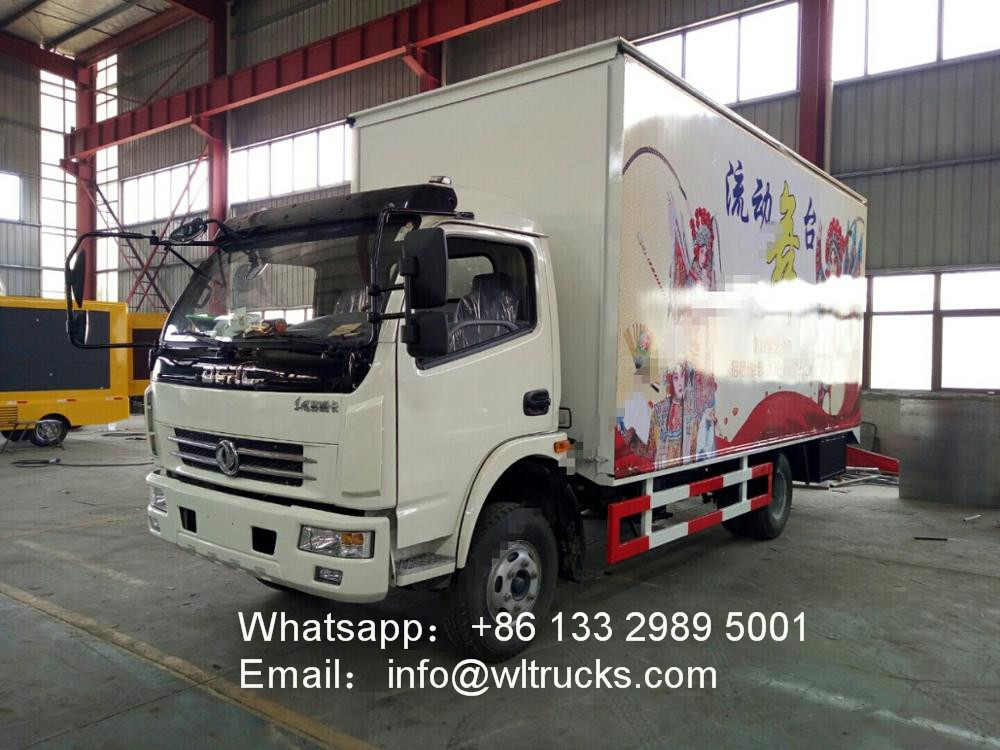

Dongfeng 32 square meters mobile stage truck Vehicle model: CLW5080XWTDFA, vehicle size: 7000 * 2350 * 3380mm, cargo box size: 5200 * 2330 * 2300.Eruo Chaochai 120hp engine.
It can be modified into single-stage unfolding stage car, double-sided unfolding stage car, and three-sided unfolding stage car according to requirements, and can be equipped with screen, screen lifting, stage enlargement, stage guardrail, stage amplifier sound, stage lighting, sound effect device, U-band microphones, mixers, aerospace cabinets and other equipment.
1.The van roof is closed, and the truss structure, lifting, the two sides of the compartment plate can be unfolded, vehicle stage roof and ceiling;
2.Stage plate can be folded in carriages and installation exhibition was launched by fixed surface of the stage and formed vehicle surface of the stage;
3.Chassis beam part is provided with a supporting device.
4.The car is special vehicles of stage art performance. Side door using cold-formed steel / Q235, welded connections, door after using cold-formed steel / Q235, welded connections, after door section height of 100mm, cross-sectional width dimension of 50mm, edge height from the ground 490mm.
5.Remarks: LED screen is optional according to your needs.
Dongfeng 32 square meters mobile stage truck Specification:
|Vehicle name:||3800 Dongfeng Duolika Mobile Stage Car||Vehicle model:||CLW5080XWTDFA|
|Emission Standards:||Eruo 3 5||Chassis model:||DFA1080SJ12D3|
|Curb weight: (kg)||6070||Vehicle size (mm):||7000 * 2350 * 3380|
|Rated quality: (kg)||2010||Cargo compartment size (mm):||5200 * 2330 * 2300|
|Number of tires:||6||Rated passengers:||2,3 people (including driver)|
|Tire specifications:||7.50-16, 8.25-16||Maximum speed (km/h):||99|
|Main stage area:||≈ 32 ㎡||Sub-stage area:||≈ 3 ㎡ *2|
|Top lift height:||≈ 1800mm||Dance platen height from the top:||≈4100mm|
|Stage height from the ground:||≈1200mm||The height of the ground from the top:||≈5800mm|
|Number of hydraulic cylinders:||8-17||screen:||2 pieces|
|Stage legs:||4||Stage legs:||10-20 folding legs|
|Stage board material:||Non-slip stage board, special bamboo rubber board||Cabinet skeleton:||50mm-70mm|
|Expanding method:||Double-sided unfolding||Expanding power:||Fully automatic hydraulic deployment|
|Stage opening width:||≈ 4800-7800mm||Stage depth:||≈ 6500mm|
|Stage opening time:||5-8 minutes||Stage closing time:||5-8 minutes|

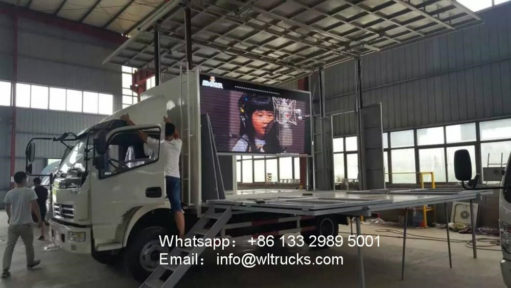

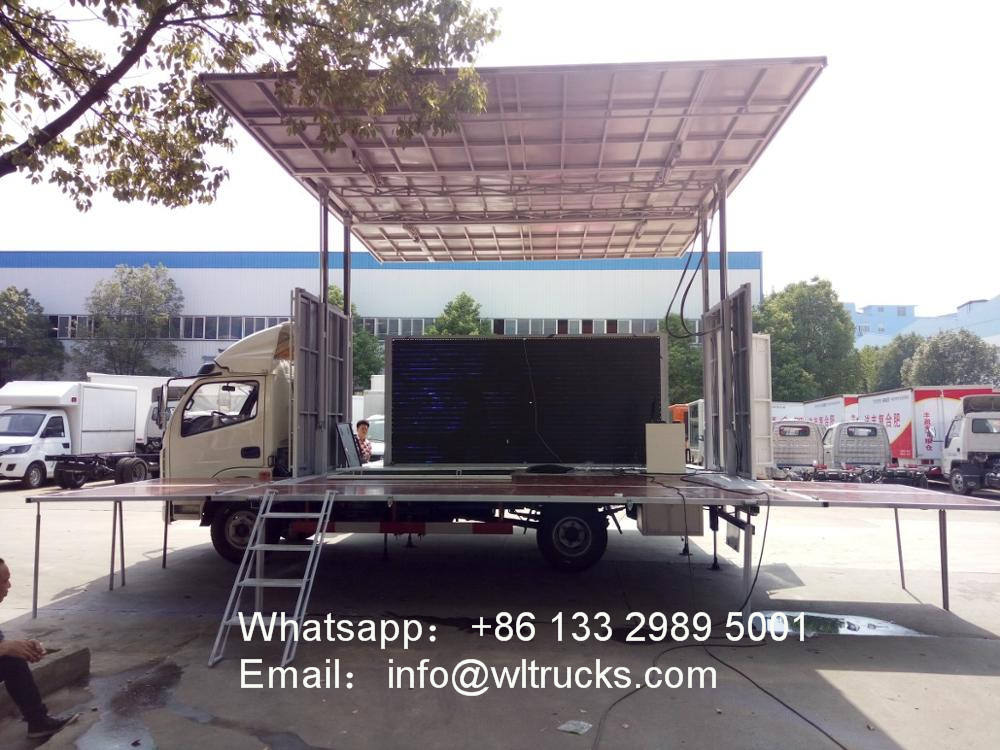

Stage vehicle Expand specifications：
Stage car modification style picture:
Led Stage vehicle Field of use:
Stage screen truck Composition structure:
